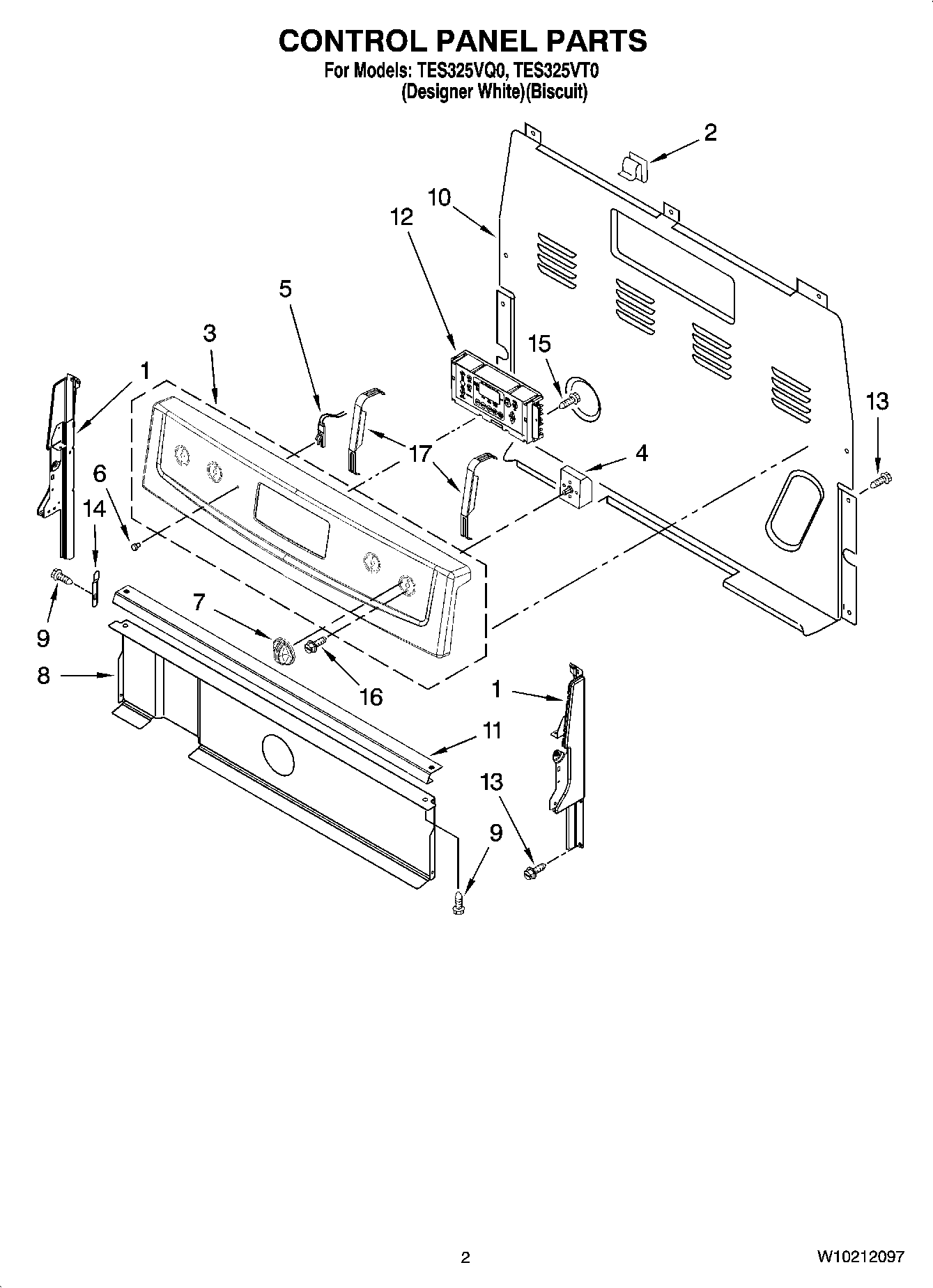

TES325VQ0 02 – CONTROL PANEL PARTS

TES325VQ0 02 – CONTROL PANEL PARTS

Written by

in

TES325VQ0 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Endcap (Biscuit Left Hand)
1W11230612 Whirlpool Panel End Cap
1W11219370 Whirlpool Endcap Panel
1W11219365 Whirlpool Panel Endcap
2WP8273564 Whirlpool Clip
3Panel, Control (Biscuit)
3Panel, Control (White)
4WP3149400 Whirlpool Oven Infinite Switch
4WP3148952 Whirlpool Oven Infinite Switch
5WP8523265 Whirlpool Indicator Light
6WP3196068 Whirlpool Light Lens
7Knob, Infinite (4) (Biscuit)
7WPW10203524 Whirlpool Knob
8Shield, Heat
93196166 Whirlpool Screw
10WP8272473 Whirlpool Rear Cover
11W10525121 Whirlpool Control Bracket
12WPW10173537 Whirlpool Electronic Control Board
12WPW10173539 Whirlpool Electronic Control Board
13SCREW
143196200 Whirlpool Clip
15WP3196557 Whirlpool Screw
16WP3400882 Whirlpool Screw
17W11230932 Whirlpool Bracket Mounting
