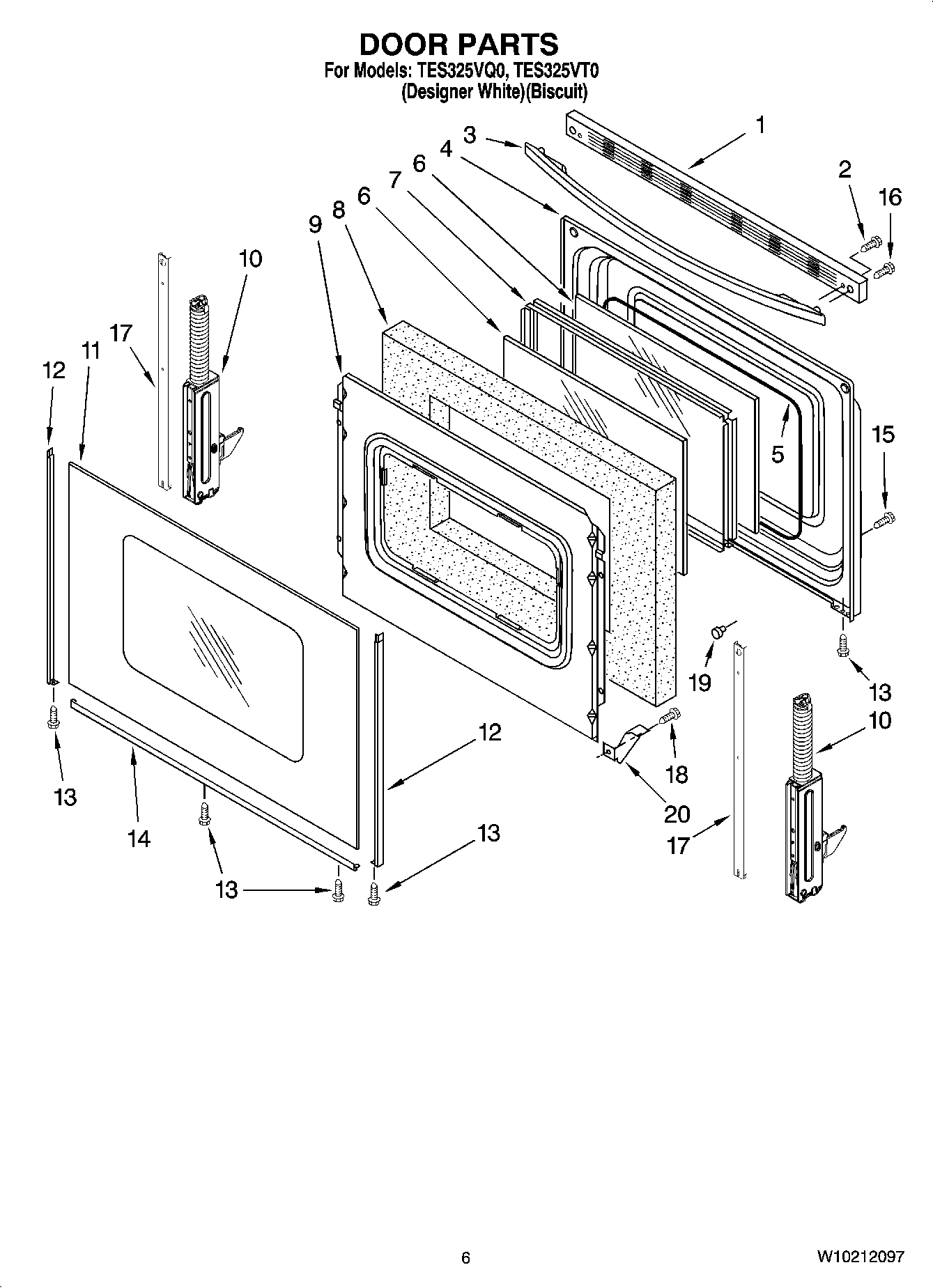

TES325VQ0 05 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

TES325VQ0 05 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

TES325VQ0 05 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
350930 Whirlpool White Spray Paint
WPL ARI131178A
WPL ARI131177A
W11447673 Whirlpool Range Tip Anchor
W10251772 Whirlpool Wire Harness
W11244557 Whirlpool Screw
W11172524 Whirlpool Wire Harness
Clip, Ground Wire
W11396691 Whirlpool Element Receptacle and Wire Kit
WPL ARI131182A
8212471 Whirlpool Oven Paint
3184020 Whirlpool Oven Wire
Grease
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
WPL ARI131179A
4396923 Whirlpool Broil Pan Set Gray Porcelain
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
WPL ARI131181A
350942 Whirlpool Spray Paint
4392899 Whirlpool Biscuit Touch-Up Paint
WP3196154 Whirlpool Screw Assembly
4392901 Whirlpool Biscuit Spray Paint
511873 Whirlpool Refrigerator Paint
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
FOIL, ALUMINUM OVEN (18“ X 25 )
WPL 799832
WPW10208653 Whirlpool Insulation
WPL ARI131180A
1WPW10016370 Whirlpool Door Trim
1Trim, Top (Biscuit)
2Screw
3Handle, Door (Biscuit)
3WPW10202216 Whirlpool Door Handle
49761340 Whirlpool Oven Door Liner
58522415 Whirlpool Oven Wind Gasket
6WP9758164 Whirlpool Door Glass
7Frame, Glass
8WPW10278991 Whirlpool Insulation
99761499 Whirlpool Oven Retainer
10W10347466 Whirlpool Door Hinge
11WP9762476 Whirlpool Door Glass
11Glass, Outer (Biscuit)
12WP8523166 Whirlpool Door Trim
12WP8523167 Whirlpool Door Trim Assembly
12WP8523172 Whirlpool Left Door Trim
12WP8523173 Whirlpool Door Trim
13W10491985 Whirlpool Screw
14WP8523177 Whirlpool Door Trim Assembly
14WP8523175 Whirlpool Door Trim Assembly
15WPW10031790 Whirlpool Screw
16WPW10200660 Whirlpool Range Oven Door Handle Screw
17W11502236 Whirlpool Door Trim
18WP3196175 Whirlpool Screw
19238614 Whirlpool Bumper Hinge
20W10137382 Whirlpool Clip
