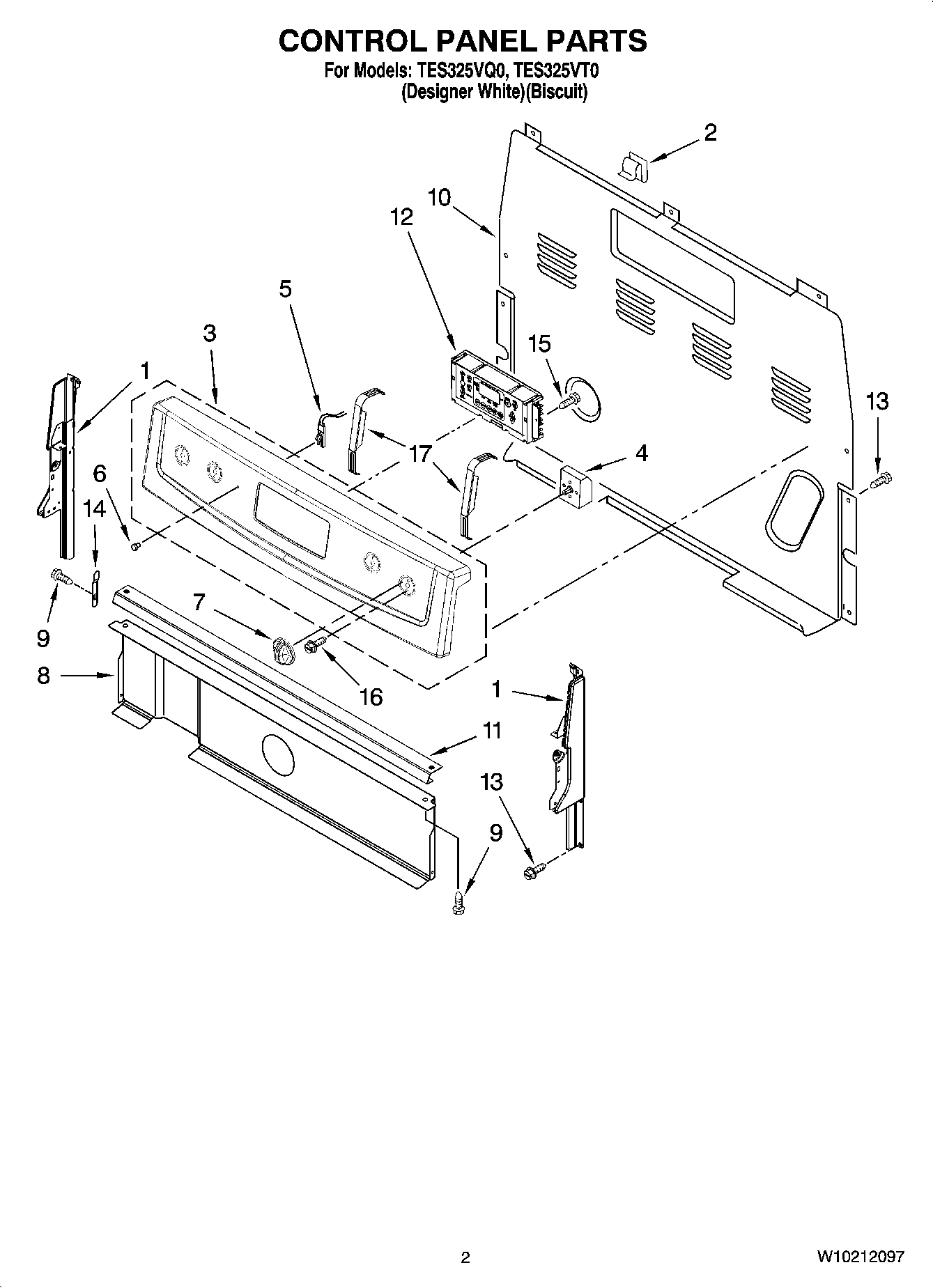

TES325VT0 02 – CONTROL PANEL PARTS

Products

Position	Product
1	Endcap (Biscuit Left Hand)
1	W11230612 Whirlpool Panel End Cap
1	W11219370 Whirlpool Endcap Panel
1	W11219365 Whirlpool Panel Endcap
2	WP8273564 Whirlpool Clip
3	Panel, Control (Biscuit)
3	Panel, Control (White)
4	WP3149400 Whirlpool Oven Infinite Switch
4	WP3148952 Whirlpool Oven Infinite Switch
5	WP8523265 Whirlpool Indicator Light
6	WP3196068 Whirlpool Light Lens
7	Knob, Infinite (4) (Biscuit)
7	WPW10203524 Whirlpool Knob
8	Shield, Heat
9	3196166 Whirlpool Screw
10	WP8272473 Whirlpool Rear Cover
11	W10525121 Whirlpool Control Bracket
12	WPW10173537 Whirlpool Electronic Control Board
12	WPW10173539 Whirlpool Electronic Control Board
13	SCREW
14	3196200 Whirlpool Clip
15	WP3196557 Whirlpool Screw
16	WP3400882 Whirlpool Screw
17	W11230932 Whirlpool Bracket Mounting
