TES326RD2 01 – COOKTOP PARTS

TES326RD2 01 – COOKTOP PARTS

Written by

in

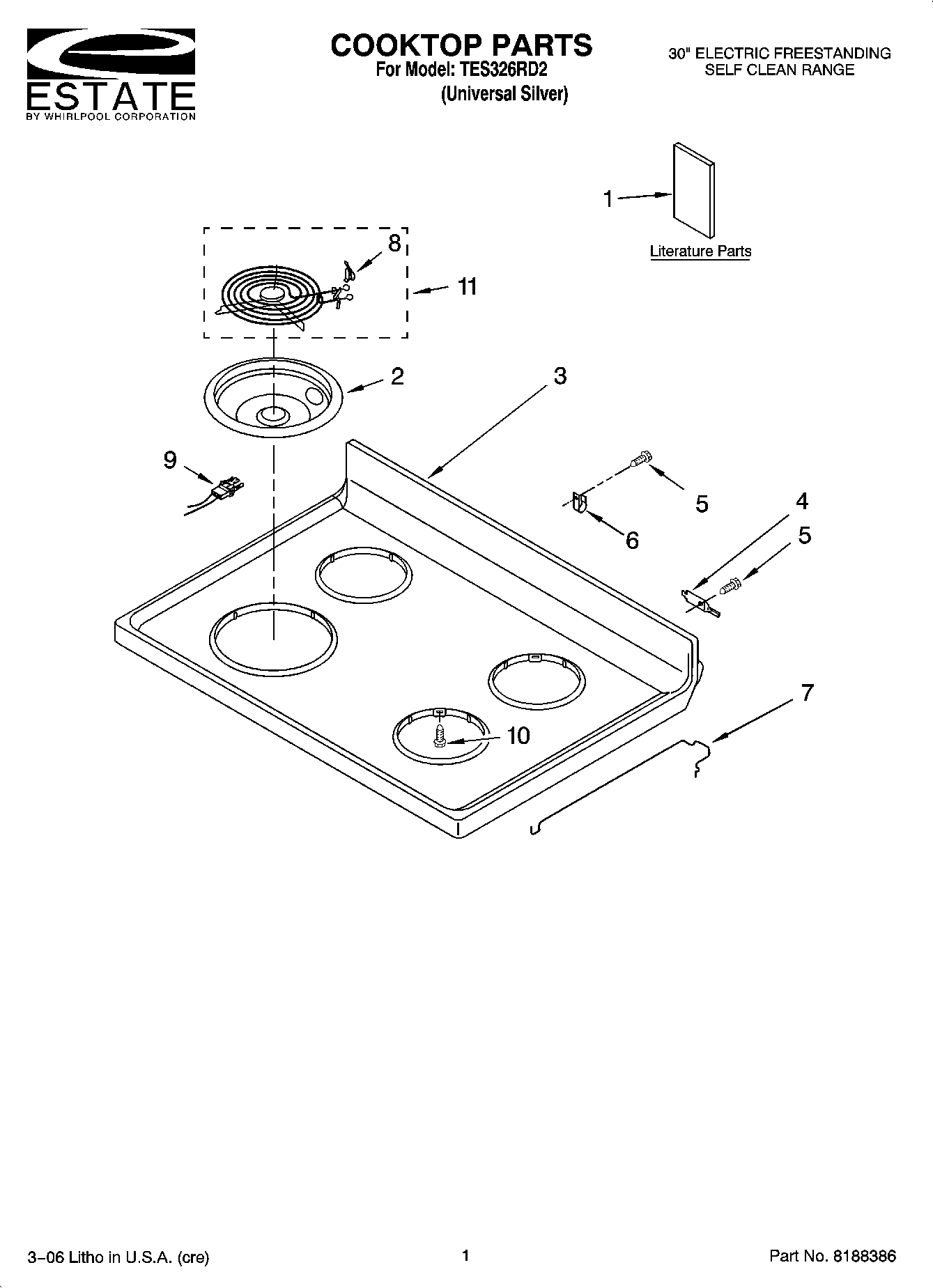

TES326RD2 01 – COOKTOP PARTS

Products

PositionProduct
1Guide, Use & Care
1Anti-Tip Template (English/French)
1Anti-Tip Template (English/Spanish)
1Installation Instructions Anti-Tip Template
1SAFER COOKING TIPS (ENGLISH
1Tech Sheet
2WPW10196406 Whirlpool 6" Chrome Drip Bowl
2DRIP BOWL 8" W/HOLE CHROME
38195534 Whirlpool Cooktop
4WP3195060 Whirlpool Cooktop Pin
5SCREW
6WP308605 Whirlpool Refrigerator Clamp
7WP3195812 Whirlpool Cooktop Rod
8WP3195917 Whirlpool Clip Assembly
9814399 Whirlpool Receptacle Kit
10WP3196154 Whirlpool Screw Assembly
11WP660532 Whirlpool Oven Surface Element
11WPW10259865 Whirlpool Range 8" Surface Element
