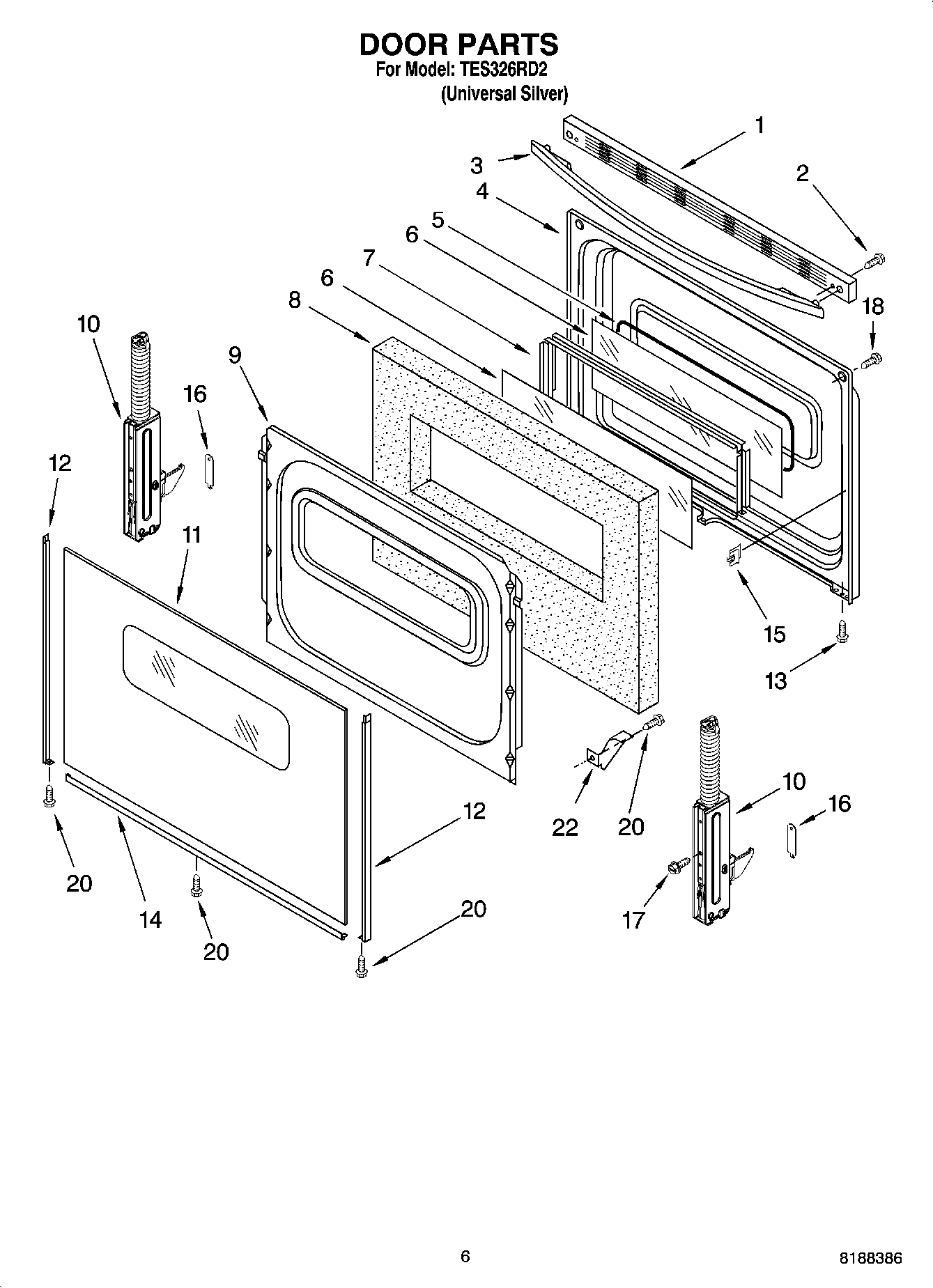

TES326RD2 05 – DOOR PARTS, OPTIONAL PARTS

TES326RD2 05 – DOOR PARTS, OPTIONAL PARTS

Written by

in

TES326RD2 05 – DOOR PARTS, OPTIONAL PARTS

Products

PositionProduct
WPL ARI131217A
8212471 Whirlpool Oven Paint
W11244557 Whirlpool Screw
Wire (14 Ga. 200 c Brown)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
242831 Whirlpool Oven Wire
Grease
WP3196154 Whirlpool Screw Assembly
WPL ARI131216A
WPL ARI131215A
WPL ARI131214A
WPL ARI131213A
WPL ARI131212A
WPL ARI131211A
WPL 9758173
Harness, Wire (Pyro Rocker)
W11396691 Whirlpool Element Receptacle and Wire Kit
WPL ARI131218A
3184020 Whirlpool Oven Wire
WPW10208653 Whirlpool Insulation
WPL 799832
FOIL, ALUMINUM OVEN (18“ X 25 )
4396923 Whirlpool Broil Pan Set Gray Porcelain
511873 Whirlpool Refrigerator Paint
350942 Whirlpool Spray Paint
Wire, 25` Roll (Red 14 Ga.)
Almond (Uncut)
WP72107 Whirlpool Touchup
799344 Whirlpool Refrigerator Paint
285006 Whirlpool Spray
Clip, Ground Wire
350930 Whirlpool White Spray Paint
350956 Whirlpool Spray Assembly
72017 Whirlpool Appliance Touch-Up Paint White
W11447673 Whirlpool Range Tip Anchor
814381 Whirlpool Pin
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
1Trim, Top (Black and S.Steel Models)
2WP3196164 Whirlpool Screw
3WPW10202217 Whirlpool Door Handle
4WP9761344 Whirlpool Door Liner
5Seal, Window
6WP8053948 Whirlpool Door Glass
7WPW10316950 Whirlpool Window Frame
8WPW10278991 Whirlpool Insulation
9W11539580 Whirlpool Retainer
10W10347464 Whirlpool Door Hinge
11Glass, Outer Door
12W10761018 Whirlpool Dishwasher Left Door Trim
12W10761014 Whirlpool Right Door Trim
13W10491985 Whirlpool Screw
14WP8523180 Whirlpool Door Trim Assembly
15Clip, Glass (4)
169761517 Whirlpool Oven Clip Assembly
17WPW10031790 Whirlpool Screw
18W10777162 Whirlpool Screw
20WP3196175 Whirlpool Screw
22WP3196794 Whirlpool Glass Bracket
