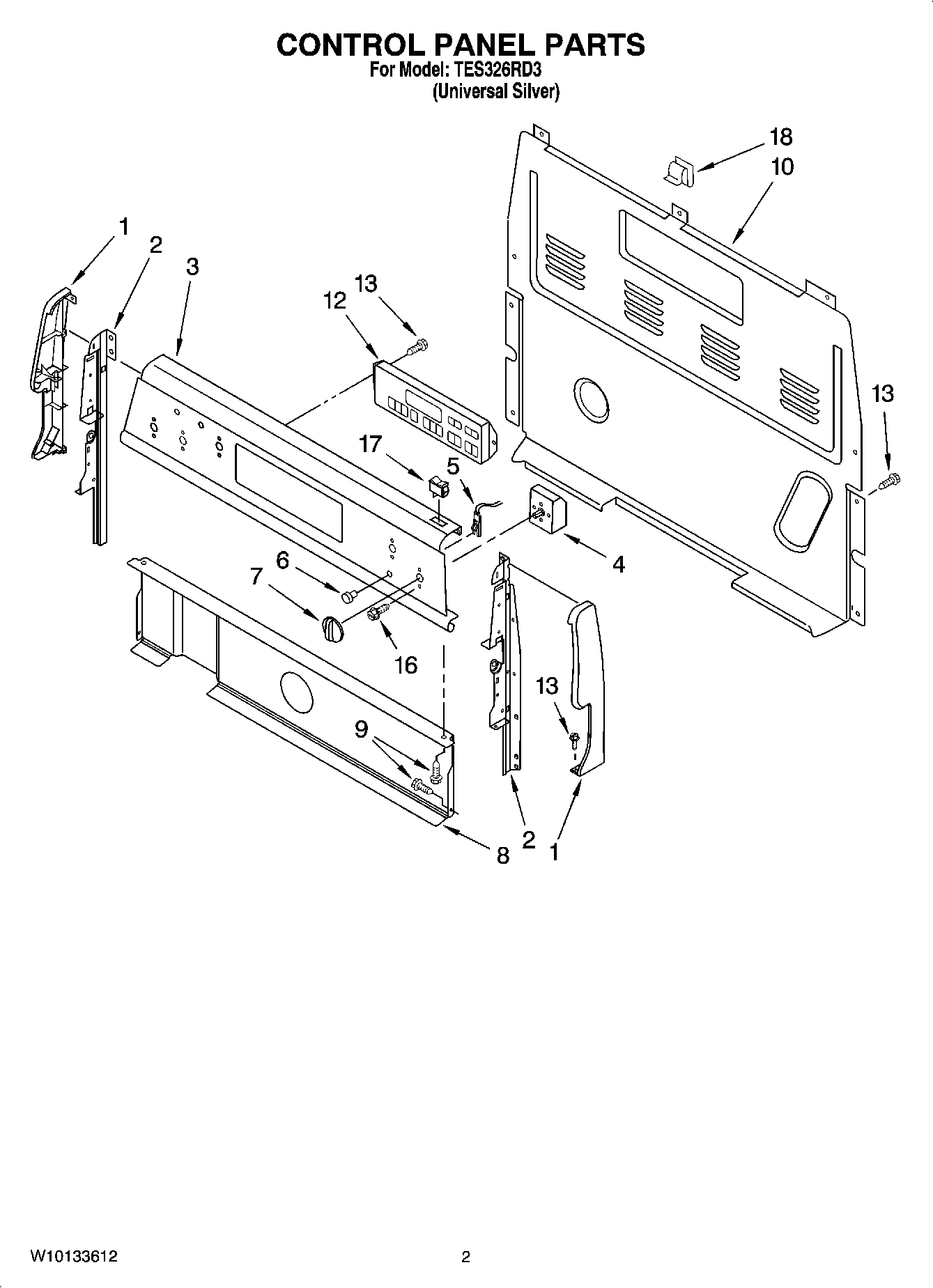

TES326RD3 02 – CONTROL PANEL PARTS

TES326RD3 02 – CONTROL PANEL PARTS

Written by

in

TES326RD3 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Endcap, Right Hand (Black)
1Endcap (Black Left Hand)
2Support, Endcap (Right Hand)
2Support, Endcap (Left Hand)
3Panel, Console
4WP3148952 Whirlpool Oven Infinite Switch
4WP3149400 Whirlpool Oven Infinite Switch
5WP8523265 Whirlpool Indicator Light
6WP3196068 Whirlpool Light Lens
7WP3196231 Whirlpool Knob
8Shield, Heat
9Screw
10WP8272473 Whirlpool Rear Cover
12WP6610456-includeCORE Whirlpool WP6610456 Washer Electronic Control Board + Core
13SCREW
16WP3400882 Whirlpool Screw
17WP4314961 Whirlpool Lite Switch
18WP8273564 Whirlpool Clip
