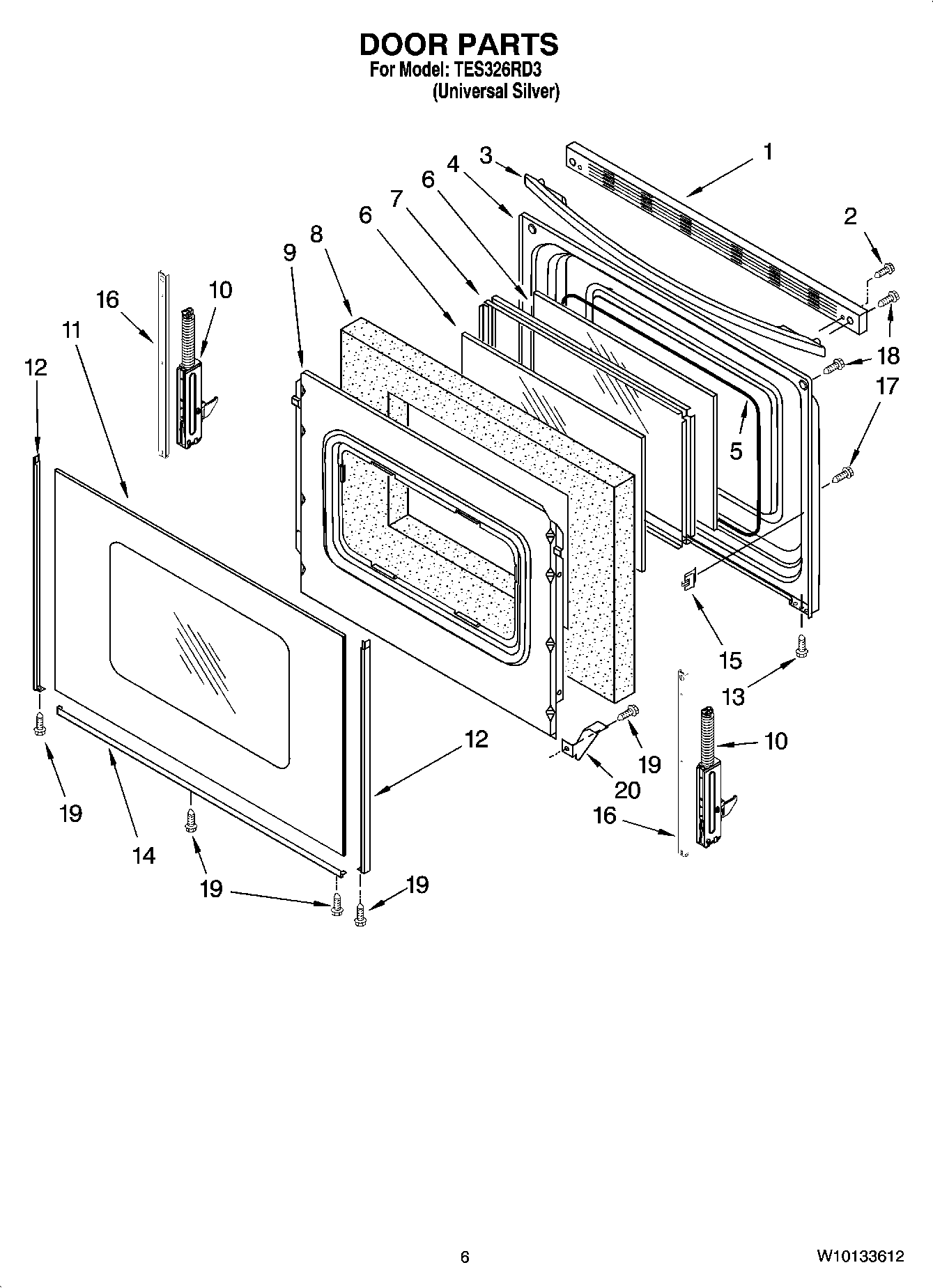

TES326RD3 05 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

TES326RD3 05 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

TES326RD3 05 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
WPL ARI131225A
W11244557 Whirlpool Screw
Wire (14 Ga. 200 c Brown)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
242831 Whirlpool Oven Wire
8212471 Whirlpool Oven Paint
Grease
WP3196154 Whirlpool Screw Assembly
WPL ARI131224A
WPL ARI131223A
WPL ARI131222A
WPL ARI131221A
WPL ARI131220A
WPL 9758173
Harness, Wire (Pyro Rocker)
W11396691 Whirlpool Element Receptacle and Wire Kit
WPL ARI131226A
3184020 Whirlpool Oven Wire
WPL 799832
511873 Whirlpool Refrigerator Paint
WPW10208653 Whirlpool Insulation
FOIL, ALUMINUM OVEN (18“ X 25 )
4396923 Whirlpool Broil Pan Set Gray Porcelain
350942 Whirlpool Spray Paint
Almond (Uncut)
WP72107 Whirlpool Touchup
Wire, 25` Roll (Red 14 Ga.)
799344 Whirlpool Refrigerator Paint
285006 Whirlpool Spray
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
W11447673 Whirlpool Range Tip Anchor
72017 Whirlpool Appliance Touch-Up Paint White
350930 Whirlpool White Spray Paint
350956 Whirlpool Spray Assembly
Clip, Ground Wire
1Trim, Top (Black and S.Steel Models)
2WP3196164 Whirlpool Screw
3WPW10202217 Whirlpool Door Handle
4WP9761344 Whirlpool Door Liner
5Seal, Window
6WP8053948 Whirlpool Door Glass
7WPW10316950 Whirlpool Window Frame
8WPW10278991 Whirlpool Insulation
9W11539580 Whirlpool Retainer
10W10347464 Whirlpool Door Hinge
11Glass, Outer Door
12W10761014 Whirlpool Right Door Trim
12W10761018 Whirlpool Dishwasher Left Door Trim
13W10491985 Whirlpool Screw
14WP8523180 Whirlpool Door Trim Assembly
15Clip, Glass (4)
16W11502236 Whirlpool Door Trim
17WPW10031790 Whirlpool Screw
18W10777162 Whirlpool Screw
19WP3196175 Whirlpool Screw
20WP3196794 Whirlpool Glass Bracket
