TES326RD4 05 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

TES326RD4 05 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

TES326RD4 05 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
WPL ARI131234A
W11244557 Whirlpool Screw
Wire (14 Ga. 200 c Brown)
Grease
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
8212471 Whirlpool Oven Paint
3184020 Whirlpool Oven Wire
WP3196154 Whirlpool Screw Assembly
WPL ARI131233A
WPL ARI131232A
WPL ARI131231A
WPL ARI131230A
WPL ARI131229A
WPL 9758173
Harness, Wire (Pyro Rocker)
W11396691 Whirlpool Element Receptacle and Wire Kit
WPL ARI131228A
242831 Whirlpool Oven Wire
FOIL, ALUMINUM OVEN (18“ X 25 )
WPW10208653 Whirlpool Insulation
WPL 799832
Almond (Uncut)
4396923 Whirlpool Broil Pan Set Gray Porcelain
WP72107 Whirlpool Touchup
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
Wire, 25` Roll (Red 14 Ga.)
285006 Whirlpool Spray
511873 Whirlpool Refrigerator Paint
Clip, Ground Wire
350930 Whirlpool White Spray Paint
350956 Whirlpool Spray Assembly
W11447673 Whirlpool Range Tip Anchor
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
350942 Whirlpool Spray Paint

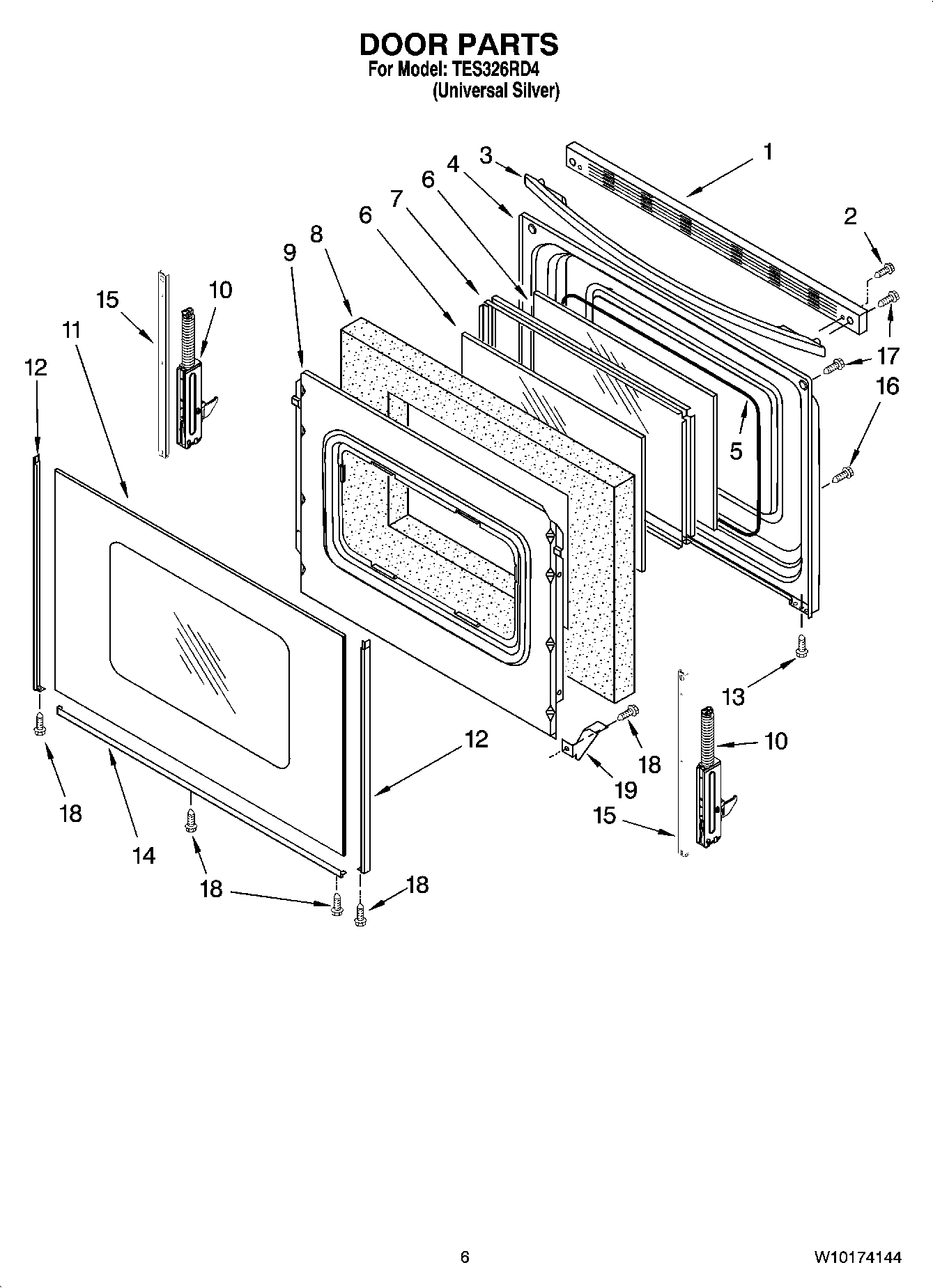

1Trim, Top (Black and S.Steel Models)
2WP3196164 Whirlpool Screw
3WPW10202217 Whirlpool Door Handle
4WP9761344 Whirlpool Door Liner
5Seal, Window
6WP8053948 Whirlpool Door Glass
7WPW10316950 Whirlpool Window Frame
8WPW10278991 Whirlpool Insulation
9W11539580 Whirlpool Retainer
10W10347464 Whirlpool Door Hinge
11Glass, Outer Door
12W10761014 Whirlpool Right Door Trim
12W10761018 Whirlpool Dishwasher Left Door Trim
13W10491985 Whirlpool Screw
14WP8523180 Whirlpool Door Trim Assembly
15W11502236 Whirlpool Door Trim
16WPW10031790 Whirlpool Screw
17W10777162 Whirlpool Screw
18WP3196175 Whirlpool Screw
19WP3196794 Whirlpool Glass Bracket
