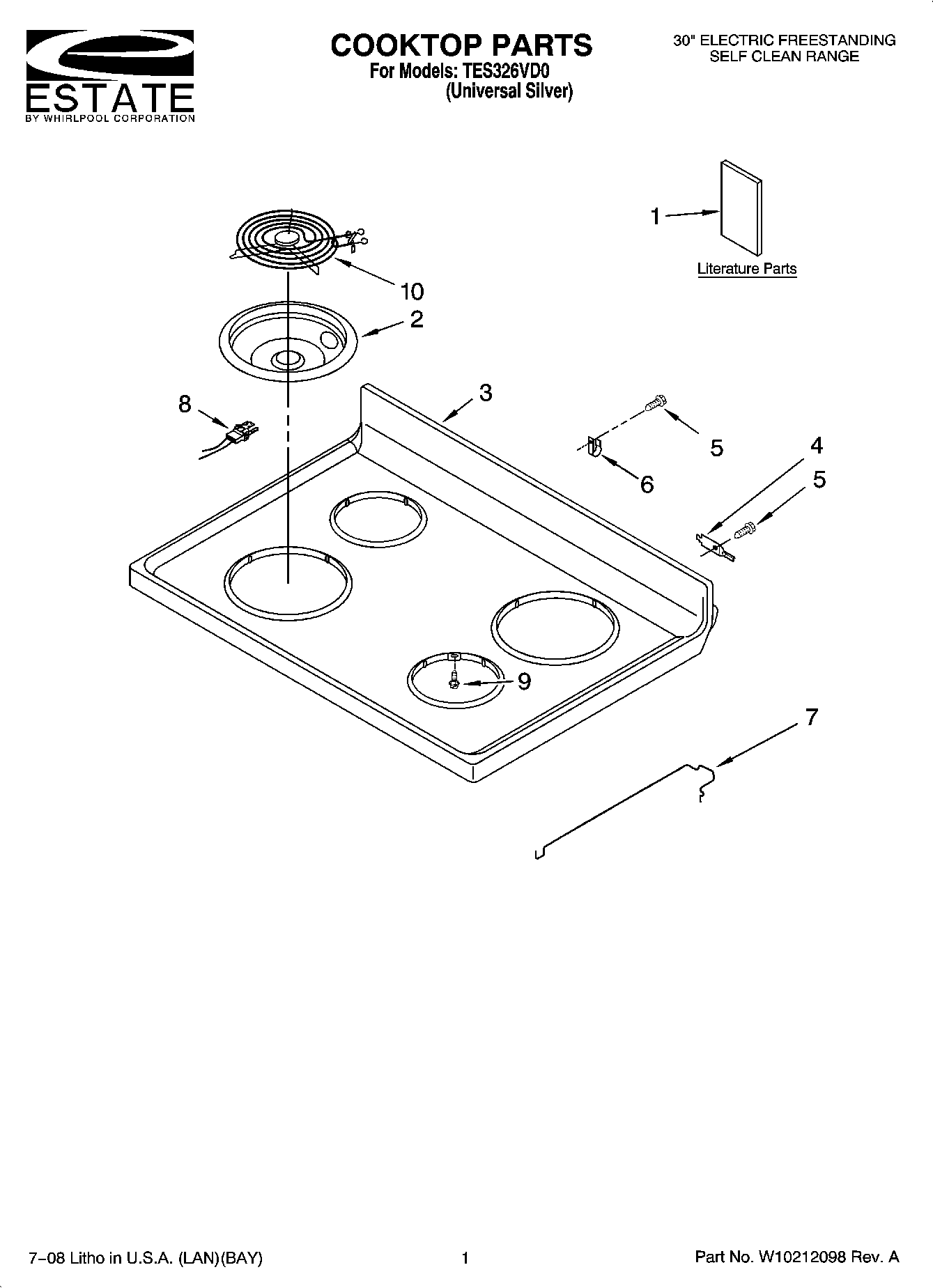

TES326VD0 01 – COOKTOP PARTS

Products

PositionProduct
1Tech Sheet
1Owner`s Manual
1Anti-Tip Template (English/French)
1Anti-Tip Template (English/Spanish)
1SAFER COOKING TIPS (ENGLISH
1Instructions, Installation
2WPW10196406 Whirlpool 6" Chrome Drip Bowl
2DRIP BOWL 8" W/HOLE CHROME
38195534 Whirlpool Cooktop
4WP3195060 Whirlpool Cooktop Pin
5SCREW
6WP308605 Whirlpool Refrigerator Clamp
7WP3195812 Whirlpool Cooktop Rod
8814399 Whirlpool Receptacle Kit
9WP3196154 Whirlpool Screw Assembly
10WP660532 Whirlpool Oven Surface Element
10WPW10259865 Whirlpool Range 8" Surface Element
