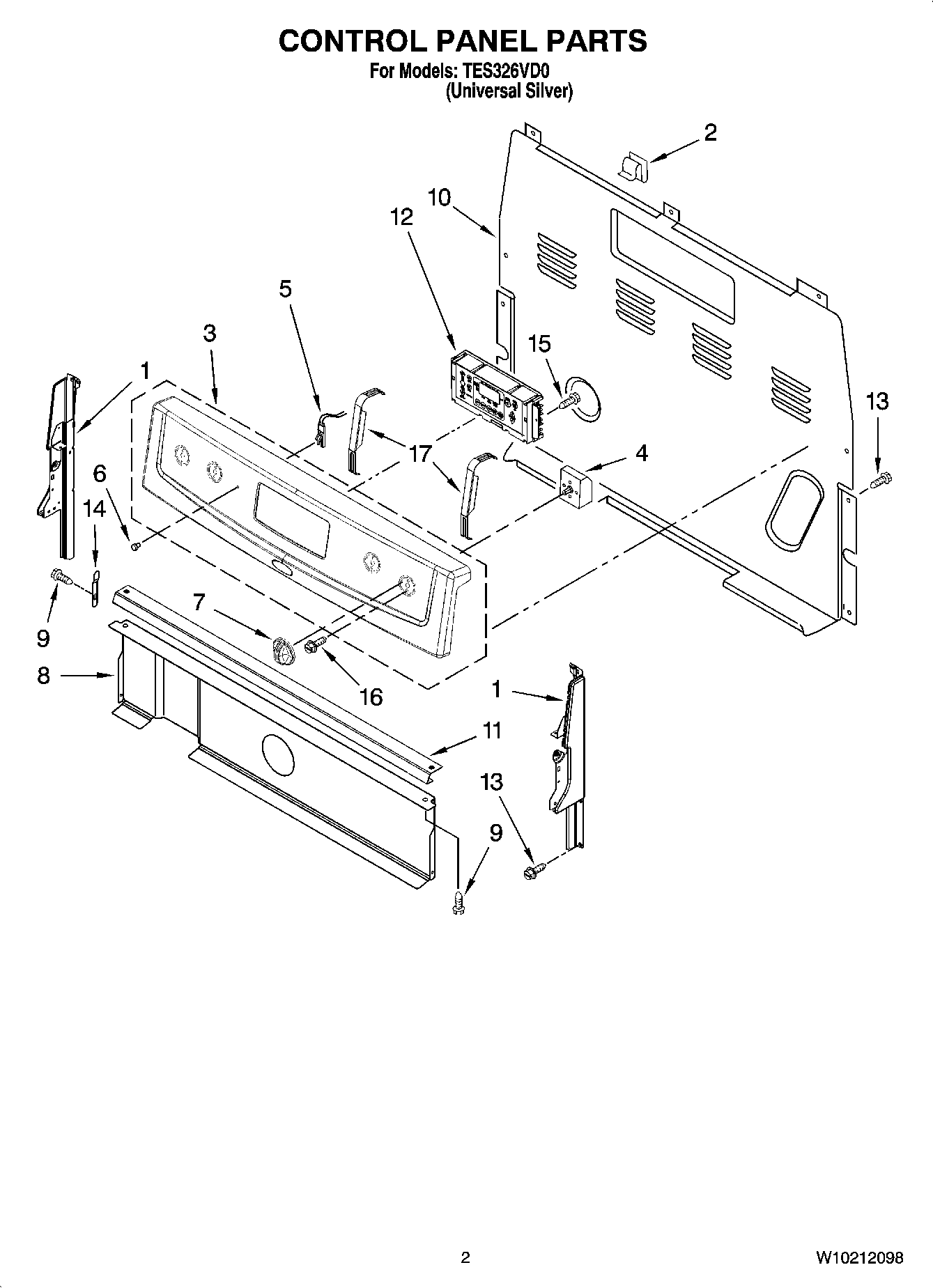

TES326VD0 02 – CONTROL PANEL PARTS

TES326VD0 02 – CONTROL PANEL PARTS

Written by

in

TES326VD0 02 – CONTROL PANEL PARTS

Products

PositionProduct
1W11219664 Whirlpool Endcap Panel
1W11219665 Whirlpool Panel Endcap
2WP8273564 Whirlpool Clip
3Panel, Control
4WP3149400 Whirlpool Oven Infinite Switch
4WP3148952 Whirlpool Oven Infinite Switch
5WP8523265 Whirlpool Indicator Light
6WP3196068 Whirlpool Light Lens
7Knob, Infinite (4)
8Shield, Heat
93196166 Whirlpool Screw
10WP8272473 Whirlpool Rear Cover
11W10525121 Whirlpool Control Bracket
12W10876180 Whirlpool Electronic Control Board
13SCREW
143196200 Whirlpool Clip
15WP3196557 Whirlpool Screw
16WP3400882 Whirlpool Screw
17W11230932 Whirlpool Bracket Mounting
