TES355KQ0 02 – CONTROL PANEL

TES355KQ0 02 – CONTROL PANEL

Written by

in

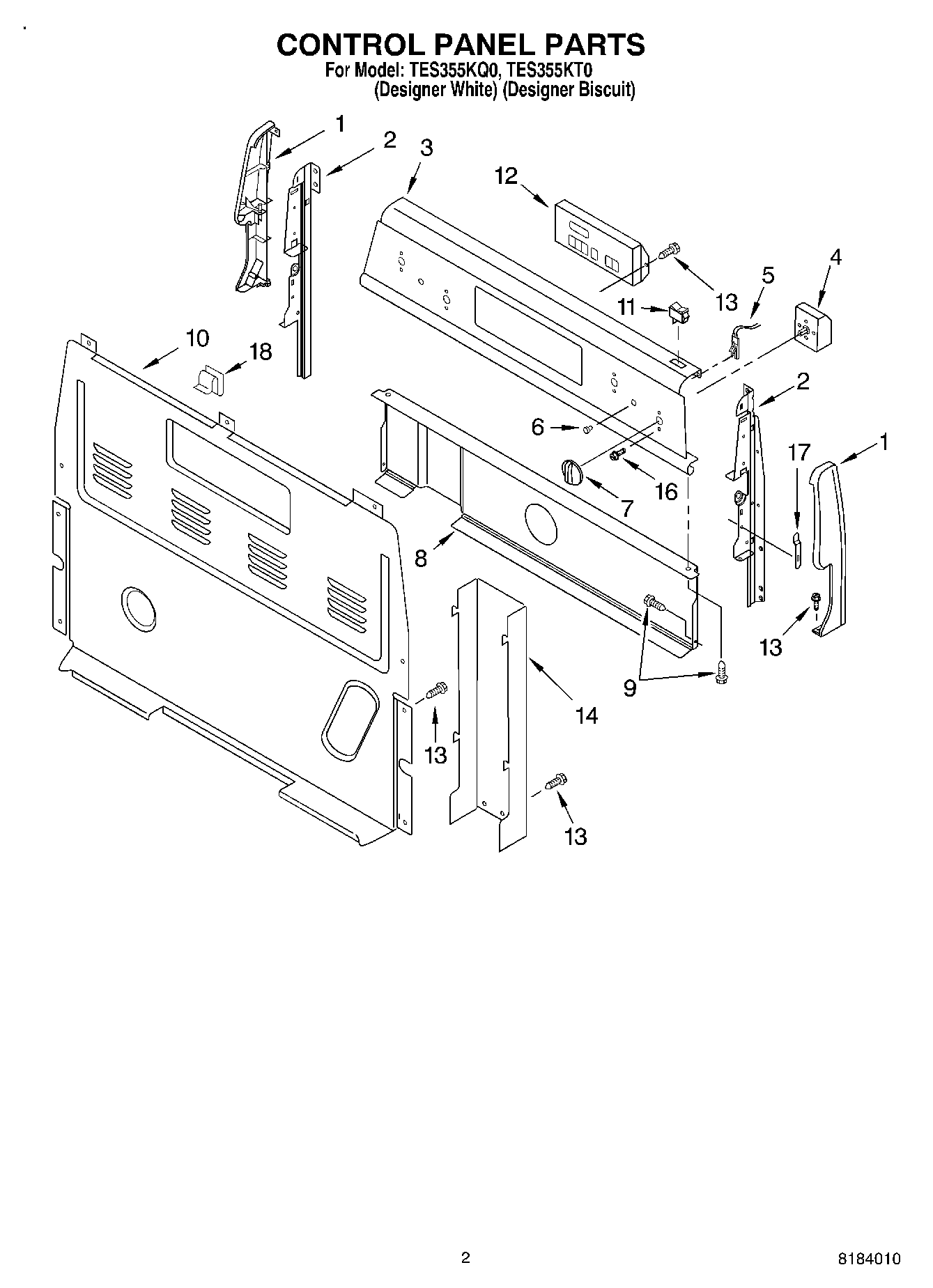

TES355KQ0 02 – CONTROL PANEL

Products

PositionProduct
1Endcap (Biscuit Left Hand)
1Endcap (Biscuit Right Hand)
1Endcap (White Right Hand)
1Endcap (White Left Hand)
2Support, Endcap (Left Hand)
2Support, Endcap (Right Hand)
3Panel, Backguard (White)
3Panel, Backguard (Biscuit)
4SWITCH-INF
4WP3148952 Whirlpool Oven Infinite Switch
5Light, Indicator (Surface Unit (2))
6WP3196068 Whirlpool Light Lens
7WP3196231 Whirlpool Knob
7WP3196232 Whirlpool Knob
8Shield, Heat
9Screw
10WP8272473 Whirlpool Rear Cover
113149360 Whirlpool Light Switch
11Switch, Rocker (Biscuit)
12Control, Range (White)
12Control, Range (Biscuit)
13SCREW
14WPW10326122 Whirlpool Black Cover
16WP3400882 Whirlpool Screw
173196200 Whirlpool Clip
18WP8273564 Whirlpool Clip
