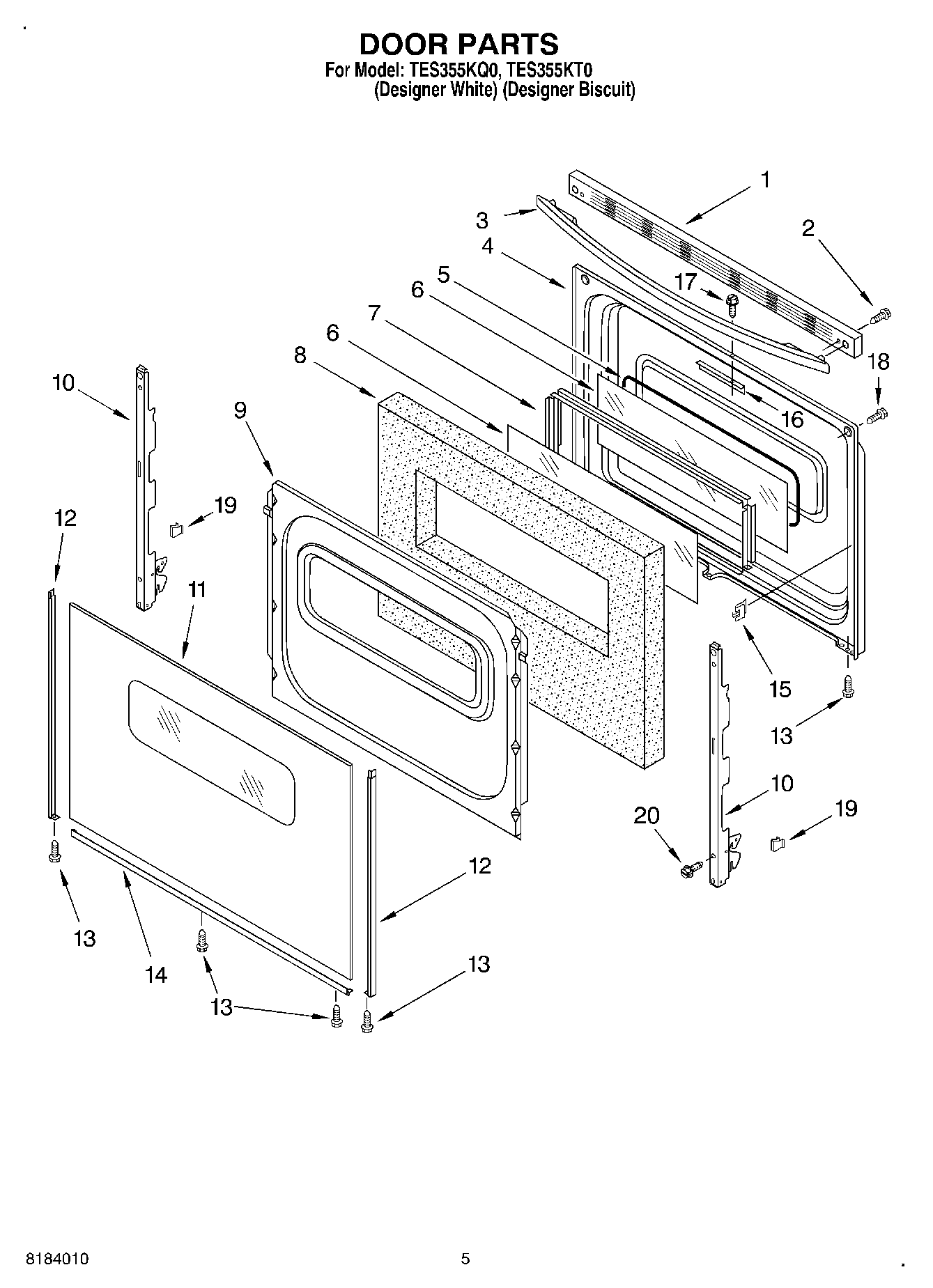

| 1 | Trim, Top (Biscuit) |
| 1 | WPW10016370 Whirlpool Door Trim |
| 2 | WP3196164 Whirlpool Screw |
| 3 | Handle, Door (Biscuit) |
| 3 | WPW10202216 Whirlpool Door Handle |
| 4 | Liner, Door |
| 5 | 8522415 Whirlpool Oven Wind Gasket |
| 6 | WP9758164 Whirlpool Door Glass |
| 7 | Frame, Glass |
| 8 | WPW10278991 Whirlpool Insulation |
| 9 | 9761499 Whirlpool Oven Retainer |
| 10 | WP8053807 Whirlpool Oven Door Hinge |
| 11 | WP9762476 Whirlpool Door Glass |
| 11 | Glass, Door (Biscuit) |
| 13 | W10491985 Whirlpool Screw |
| 14 | 8184859 Whirlpool Range Oven Door Trim Kit (2 Sides, 1 Bottom) |
| 14 | 8184860 Whirlpool Oven Door Trim |
| 15 | Clip, Glass (4) |
| 16 | Bracket, Latch |
| 17 | WP3400832 Whirlpool Screw |
| 18 | WP179051 Whirlpool Screw |
| 19 | WP3196925 Whirlpool Clip Assembly |
| 20 | WP3196175 Whirlpool Screw |
