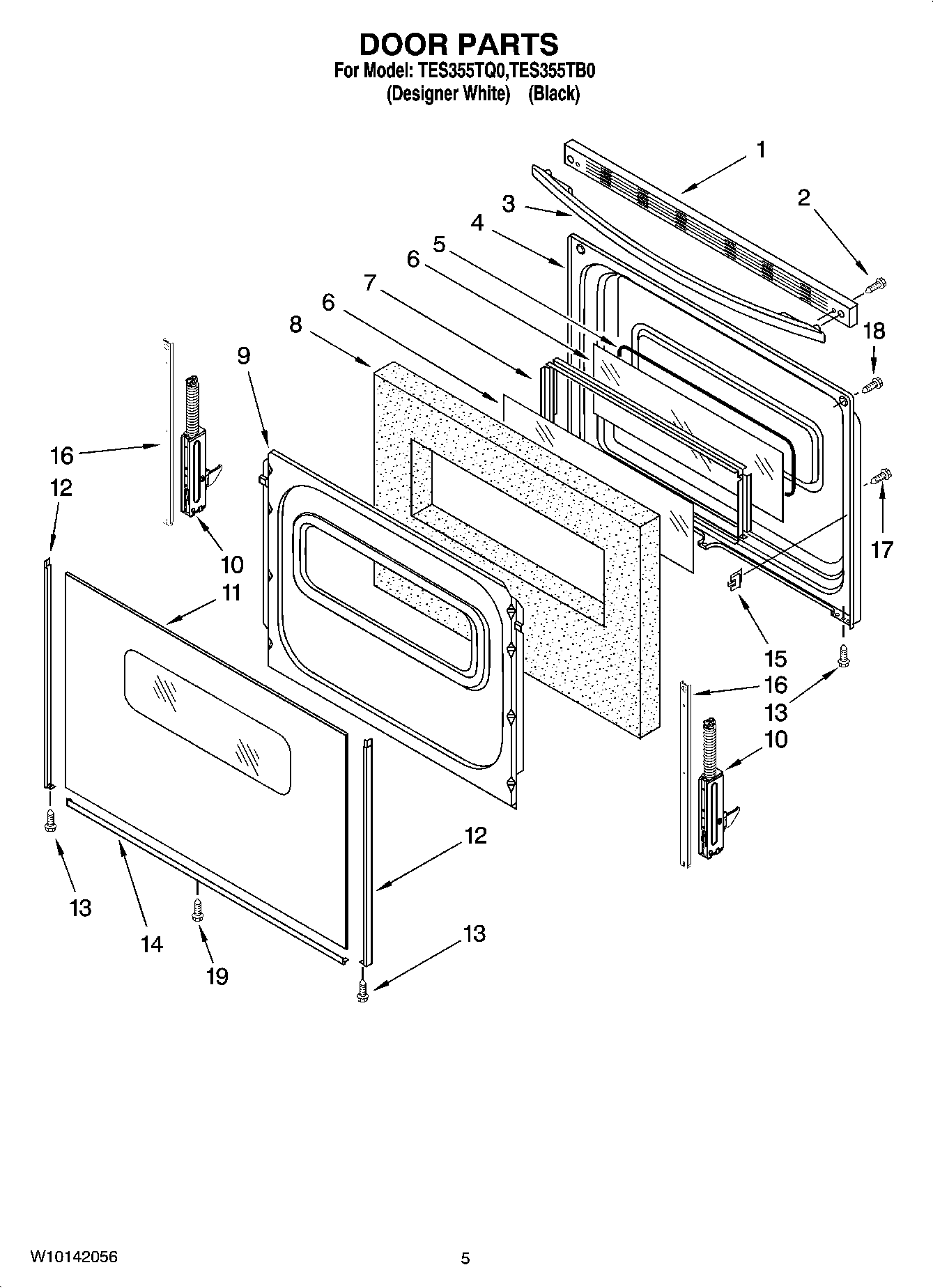

TES355TQ0 04 – DOOR PARTS

Products

Position	Product
1	Trim, Top (Black)
1	WPW10016370 Whirlpool Door Trim
2	WP3196164 Whirlpool Screw
3	WPW10202216 Whirlpool Door Handle
3	WPW10202217 Whirlpool Door Handle
4	9761340 Whirlpool Oven Door Liner
5	8522415 Whirlpool Oven Wind Gasket
6	WP9758164 Whirlpool Door Glass
7	Frame, Glass
8	WPW10278991 Whirlpool Insulation
9	9761499 Whirlpool Oven Retainer
10	W10347466 Whirlpool Door Hinge
11	WP9762476 Whirlpool Door Glass
11	WP9762477 Whirlpool Glass Door
12	W10761018 Whirlpool Dishwasher Left Door Trim
12	W10761014 Whirlpool Right Door Trim
12	WP8523166 Whirlpool Door Trim
12	WP8523172 Whirlpool Left Door Trim
13	W10491985 Whirlpool Screw
14	WP8523175 Whirlpool Door Trim Assembly
14	WP8523177 Whirlpool Door Trim Assembly
15	Clip, Glass (4)
16	W11502236 Whirlpool Door Trim
17	WPW10031790 Whirlpool Screw
18	W10777162 Whirlpool Screw
19	WP3196175 Whirlpool Screw
