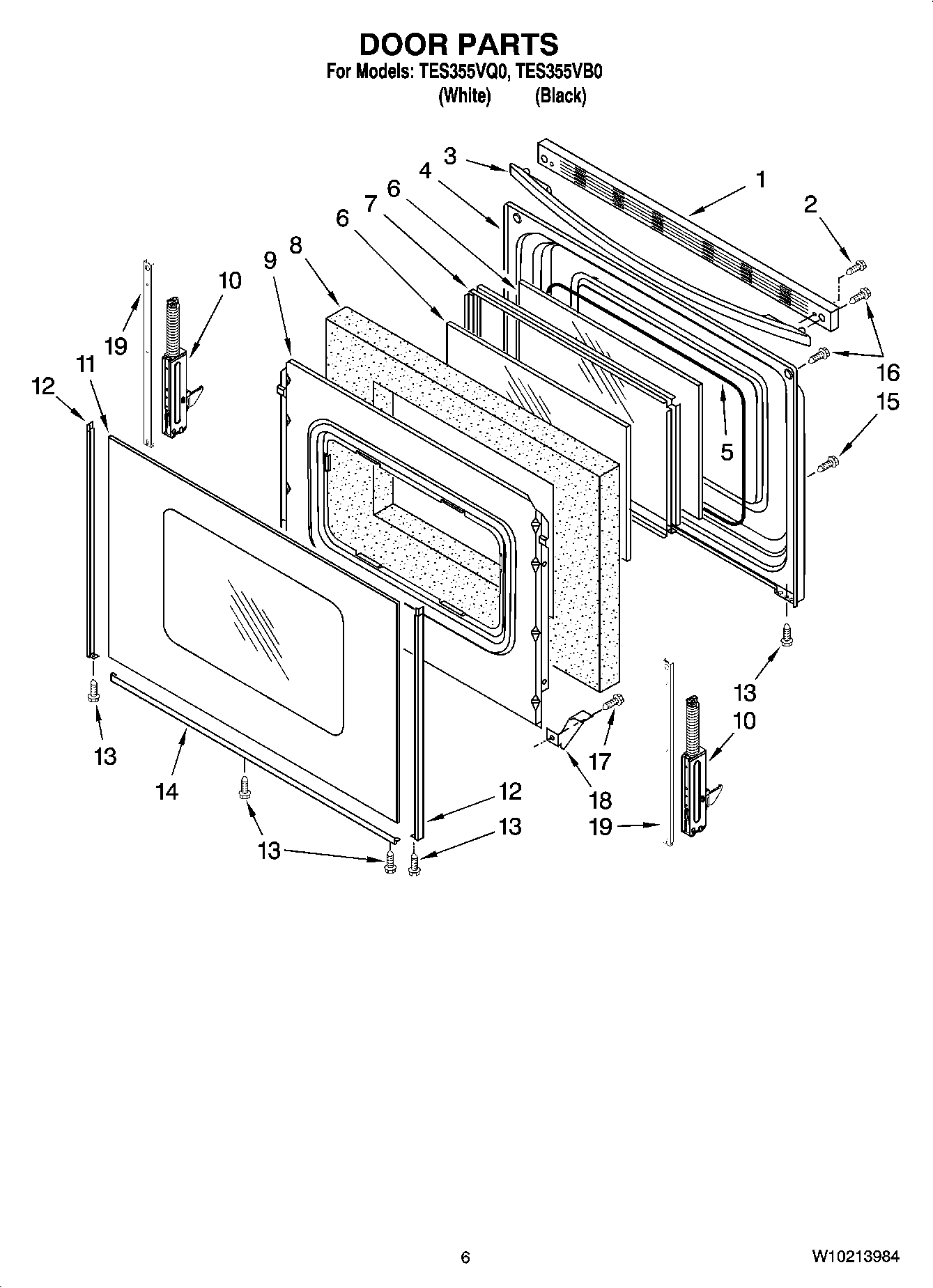

TES355VB0 05 – DOOR PARTS, OPTIONAL PARTS

TES355VB0 05 – DOOR PARTS, OPTIONAL PARTS

Written by

in

TES355VB0 05 – DOOR PARTS, OPTIONAL PARTS

Products

Position	Product
	WIRI
	WP3196154 Whirlpool Screw Assembly
	W11244557 Whirlpool Screw
	8212471 Whirlpool Oven Paint
	3184020 Whirlpool Oven Wire
	Grease
	W10251769 Whirlpool Wire Harness
	WPW10144763 Whirlpool Tie Wire
	WPL W10174431
	W11172524 Whirlpool Wire Harness
	WPL W10174432
	Following Parts Not Illustrated
	REFINISHING MATERIAL
	Insulation
	ANTI-TIP KIT
	Clip, Ground Wire
	72032 Whirlpool Touch Up Paint Black
	WPL 799832
	285006 Whirlpool Spray
	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
	511873 Whirlpool Refrigerator Paint
	FOIL, ALUMINUM OVEN (18“ X 25 )
	W11447673 Whirlpool Range Tip Anchor
	350942 Whirlpool Spray Paint
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	350930 Whirlpool White Spray Paint
	WPW10208653 Whirlpool Insulation
1	WPW10016370 Whirlpool Door Trim
1	Trim, Top (Black)
2	WP3196164 Whirlpool Screw
3	WPW10202217 Whirlpool Door Handle
3	WPW10202216 Whirlpool Door Handle
4	9761340 Whirlpool Oven Door Liner
5	8522415 Whirlpool Oven Wind Gasket
6	WP9758164 Whirlpool Door Glass
7	Frame, Glass
8	WPW10278991 Whirlpool Insulation
9	9761499 Whirlpool Oven Retainer
10	W10347466 Whirlpool Door Hinge
11	WP9762476 Whirlpool Door Glass
11	WP9762477 Whirlpool Glass Door
12	WP8523166 Whirlpool Door Trim
12	W10761014 Whirlpool Right Door Trim
12	W10761018 Whirlpool Dishwasher Left Door Trim
12	WP8523172 Whirlpool Left Door Trim
13	W10491985 Whirlpool Screw
14	WP8523177 Whirlpool Door Trim Assembly
14	WP8523175 Whirlpool Door Trim Assembly
15	WPW10031790 Whirlpool Screw
16	W10777162 Whirlpool Screw
17	WP3196175 Whirlpool Screw
18	W10137382 Whirlpool Clip
19	W11502236 Whirlpool Door Trim
