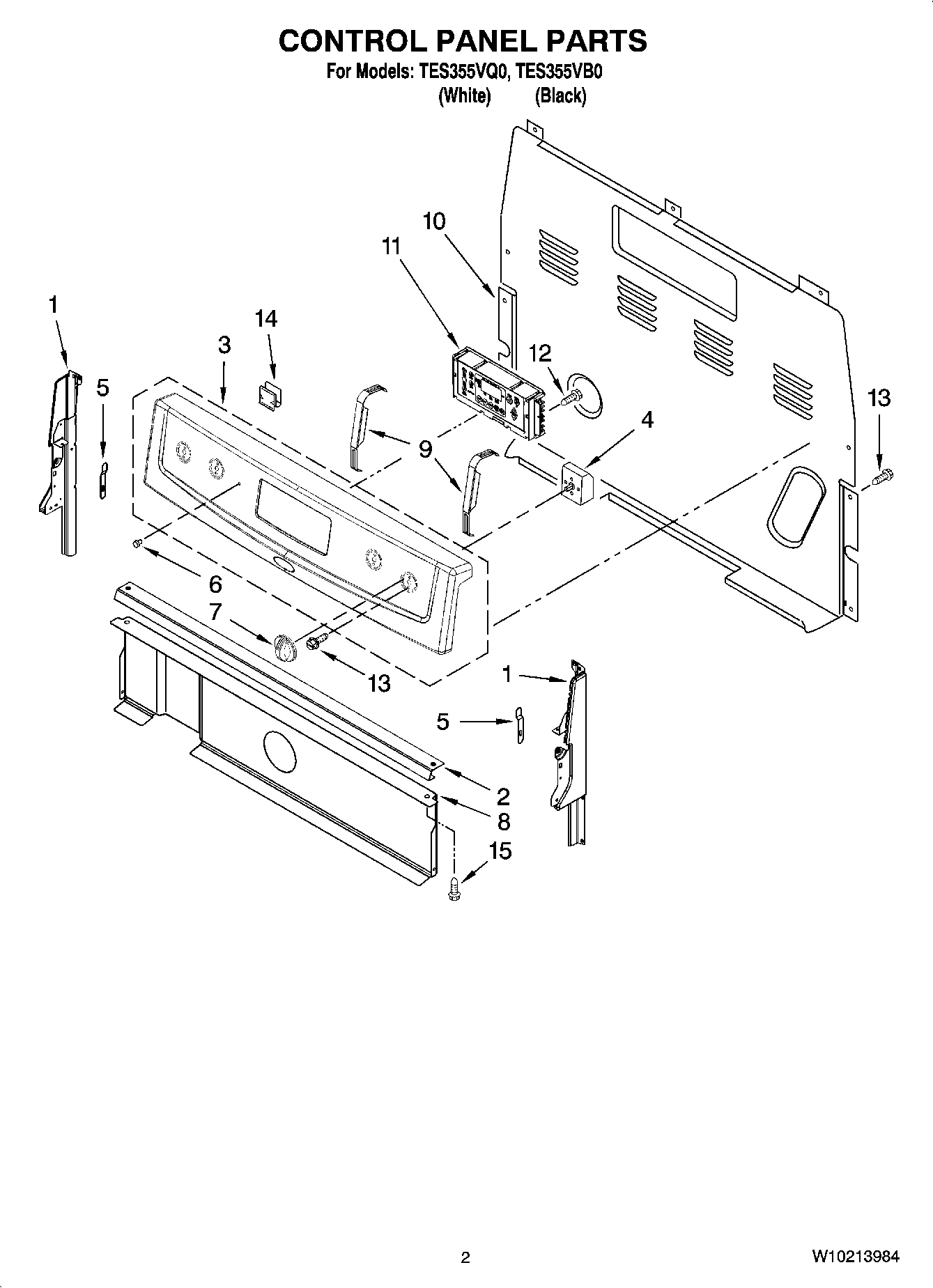

TES355VQ0 02 – CONTROL PANEL PARTS

Products

Position	Product
1	W11219370 Whirlpool Endcap Panel
1	W11219365 Whirlpool Panel Endcap
1	W11219665 Whirlpool Panel Endcap
1	W11219664 Whirlpool Endcap Panel
2	W10525121 Whirlpool Control Bracket
3	Panel, Console
3	Panel, Control (Black)
4	WP3148952 Whirlpool Oven Infinite Switch
4	SWITCH-INF
5	3196200 Whirlpool Clip
6	WP3196068 Whirlpool Light Lens
7	Knob, Infinite (4)
7	WPW10203524 Whirlpool Knob
8	W10134247 Whirlpool Heat Shield
9	W11230932 Whirlpool Bracket Mounting
10	WP8272473 Whirlpool Rear Cover
11	WPW10476691 Whirlpool Power Board
12	SCREW
13	WP3400882 Whirlpool Screw
14	WP8273564 Whirlpool Clip
15	3196166 Whirlpool Screw
15	WP3400832 Whirlpool Screw
