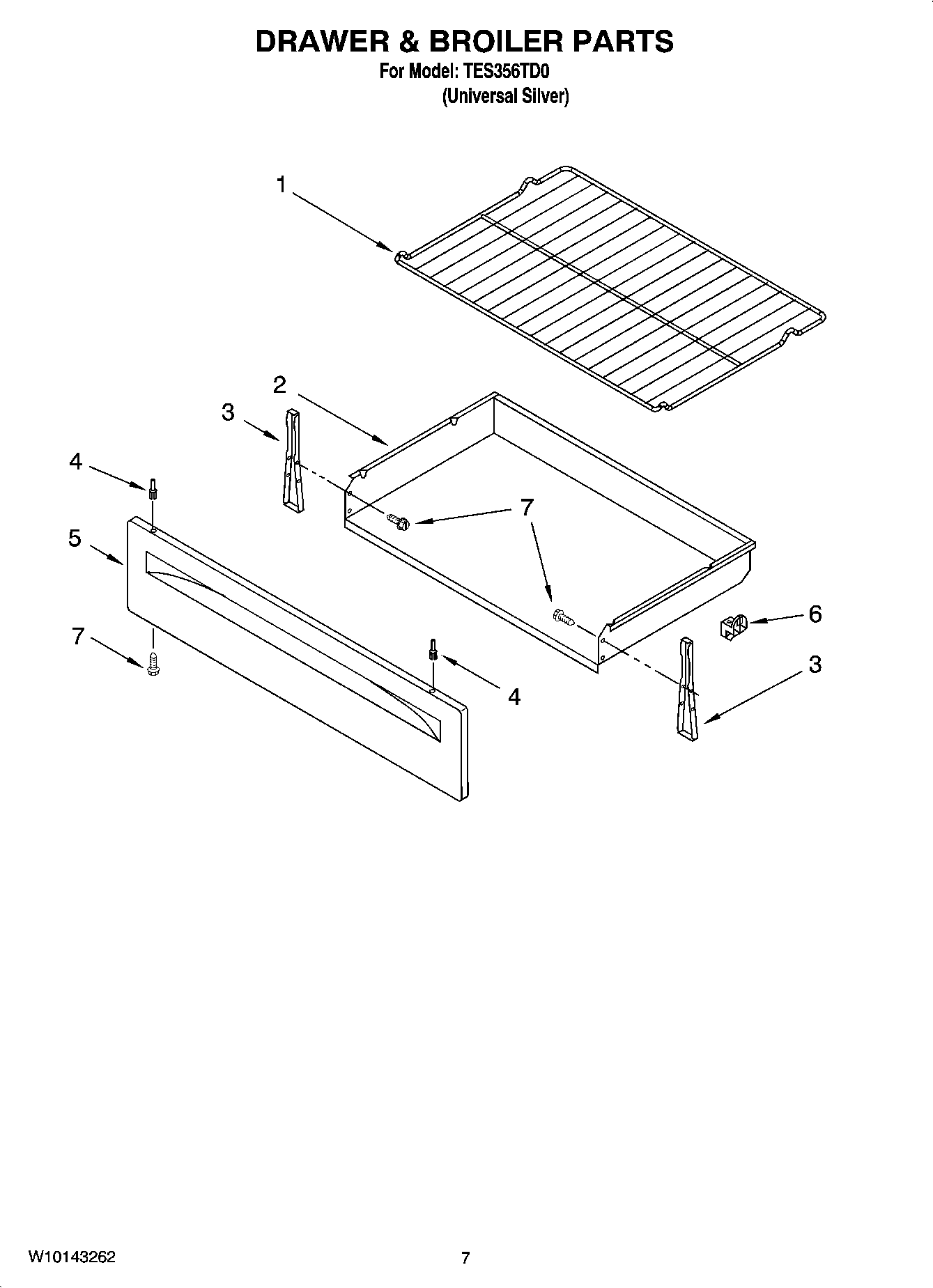

TES356TD0 05 – DRAWER & BROILER PARTS, OPTIONAL PARTS

Products

Position	Product
	WPL ARI164448A
	Grease
	3184020 Whirlpool Oven Wire
	8212471 Whirlpool Oven Paint
	Wire (14 Ga. 200 c Brown)
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 150 c Yellow)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Brown)
	WP3196154 Whirlpool Screw Assembly
	WPL 8524114
	WPL 9761458
	WPL ARI164447A
	WPL ARI164446A
	WPL ARI164445A
	WPL ARI164444A
	WPL ARI164443A
	WPL ARI164442A
	Harness, Wire (Oven Light)
	WPL 9758173
	WPL 9761468
	Wire (14 Ga. 150 c Blue)
	242831 Whirlpool Oven Wire
	WPW10208653 Whirlpool Insulation
	WPL 799832
	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
	511873 Whirlpool Refrigerator Paint
	4392901 Whirlpool Biscuit Spray Paint
	350942 Whirlpool Spray Paint
	Almond (Uncut)
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly
	350930 Whirlpool White Spray Paint
	FOIL, ALUMINUM OVEN (18“ X 25 )
	Clip, Ground Wire
	W11244557 Whirlpool Screw
	W11447673 Whirlpool Range Tip Anchor
	Wire, 25` Roll (Red 14 Ga.)
	285006 Whirlpool Spray
	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
1	WPW10256908 Whirlpool Oven Range Rack
2	Drawer, Storage
3	W10838990 Whirlpool Mounting Bracket
4	WP3196813 Whirlpool Rivet
5	W11230479 Whirlpool Drawer Panel
6	WP8053334 Whirlpool Drawer Glide
7	WP3400832 Whirlpool Screw
