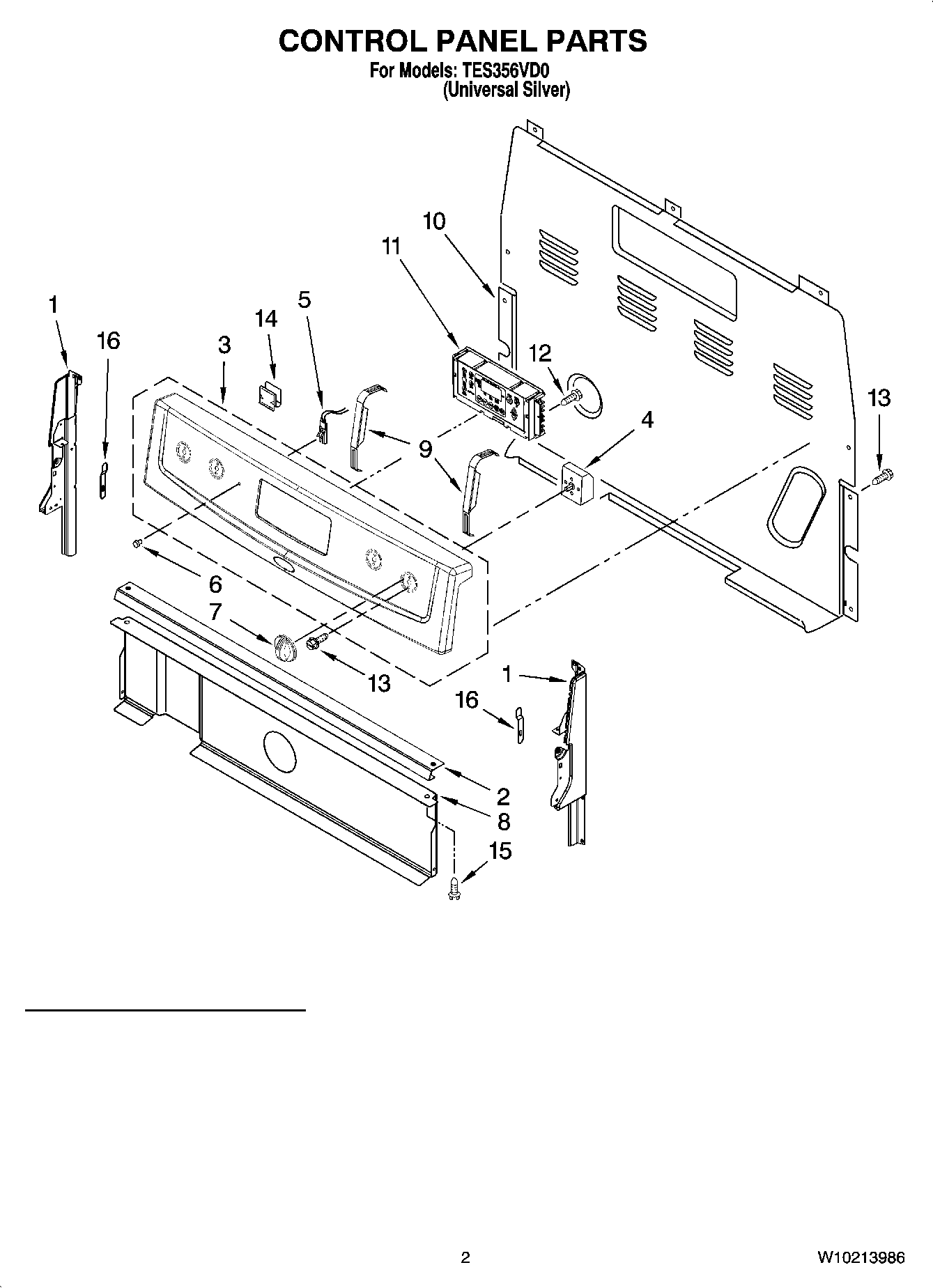

TES356VD0 02 – CONTROL PANEL PARTS

TES356VD0 02 – CONTROL PANEL PARTS

Written by

in

TES356VD0 02 – CONTROL PANEL PARTS

Products

PositionProduct
1W11219665 Whirlpool Panel Endcap
1W11219664 Whirlpool Endcap Panel
2W10525121 Whirlpool Control Bracket
3Panel, Control
4SWITCH-INF
4WP3148952 Whirlpool Oven Infinite Switch
5WP8523265 Whirlpool Indicator Light
6WP3196068 Whirlpool Light Lens
7Knob, Infinite (4)
8W10134247 Whirlpool Heat Shield
9W11230932 Whirlpool Bracket Mounting
10WP8272473 Whirlpool Rear Cover
11WPW10476691 Whirlpool Power Board
12SCREW
13WP3400882 Whirlpool Screw
14WP8273564 Whirlpool Clip
15WP3400832 Whirlpool Screw
163196200 Whirlpool Clip
