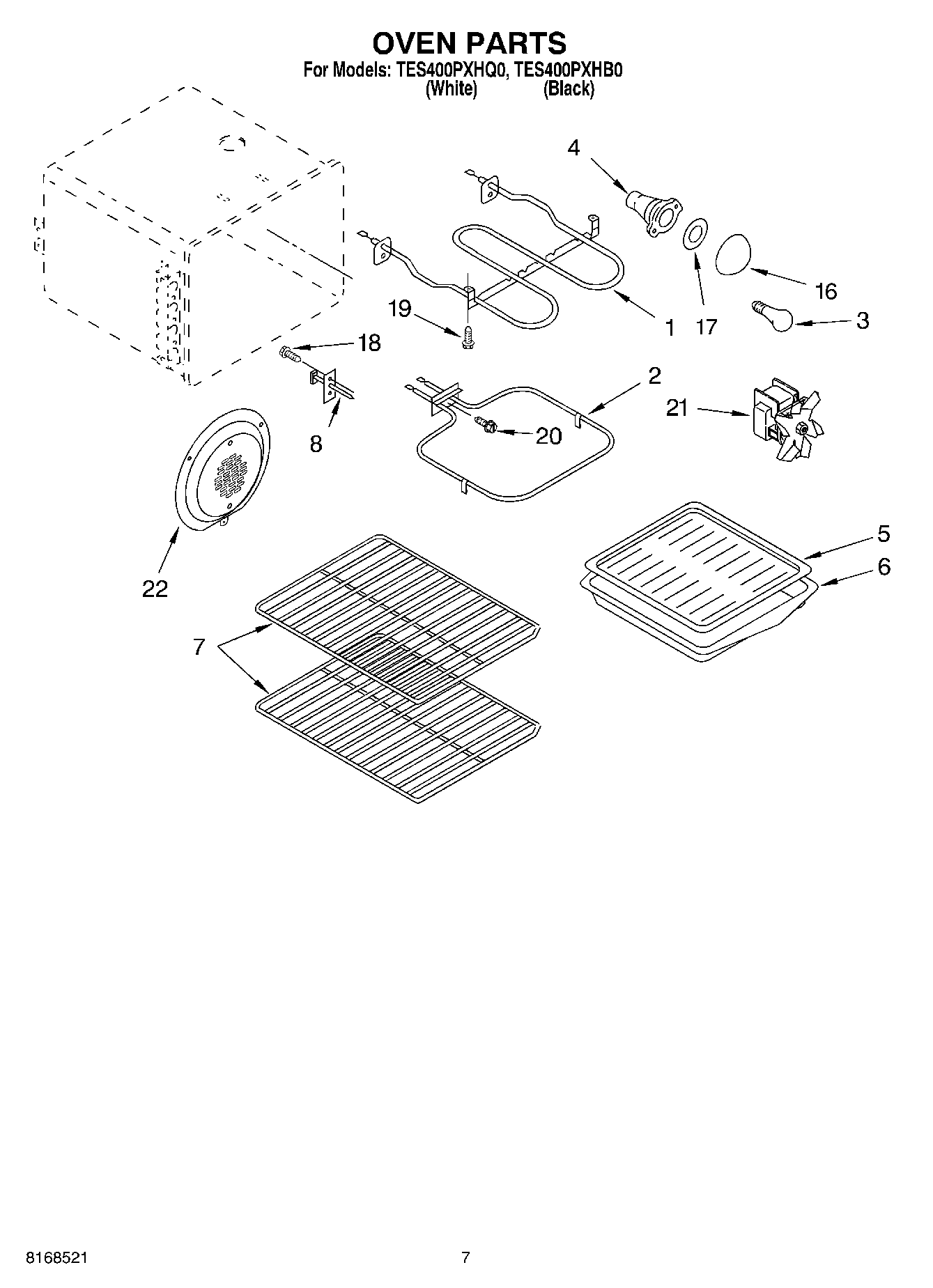

TES400PXHB0 05 – OVEN

Products

Position	Product
1	Element, Broil
2	ELMNT-BAKE
3	RANGE ONLY 40W 120V APPL BULB
4	W11594027 Whirlpool Range Oven Light Socket
6	4396923 Whirlpool Broil Pan Set Gray Porcelain
7	Rack, Standard (3)
8	Sensor
16	WP9781049 Whirlpool Light Lens
17	WP3184533 Whirlpool Range Light Lens Gasket
18	WP4159387 Whirlpool Compactor Screw
19	Screw
20	340184 Whirlpool Screw
21	Fan Assembly
22	Wire (14 Ga. 200 c Brown)
22	1
22	18 Ga. 80~c Rating (Red)
22	WPL 9754079
22	WPL 9751904G
22	Wire (12 Ga. 150 c Black)
22	WPL 9752612
22	WPL 9781933
22	Ground Strap
22	WPL 9752771
22	8212471 Whirlpool Oven Paint
22	WPL 9781096
22	Grease
22	SCREW
22	WPL 9752848
22	Wire (14 Ga. 150 c Yellow)
22	Wire (14 Ga. 150 c Orange)
22	Wire (14 Ga. 150 c Green)
22	WPW10208653 Whirlpool Insulation
22	WPL 799832
22	511873 Whirlpool Refrigerator Paint
22	350942 Whirlpool Spray Paint
22	Almond (Uncut)
22	WP72107 Whirlpool Touchup
22	799344 Whirlpool Refrigerator Paint
22	72017 Whirlpool Appliance Touch-Up Paint White
22	FOIL, ALUMINUM OVEN (18`` X 25 )
22	350930 Whirlpool White Spray Paint
22	Wire, 25` Roll (Black 14 Ga.)
22	Wire (14 Ga. 150 c Brown)
22	Wire (14 Ga. 150 c Blue)
22	242831 Whirlpool Oven Wire
22	Clip, Ground Wire
22	285006 Whirlpool Spray
22	WPW10339879 Whirlpool Wire Tie
22	Wire, 25`` Roll (White 14 GA.)
22	Wire, 25` Roll (Red 14 Ga.)
22	350956 Whirlpool Spray Assembly
