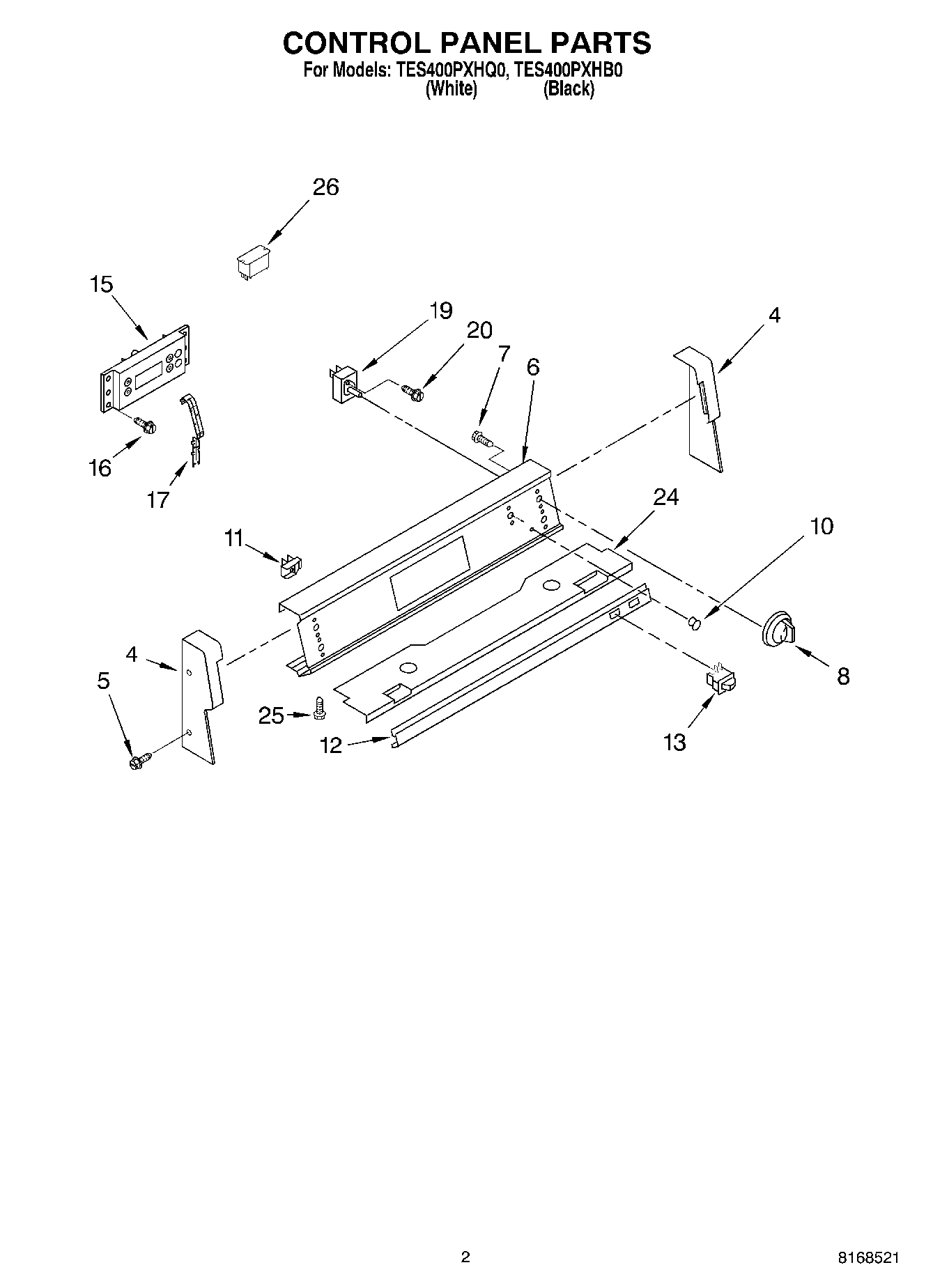

TES400PXHQ0 02 – CONTROL PANEL

TES400PXHQ0 02 – CONTROL PANEL

Written by

in

TES400PXHQ0 02 – CONTROL PANEL

Products

PositionProduct
4End Cap (Black, Left)
4End Cap (Left)
4End Cap (Right)
4End Cap (Black, Right)
5WP4159387 Whirlpool Compactor Screw
6Panel, Control (White)
6Panel, Control (Black)
7Panel, Control (Screw, (2) 8 x 3/8)
8WP9752405FW Whirlpool Knob
8Knobs, Control (4) (Black)
10WP9750343 Whirlpool Light Lens
11Light, Indicator (Surface Unit (2))
12Trim Strip
12Trim Strip (Black)
13Switch, Warm Zone (White)
13Switch, Simmer (White)
13Switch, Rocker (Warm Zone) (Black)
13WPW10163899 Whirlpool Switch
15Timer (Black)
15Timer (White)
16Screw (4) 10 x 1/2
17Bracket, Timer
19WP9750641 Whirlpool Infinite Switch
19WP9750639 Whirlpool Infinite Switch
19WP9750638 Whirlpool Infinite Switch
20WP3400882 Whirlpool Screw
24Base, Console
25WP3400832 Whirlpool Screw
26Relay
