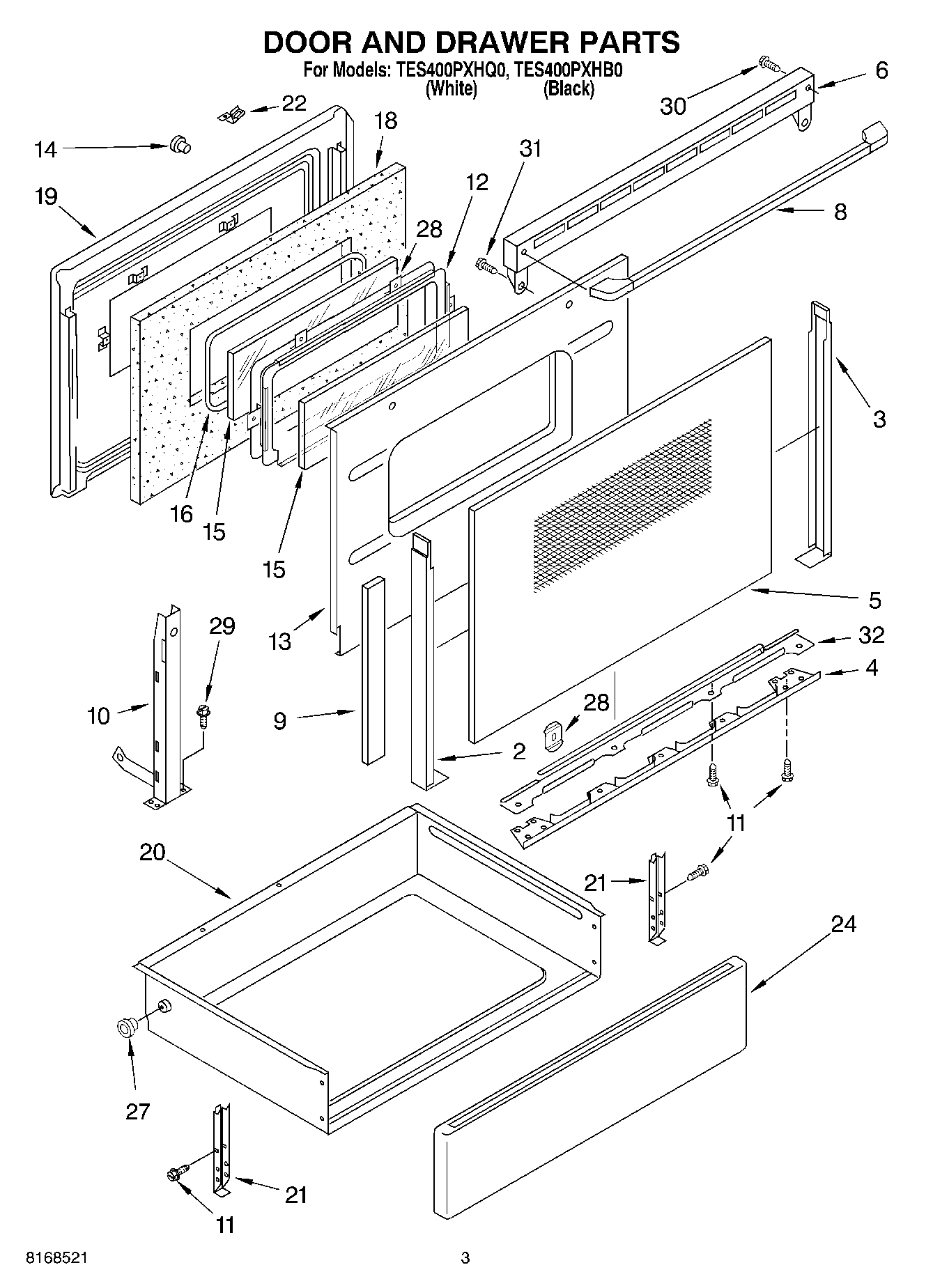

TES400PXHQ0 03 – DOOR AND DRAWER

Products

Position	Product
2	Trim, Door-Left (White)
2	Trim, Door-Left (Black)
3	Trim, Door-Right (White)
3	Trim, Door-Right (Black)
4	Trim, Door Bottom (White)
4	Trim, Door Bottom (Black)
5	Glass, Door (Black)
5	Glass, Door (White)
6	Vent, Door (Black)
6	Vent, Door (White)
6	Vent, Door (Gasket, Vent)
8	Handle, Door (Black)
8	Handle, Door
9	Gasket, Door Glass
10	WP9782033 Whirlpool Door Hinge
11	WP4159387 Whirlpool Compactor Screw
12	Frame, Window
13	Shield Door
14	238614 Whirlpool Bumper Hinge
15	WP9781654 Whirlpool Door Glass
16	Seal, Window
18	Insulation, Door
19	Liner, Door
20	Drawer & Roller
21	Bracket, Drawer
22	Retainer, Glass
24	Front, Drawer (Black)
24	Front, Drawer (White)
27	WP90296 Whirlpool Clip
27	814229 Whirlpool Primary Roller
28	Spacer, Door (8)
29	Screw (4) 10 x 1/2
30	Screw (2) 10 x 1 1/4
31	screw (2) 10-24 x 5/8
32	Deflector, Steam
