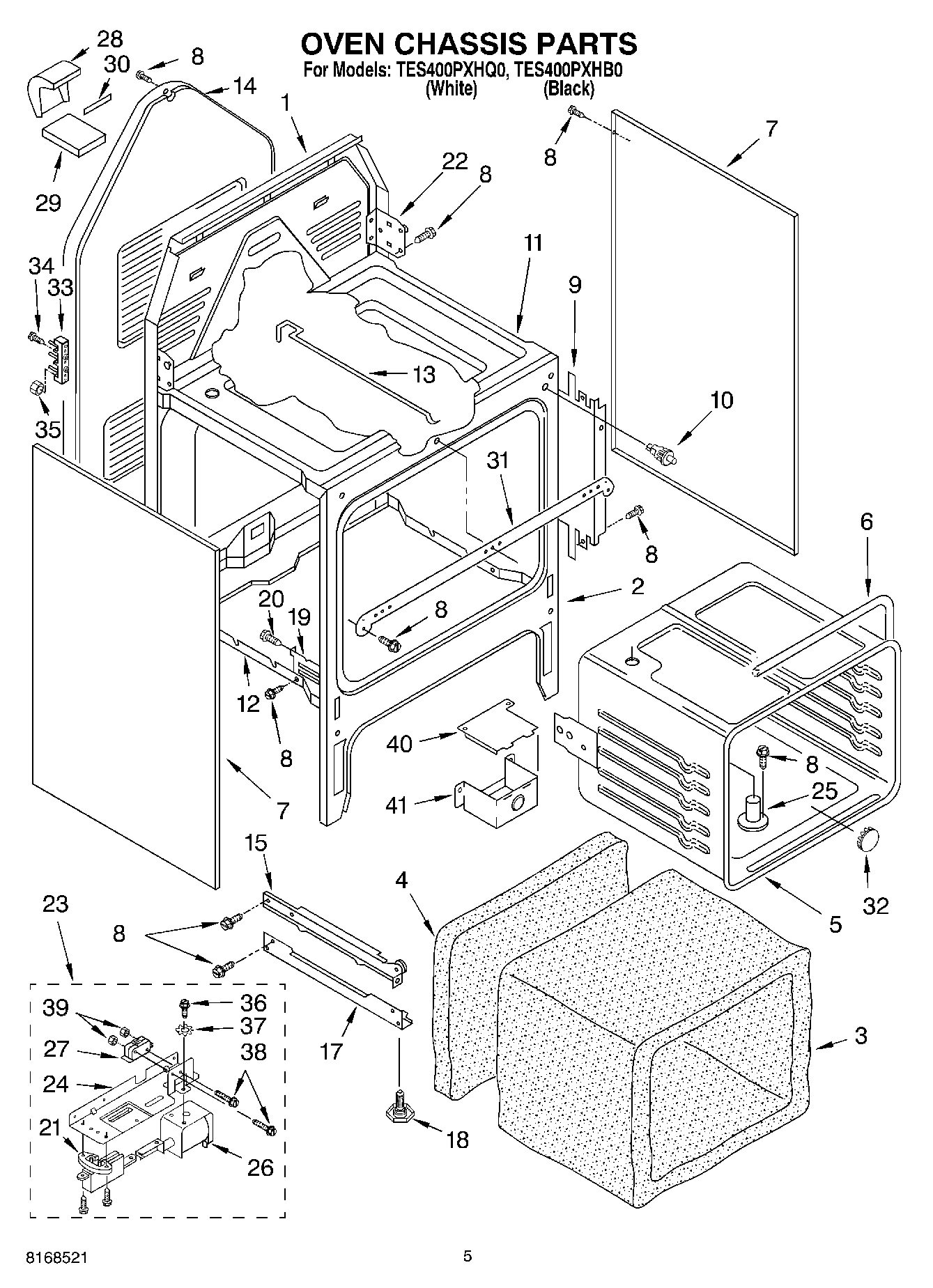

TES400PXHQ0 04 – OVEN CHASSIS

Products

Position	Product
1	Main Chassis, Back
2	Chassis, Front
3	Insulation, Wrap
4	Insulation, Rear
5	Oven Liner
6	Gasket, Oven
7	Body, Side (White)
7	Body, Side (Black)
8	WP4159387 Whirlpool Compactor Screw
9	Shield, Insulation
10	Door Switch (oven Light)
11	Burner Box
12	Oven Bottom
13	Rod, Lock
14	Panel, Rear
15	Drawer Rail, Left
15	Rail, Drawer (Right)
17	Bottom Rail (2)
18	WPW10058460 Whirlpool Appliance Levelling Leg
19	Hinge, Base L or R
20	Screw (4) 10 x 1/2
21	Single Position Device (Not Serviced)
22	Hinge, Cktp.-Right
22	Hinge, Cktp.-Left
23	Oven Lock Assembly (Includes No.21)
24	Bracket, Lock
25	Vent Tube
26	Solenoid
27	Switch, Interlock
28	Back, Vent
29	Cover, Vent
30	Vent Gasket
31	Guard, Wire
32	Button, Plug
33	WP8203546 Whirlpool Terminal Block
34	Screw, (2) 10-16 x 1
35	WP112432 Whirlpool Nut Assembly
36	Screw (2) 10-32 x 5/16
37	Washer (2)
38	Screw, (2)
39	Nut (2)
40	WPL 9752344
41	Cover, Terminal Box
