TES400PXHQ0 05 – OVEN

TES400PXHQ0 05 – OVEN

Written by

in

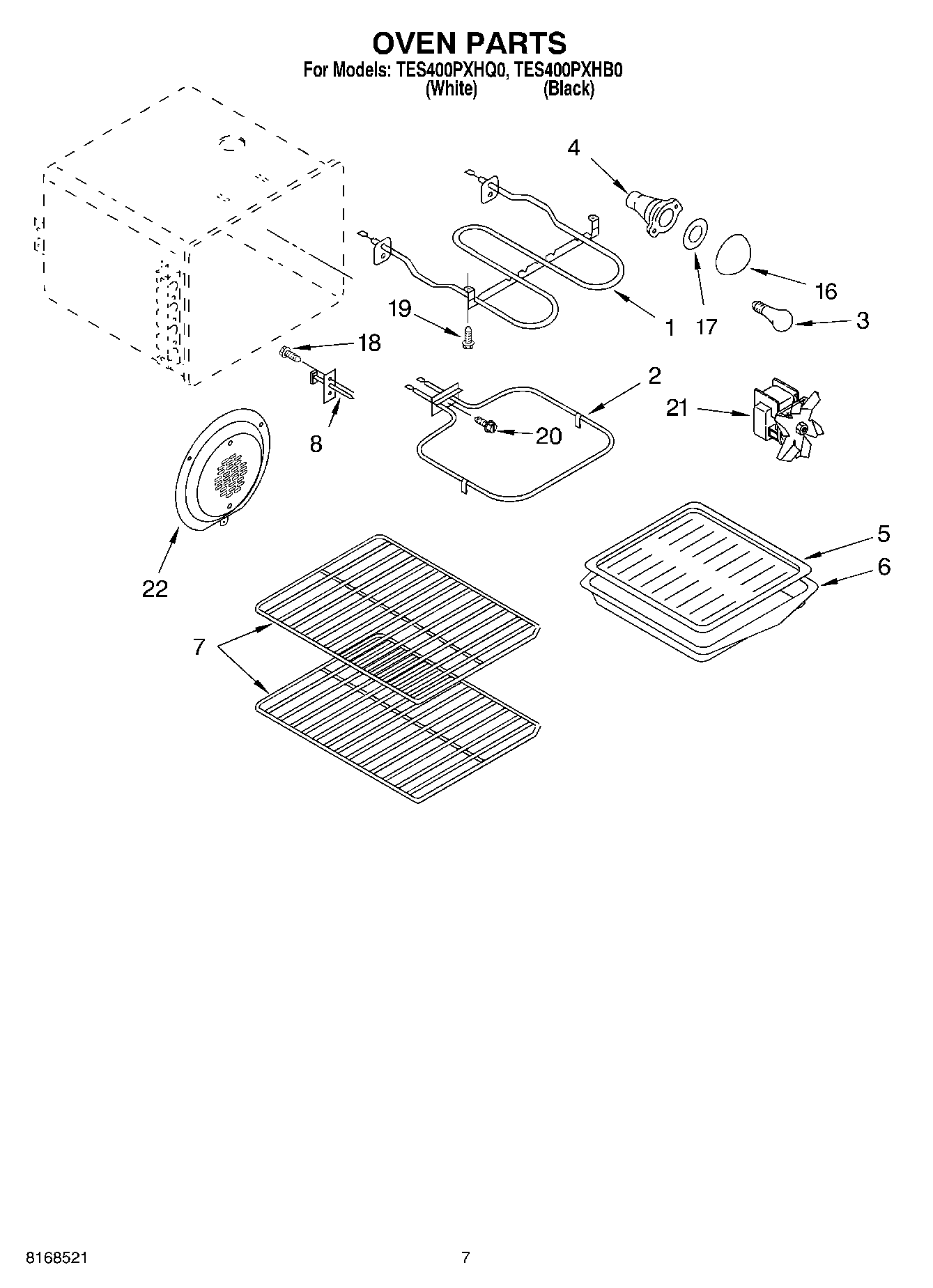

TES400PXHQ0 05 – OVEN

Products

PositionProduct
1Element, Broil
2ELMNT-BAKE
3RANGE ONLY 40W 120V APPL BULB
4W11594027 Whirlpool Range Oven Light Socket
64396923 Whirlpool Broil Pan Set Gray Porcelain
7Rack, Standard (3)
8Sensor
16WP9781049 Whirlpool Light Lens
17WP3184533 Whirlpool Range Light Lens Gasket
18WP4159387 Whirlpool Compactor Screw
19Screw
20340184 Whirlpool Screw
21Fan Assembly
22Wire (14 Ga. 200 c Brown)
221
2218 Ga. 80~c Rating (Red)
22WPL 9754079
22WPL 9751904G
22Wire (12 Ga. 150 c Black)
22WPL 9752612
22WPL 9781933
22Ground Strap
22WPL 9752771
228212471 Whirlpool Oven Paint
22WPL 9781096
22Grease
22SCREW
22WPL 9752848
22Wire (14 Ga. 150 c Yellow)
22Wire (14 Ga. 150 c Orange)
22Wire (14 Ga. 150 c Green)
22WPW10208653 Whirlpool Insulation
22WPL 799832
22511873 Whirlpool Refrigerator Paint
22350942 Whirlpool Spray Paint
22Almond (Uncut)
22WP72107 Whirlpool Touchup
22799344 Whirlpool Refrigerator Paint
2272017 Whirlpool Appliance Touch-Up Paint White
22FOIL, ALUMINUM OVEN (18“ X 25 )
22350930 Whirlpool White Spray Paint
22Wire, 25` Roll (Black 14 Ga.)
22Wire (14 Ga. 150 c Brown)
22Wire (14 Ga. 150 c Blue)
22242831 Whirlpool Oven Wire
22Clip, Ground Wire
22285006 Whirlpool Spray
22WPW10339879 Whirlpool Wire Tie
22Wire, 25“ Roll (White 14 GA.)
22Wire, 25` Roll (Red 14 Ga.)
22350956 Whirlpool Spray Assembly
