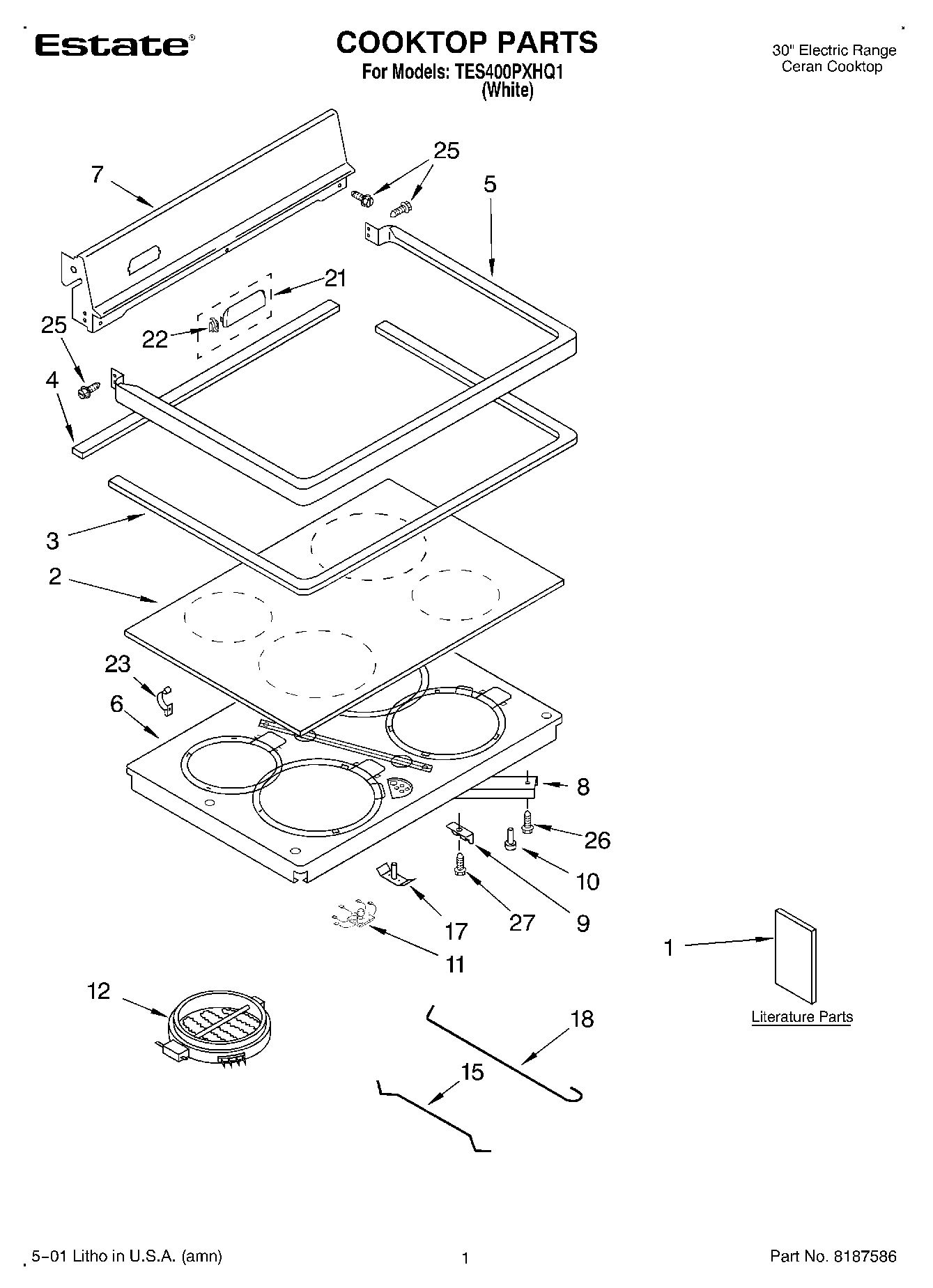

TES400PXHQ1 01 – COOKTOP, LITERATURE

Products

Position	Product
1	Safer Cooking Tips
1	Literature Parts (Wiring Diagram)
1	Literature Parts (Installation Instructions)
1	Literature Parts (Use & Care Guide)
1	WPL LIT9752776
2	Cooktop, Ceran (White)
3	WP9780939 Whirlpool Cooktop Gasket
4	Rear Gasket
5	Frame, Cooktop (White)
6	Support, Element
7	Back Splash (White)
8	Brace, Support
9	Support Clips (4)
10	238614 Whirlpool Bumper Hinge
11	Hot Light
12	W10823698 Whirlpool Surface Element Right Rear
12	W10823699 Whirlpool Right Front Surface Element
12	W10823696 Whirlpool Radiant Surface Element
12	W10823697 Whirlpool Surface Element
15	Rod, Small Ceran Element
17	WP9781235 Whirlpool Clip
18	Rod, Large Ceran Element
21	Cover, Vent (White)
22	Clip, Vent Cover
23	8528351 Whirlpool Clip
25	Back Splash (Screw (4) 10AB x 1/2“)
26	Screw (4) 10 x 1/2
27	Screw, (4) 10PH-B x 3/4
