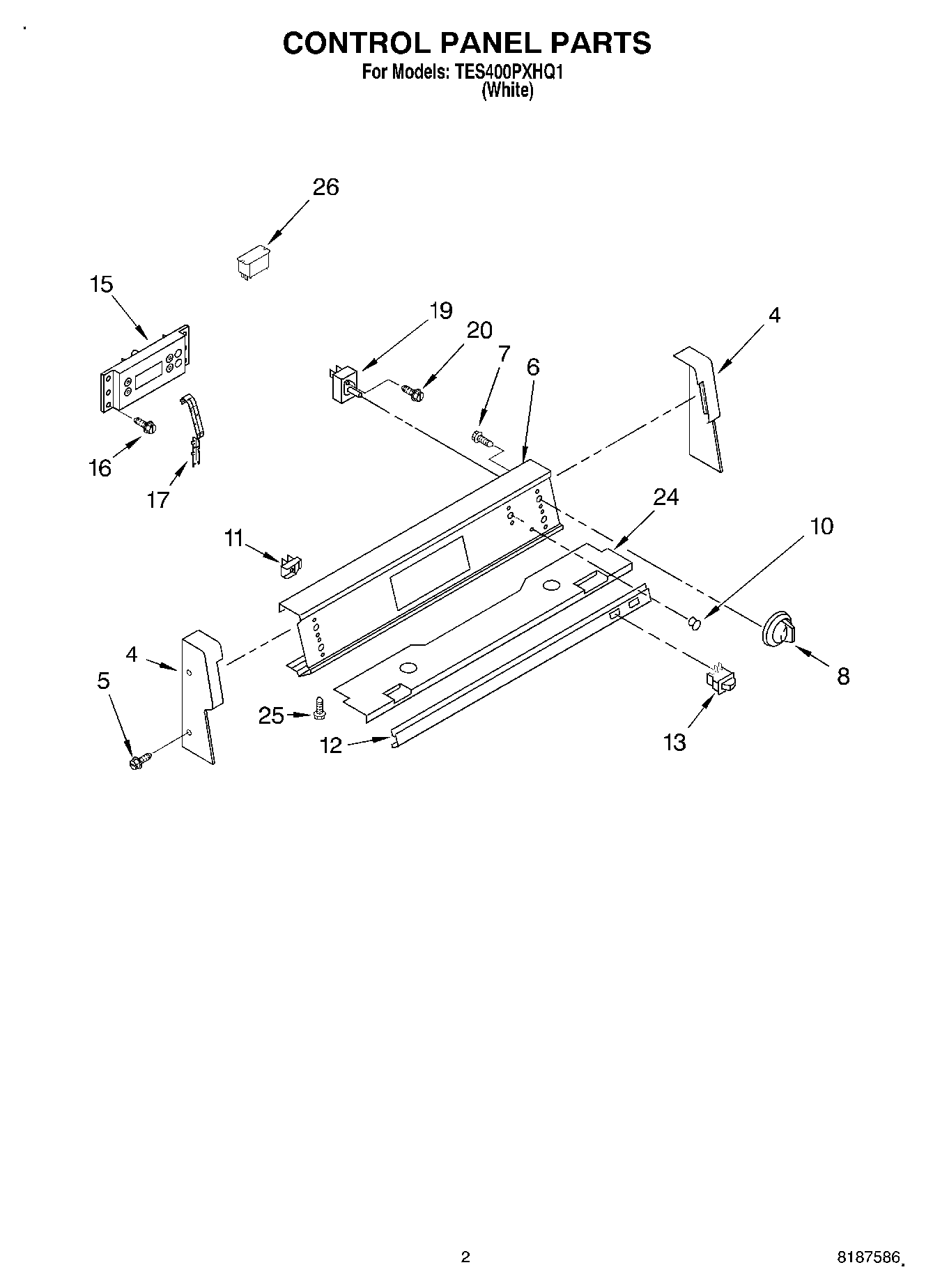

TES400PXHQ1 02 – CONTROL PANEL

Products

Position	Product
4	End Cap (Left)
4	End Cap (Right)
5	WP4159387 Whirlpool Compactor Screw
6	Panel, Control (White)
7	Panel, Control (Screw, (2) 8 x 3/8)
8	WP9752405FW Whirlpool Knob
10	WP9750343 Whirlpool Light Lens
11	Light, Indicator (Surface Unit (2))
12	Trim Strip
13	Switch, Warm Zone (White)
13	Switch, Simmer (White)
15	Timer (White)
16	Screw (4) 10 x 1/2
17	Bracket, Timer
19	WP9750639 Whirlpool Infinite Switch
19	WP9750638 Whirlpool Infinite Switch
19	WP9750641 Whirlpool Infinite Switch
20	WP3400882 Whirlpool Screw
24	Base, Console
25	WP3400832 Whirlpool Screw
26	Relay
