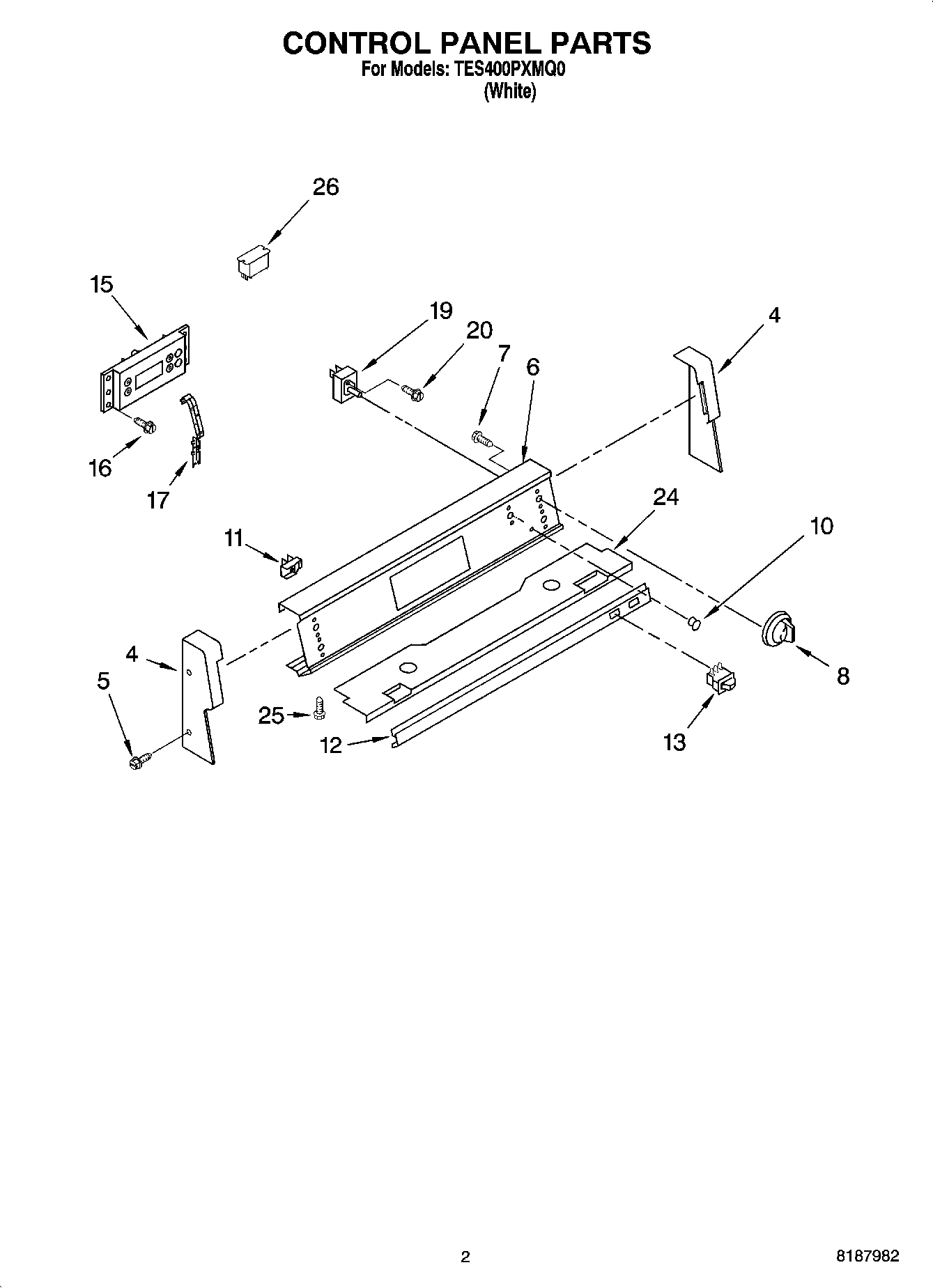

TES400PXMQ0 02 – CONTROL PANEL PARTS

TES400PXMQ0 02 – CONTROL PANEL PARTS

Written by

in

TES400PXMQ0 02 – CONTROL PANEL PARTS

Products

PositionProduct
4End Cap (Left)
4End Cap (Right)
5WP4159387 Whirlpool Compactor Screw
6Panel, Control (White)
7Panel, Control (Screw, (2) 8 x 3/8)
8WP9752405FW Whirlpool Knob
10WP9750343 Whirlpool Light Lens
11Light, Indicator (Surface Unit (2))
12Trim Strip
13Switch, Simmer (White)
13Switch, Rocker Illuminated (White On/Off)
15Timer
16Screw (4) 10 x 1/2
17Bracket, Timer
19WP9750638 Whirlpool Infinite Switch
19WP9750639 Whirlpool Infinite Switch
19WP9750641 Whirlpool Infinite Switch
20WP3400882 Whirlpool Screw
24Base, Console
25WP3400832 Whirlpool Screw
26Relay
