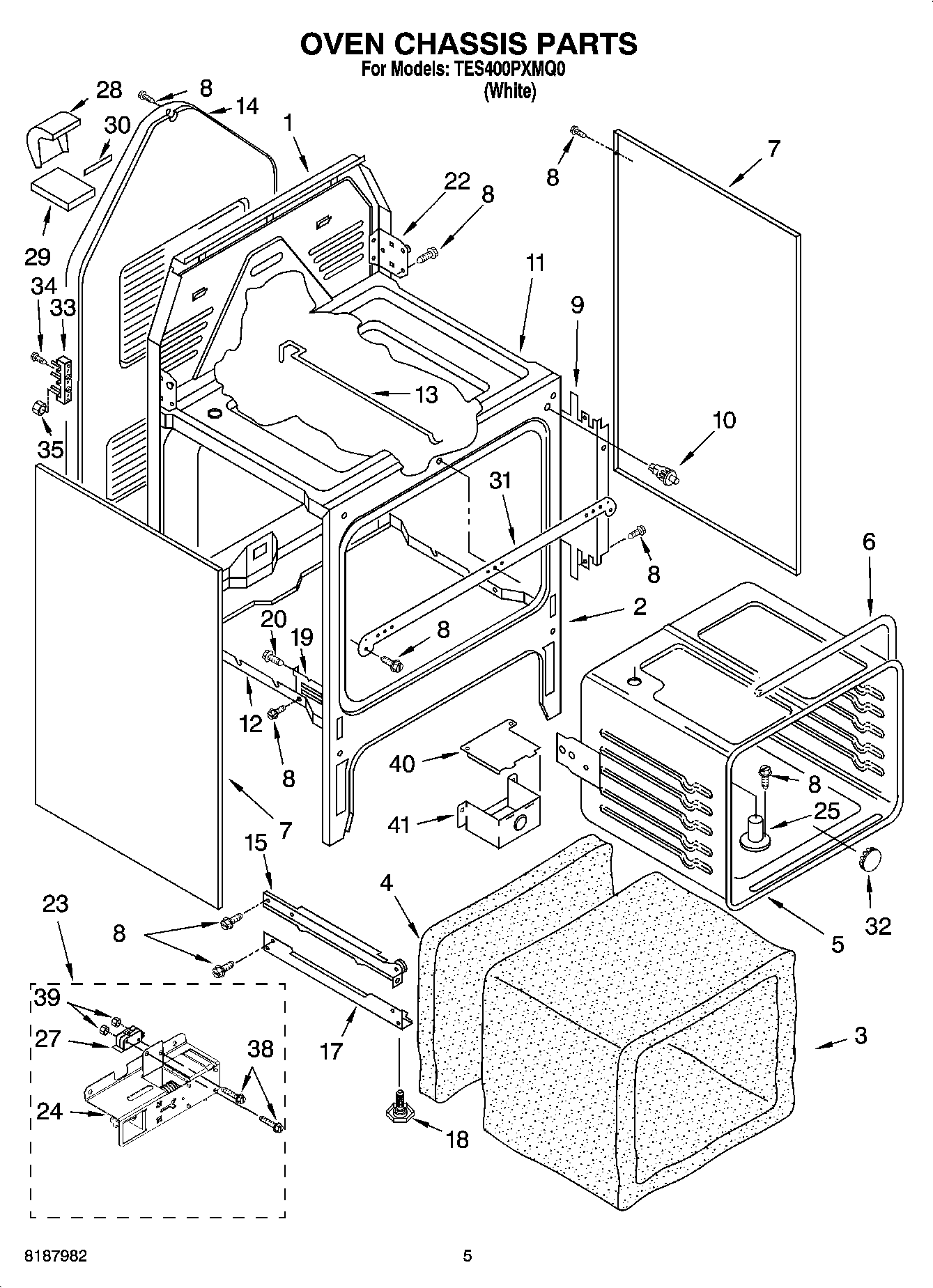

TES400PXMQ0 04 – OVEN CHASSIS PARTS

Products

Position	Product
1	Main Chassis, Back
2	Chassis, Front
3	Insulation, Wrap
4	Insulation, Rear
5	Oven Liner
6	Gasket, Oven
7	Body, Side (White)
8	WP4159387 Whirlpool Compactor Screw
9	Shield, Insulation
10	Door Switch (oven Light)
11	Burner Box
12	Oven Bottom
13	Rod, Lock
14	Panel, Rear
15	Rail, Drawer (Right)
15	Drawer Rail, Left
17	Bottom Rail (2)
18	WPW10058460 Whirlpool Appliance Levelling Leg
19	Hinge, Base L or R
20	Screw (4) 10 x 1/2
22	Hinge, Cktp.-Left
22	Hinge, Cktp.-Right
23	Oven Lock Assembly
24	Oven Lock Assembly
25	Vent Tube
27	Switch, Interlock
28	Back, Vent
29	Cover, Vent
30	Vent Gasket
31	Guard, Wire
32	Button, Plug
33	WP8203546 Whirlpool Terminal Block
34	Screw, (2) 10-16 x 1
35	WP112432 Whirlpool Nut Assembly
38	Screw, (2)
39	Nut (2)
40	WPL 9752344
41	Cover, Terminal Box
