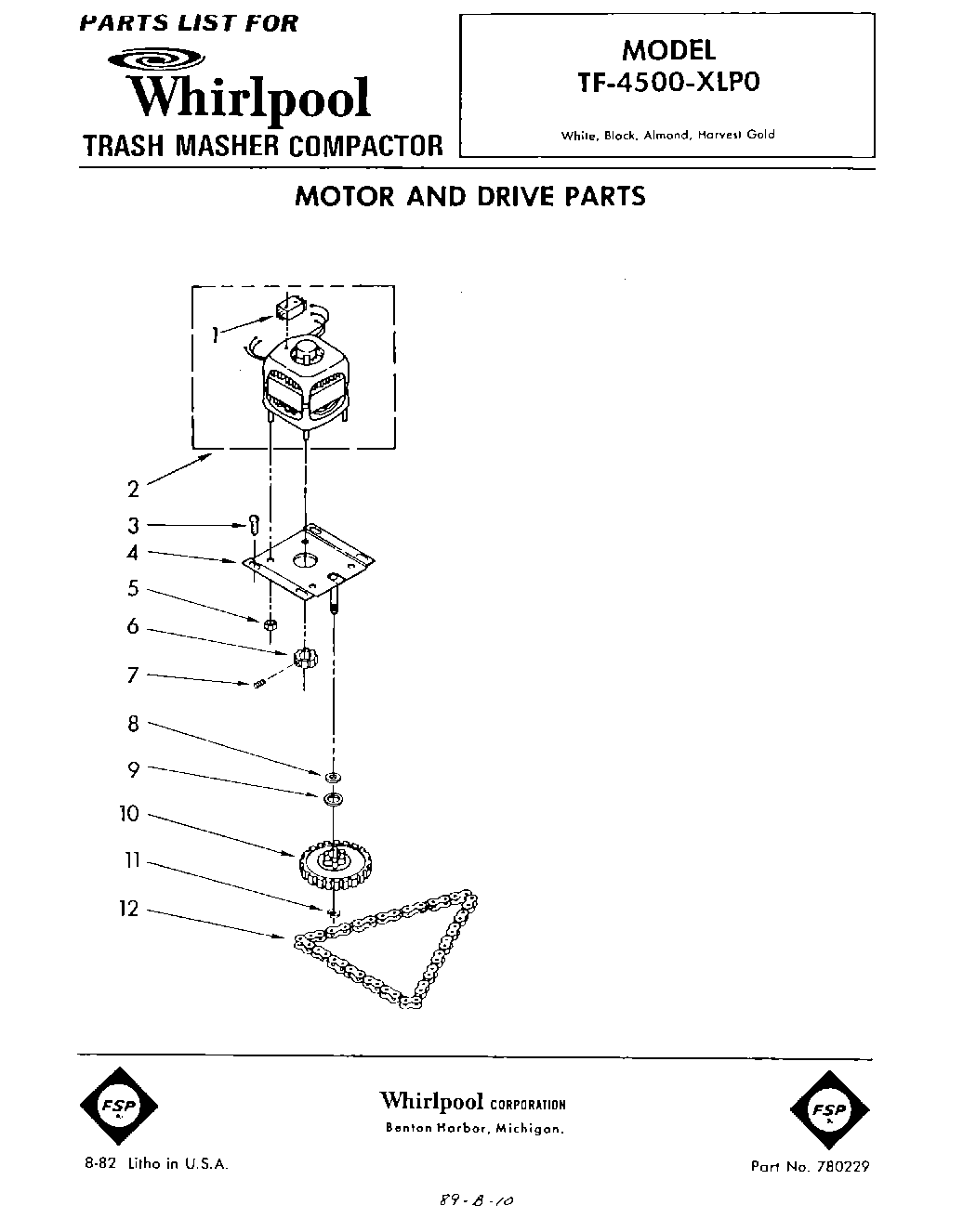

TF4500XLP0 01 – SECTION

Products

Position	Product
1	Switch Assembly (Use W/777709 Motor)
2	W10439651 Whirlpool Air Conditioner Motor Drive
3	Screw. 1/4-20 x 1/2 (4)
4	776327 Whirlpool Compactor Motor Plate
5	WP776338 Whirlpool Compactor Nut
6	GEAR KIT COMPACTOR
7	WP454512 Whirlpool Compactor Spring Pin
8	776035 Whirlpool Compactor Washer
9	W11214485 Whirlpool Compactor Washer
11	WP776036 Whirlpool Compactor Clip
12	Guide, Consumer Buy
12	Guide, Use & Care
12	Diagram, Wiring
12	Magnetron, 2M-172JB1 xxx (Includes Ill. No.7)
12	Instructions, Installation
12	Sheet, Tech (Service Information)
12	CHAIN-DRVE
