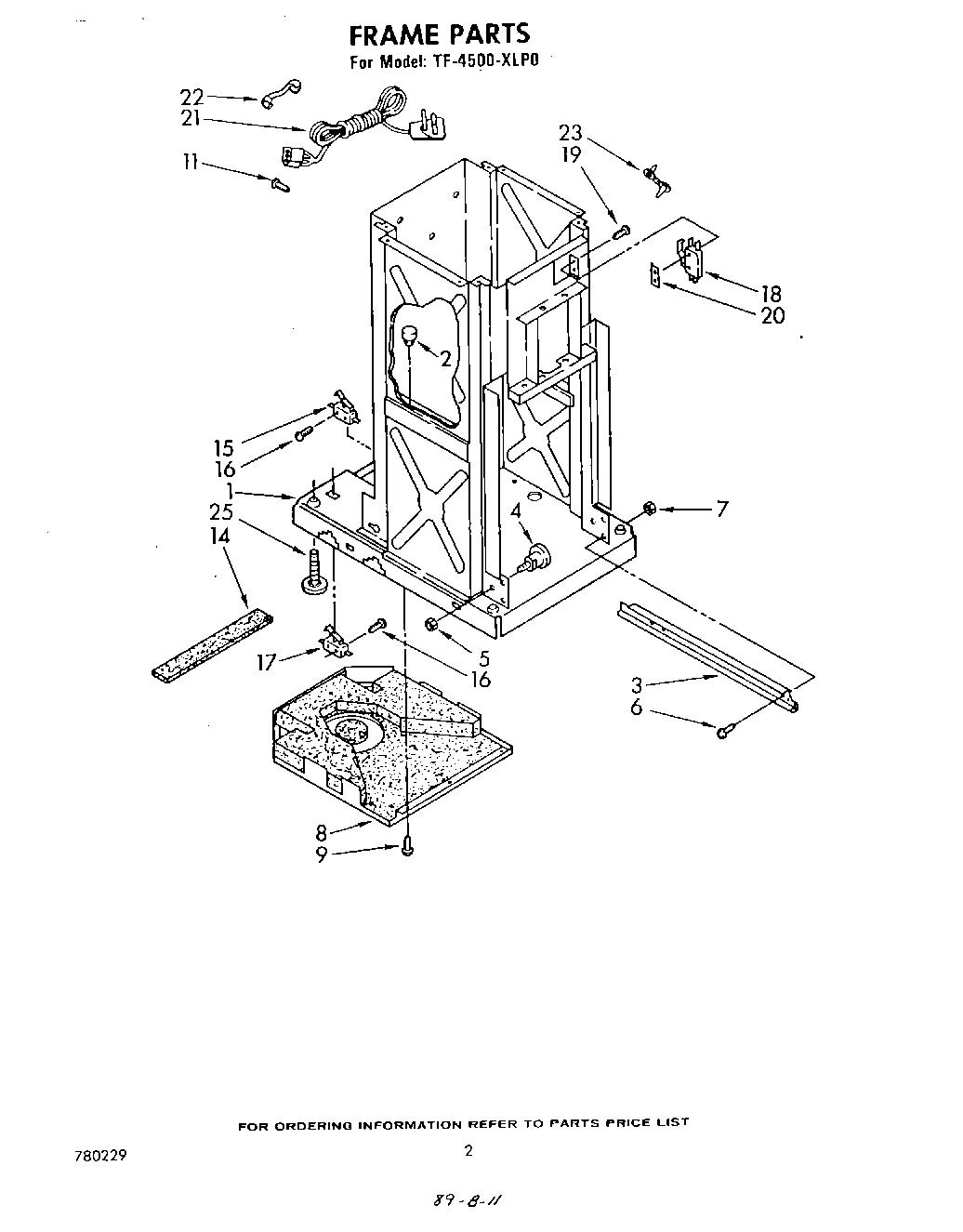

TF4500XLP0 02 – SECTION

Products

Position	Product
1	Frame (Not a Serviceable Part)
2	Bumper, Ram (4)
3	SLIDE
3	WP9870975 Whirlpool Compactor Slide
4	882688 Whirlpool Compactor Bearing
5	WP776356 Whirlpool Compactor Nut
6	WP486754 Whirlpool Compactor Screw
7	Nut, 6-32 (4)
8	WP780437 Whirlpool Compactor Bottom Pan
9	WP489069 Whirlpool Compactor Screw
11	WP488234 Whirlpool Air Conditioner Screw
14	Barrier, Glass
15	Switch, Drawer Safety
16	Screw, 6-32 x 7/8
17	Switch, Drawer Tilt
18	WP777811 Whirlpool Compactor Directional Switch
19	777849 Whirlpool Compactor Screw
20	Plate, Nut
21	Cord, Service
22	Bushing, Cord
23	Clamp, Wire
25	WPW10001130 Whirlpool Leveling Leg
