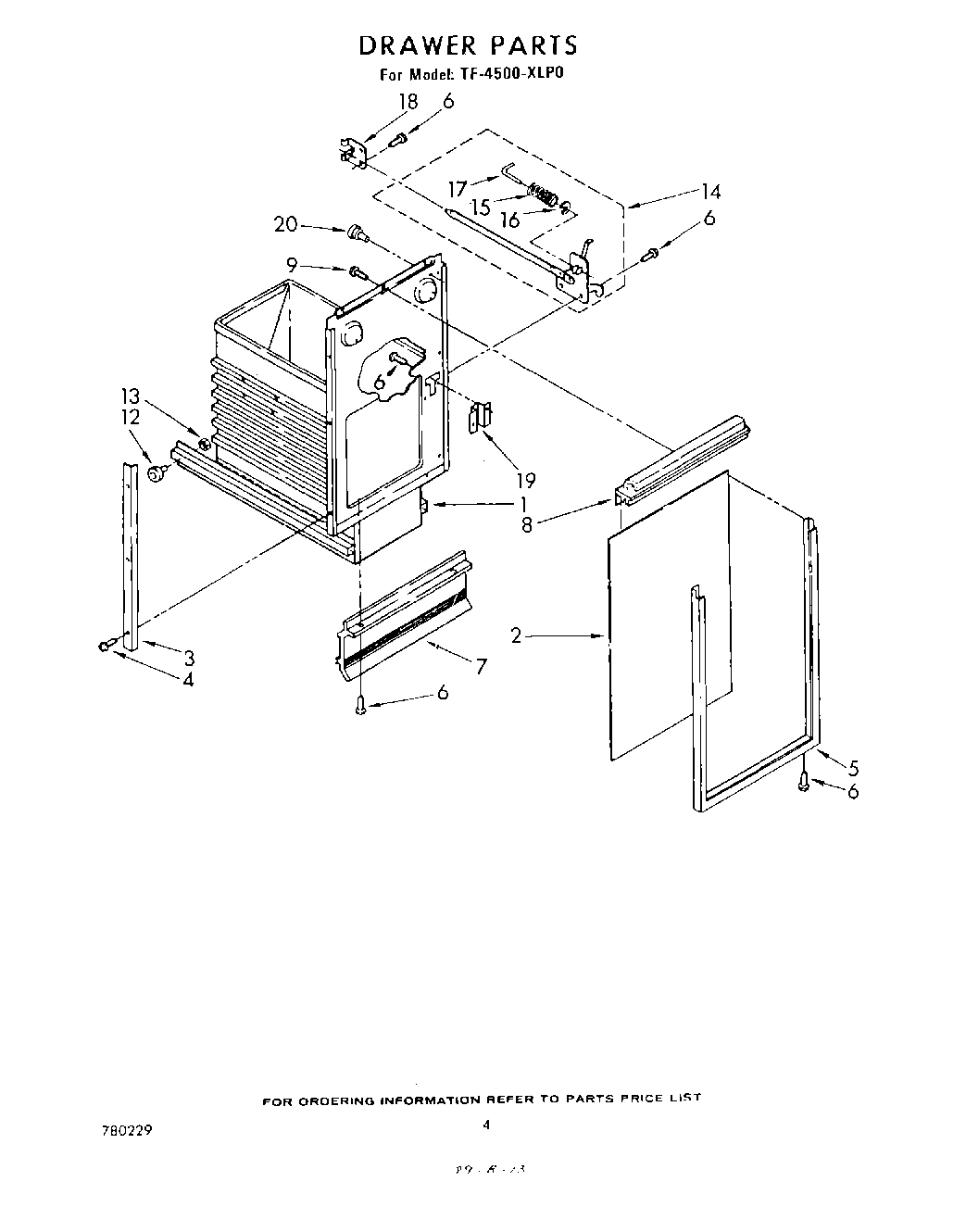

TF4500XLP0 04 – SECTION

Products

Position	Product
1	Container Assembly
2	Panel, Container Front (Black & White)
2	Panel, Container Front (Almond & Harvest Gold)
3	Plate, Trim (2)
4	Screw, 6-20 x 3/8
5	Trim, Container (Front)
6	WP489069 Whirlpool Compactor Screw
7	Plate, Toe
8	WP608732 Whirlpool Compactor Handle
12	WP9871602 Whirlpool Compactor Bearing
13	WP776356 Whirlpool Compactor Nut
14	675379 Whirlpool Compactor Drawer Latch
15	775736 Whirlpool Compactor Spring
16	Ring, “E“
17	Pin
18	WP776395 Whirlpool Compactor Guide
19	775665 Whirlpool Compactor Plate Latch
20	Bumper, Container (2)
