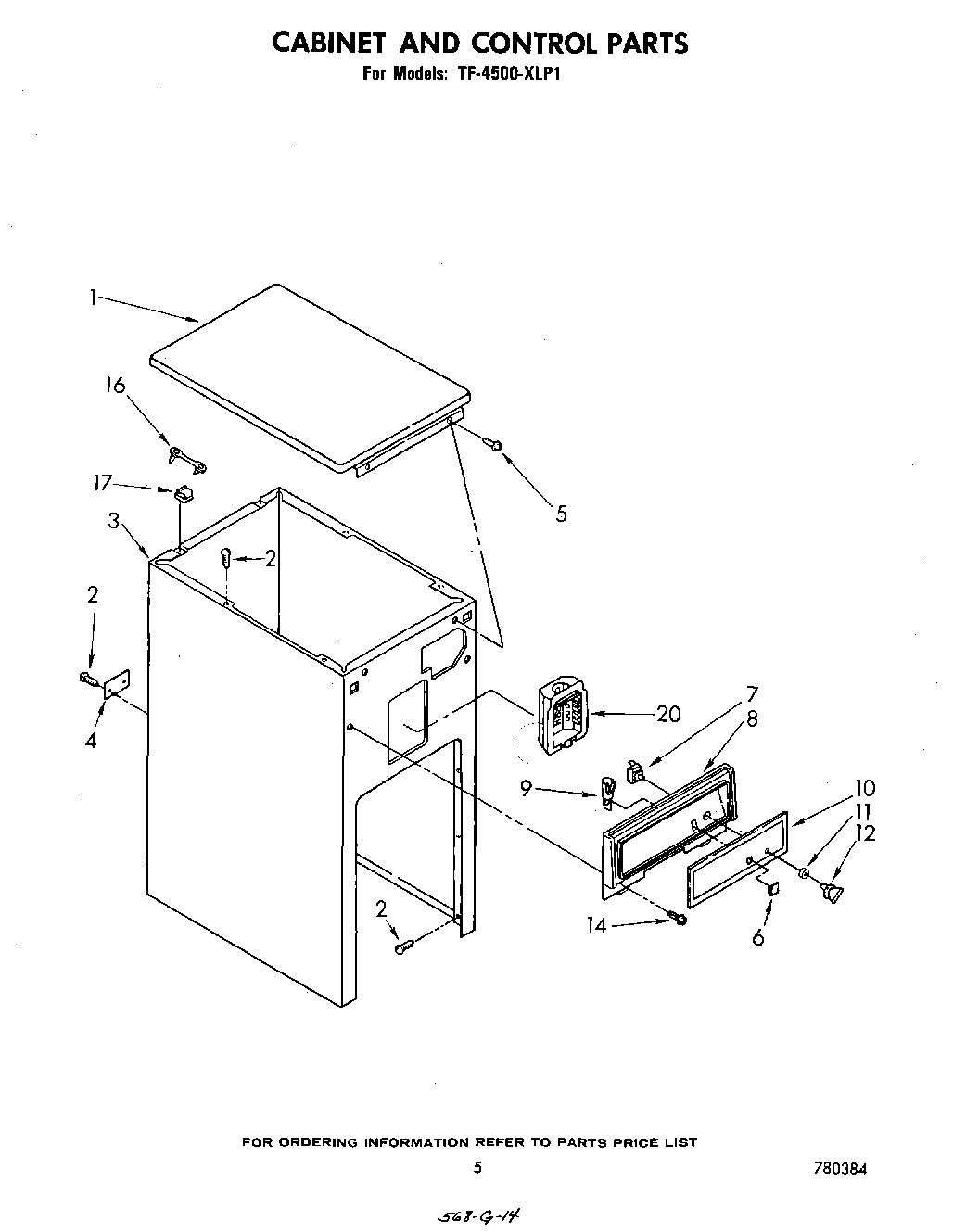

TF4500XLP1 05 – CABINET AND CONTROLadmin2025-04-26T11:21:58+00:00TF4500XLP1 05 – CABINET AND CONTROL
Products
| Position | Product |
|---|
| 1 | Top, Cabinet |
| 2 | WP489069 Whirlpool Compactor Screw |
| 3 | Cabinet |
| 4 | Plate, Power Cord |
| 5 | Screw, 8-18 x 1/2 |
| 6 | Lens, Indicator |
| 7 | 675382 Whirlpool Trash Compactor On Off Start Top Limit Switch |
| 8 | Escutcheon, Control |
| 9 | Light, Indicator |
| 10 | Insert, Escutcheon |
| 11 | WP777383 Whirlpool Compactor Nut |
| 12 | Knob, Rotary Switch |
| 14 | Screw, 6-20 x 3/8 (2) |
| 16 | Clamp, Wire |
| 17 | Clip, Top Mount (2) |
| 20 | Holder, Deodorant Storage |
