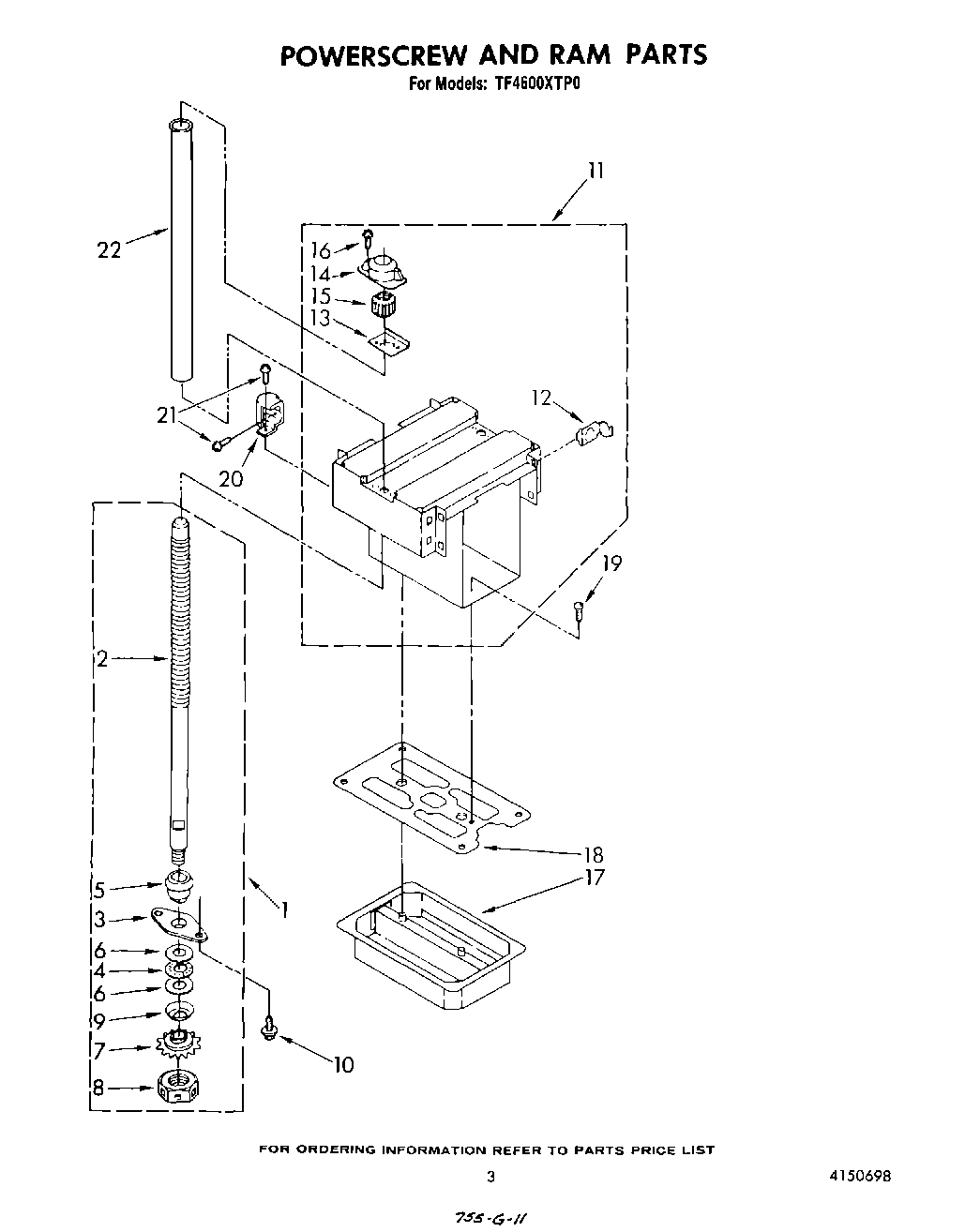

TF4600XTP0 03 – POWERSCREW AND RAM

Products

Position	Product
1	Screw, Power Complete Assembly (2)
2	Screw, Power (Available Only As Complete Assembly)
3	779121 Whirlpool Compactor Plate
4	W10917043 Whirlpool Compactor Bearing
5	776941 Whirlpool Compactor Power Crew Hub
6	775481 Whirlpool Compactor Bearing
7	SPROCKET
8	4154842 Whirlpool Compactor Nut
9	WP777332 Whirlpool Compactor Washer
10	Screw, 1/4-20 x 3/4 (4)
11	Ram Assembly
12	Pad, Ram (8)
13	Plate, Doubler (2)
14	Retainer, Nut (2)
15	WP777533 Whirlpool Trash Compactor Power Nut
16	WP3351614 Whirlpool Screw
17	Cover, Ram
18	Wiper, Ram
19	SCREW
20	Block, Container Stop
21	WP90767 Whirlpool Screw
22	Protector, Powerscrew (2)
