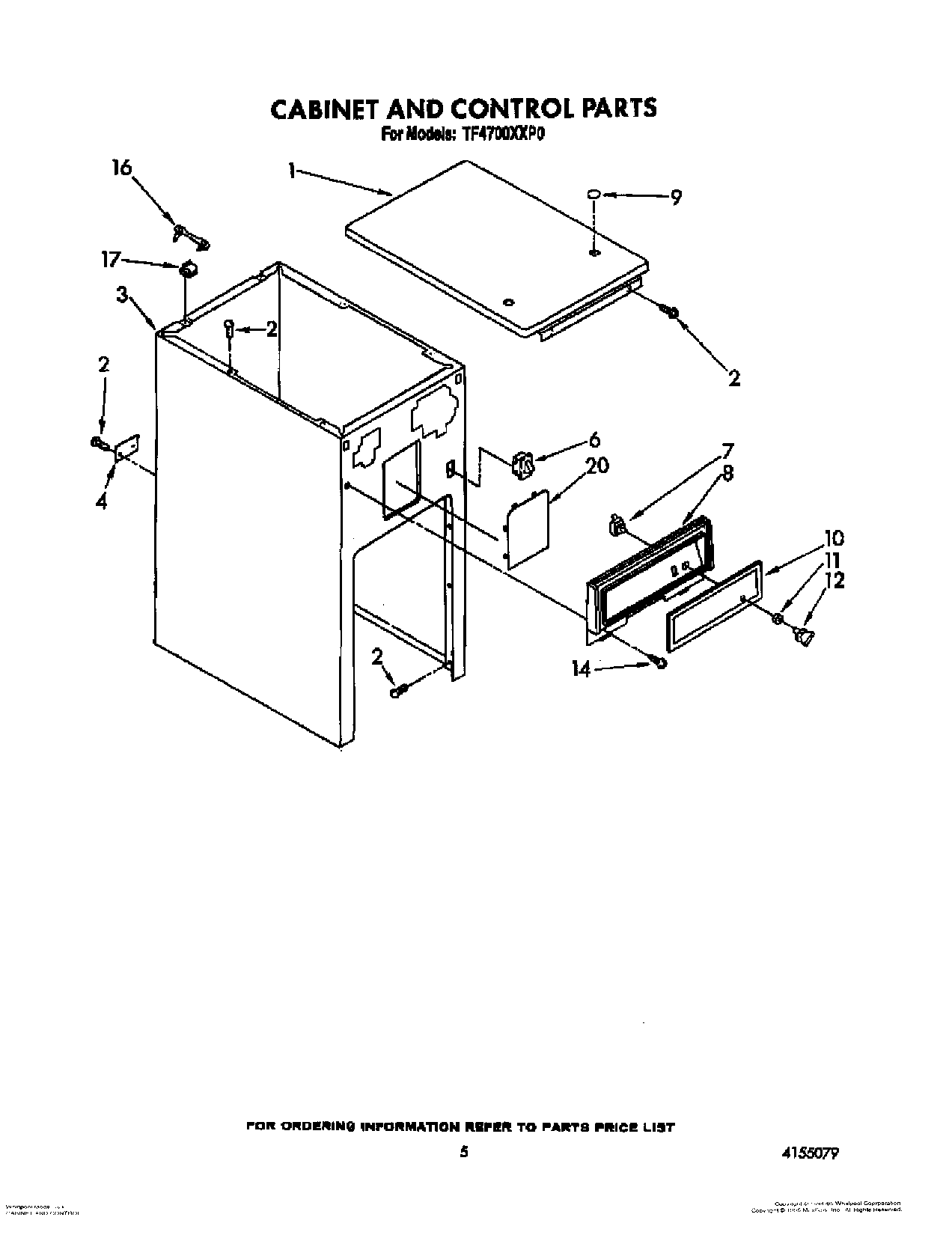

TF4700XXP0 05 – CABINET AND CONTROL

Products

PositionProduct
1Top, Cabinet Storage
2WP489069 Whirlpool Compactor Screw
3Cabinet
4Plate, Power Cord
6WP4387911 Whirlpool Refrigerator Switch
7675382 Whirlpool Trash Compactor On Off Start Top Limit Switch
8Escutcheon, Control
9Plug, Hole
10Insert, Decorative
11WP777383 Whirlpool Compactor Nut
12Knob, Rotary Switch
14Screw, 6-20 x 3/8 (2)
16Clamp, Wire
17Clip, Top Mount (2)
20Plate, Cover
