TF8500XLP0 04 – CABINET AND CONTROL

TF8500XLP0 04 – CABINET AND CONTROL

Written by

in

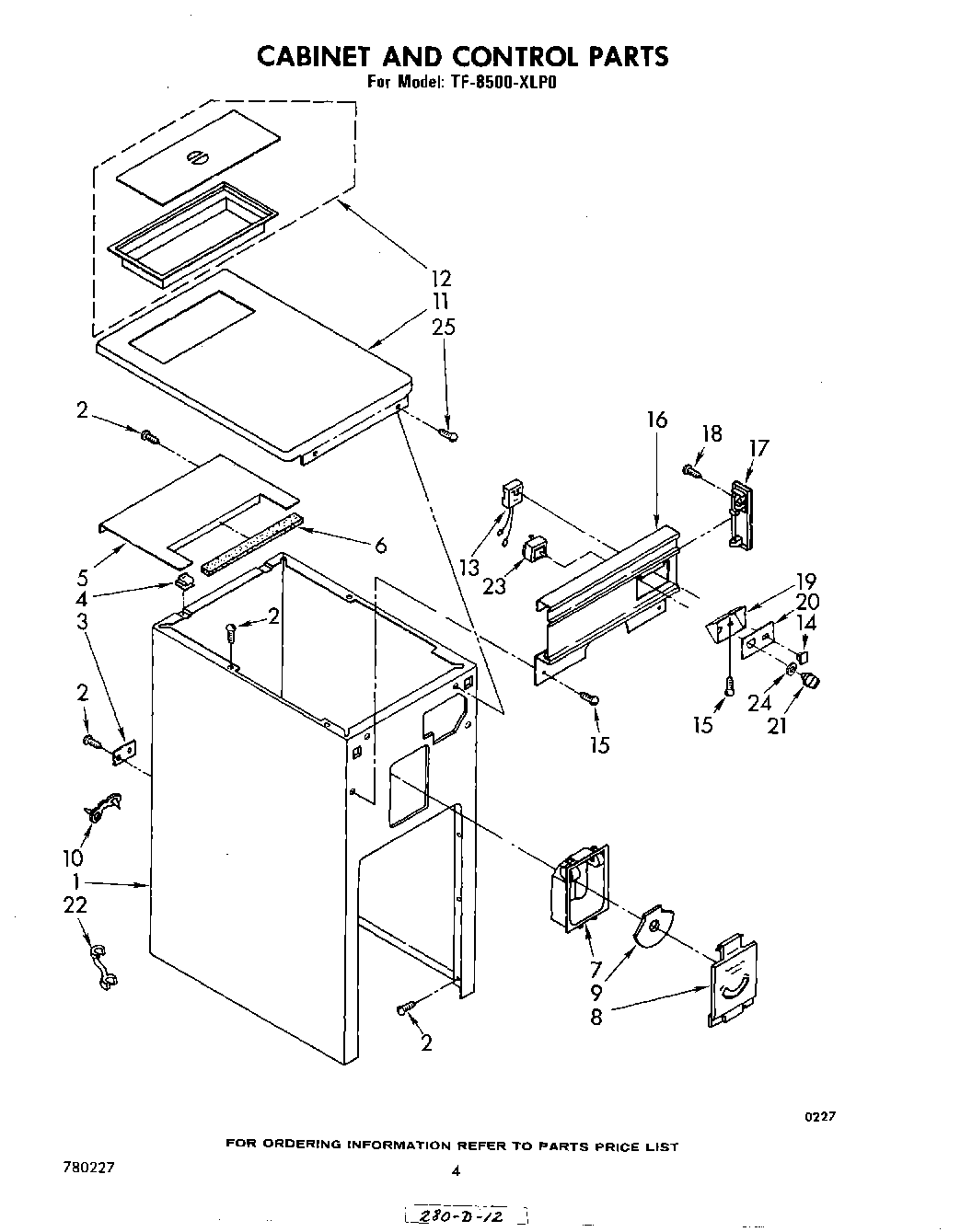

TF8500XLP0 04 – CABINET AND CONTROL

Products

PositionProduct
1Cabinet (Stanford Brown)
2WP489069 Whirlpool Compactor Screw
3Plate, Power Cord
4Clip, Top Mount (2)
5Plate, Bag Storage
6Barrier, Glass
7Compartment, Air Flow
8Cover, Air Flow
9Dail, Air Flow
10Clamp, Wire
11Top, Cabinet (Vinyl Clad)
12Frame & Lid Assembly
13Light, Indicator
14Lens, Indicator
15Screw, 6-20 x 3/8 (2)
16Escutcheon
17End Cap, Escutcheon R.H.
17End Cap, Escutcheon (L.H.)
19Bezel, Switch
20Inset, Bezel
21Knob, Rotary Switch
22Bushing, Cord
23675382 Whirlpool Trash Compactor On Off Start Top Limit Switch
24WP777383 Whirlpool Compactor Nut
25Screw, 8-18 x 1/2
