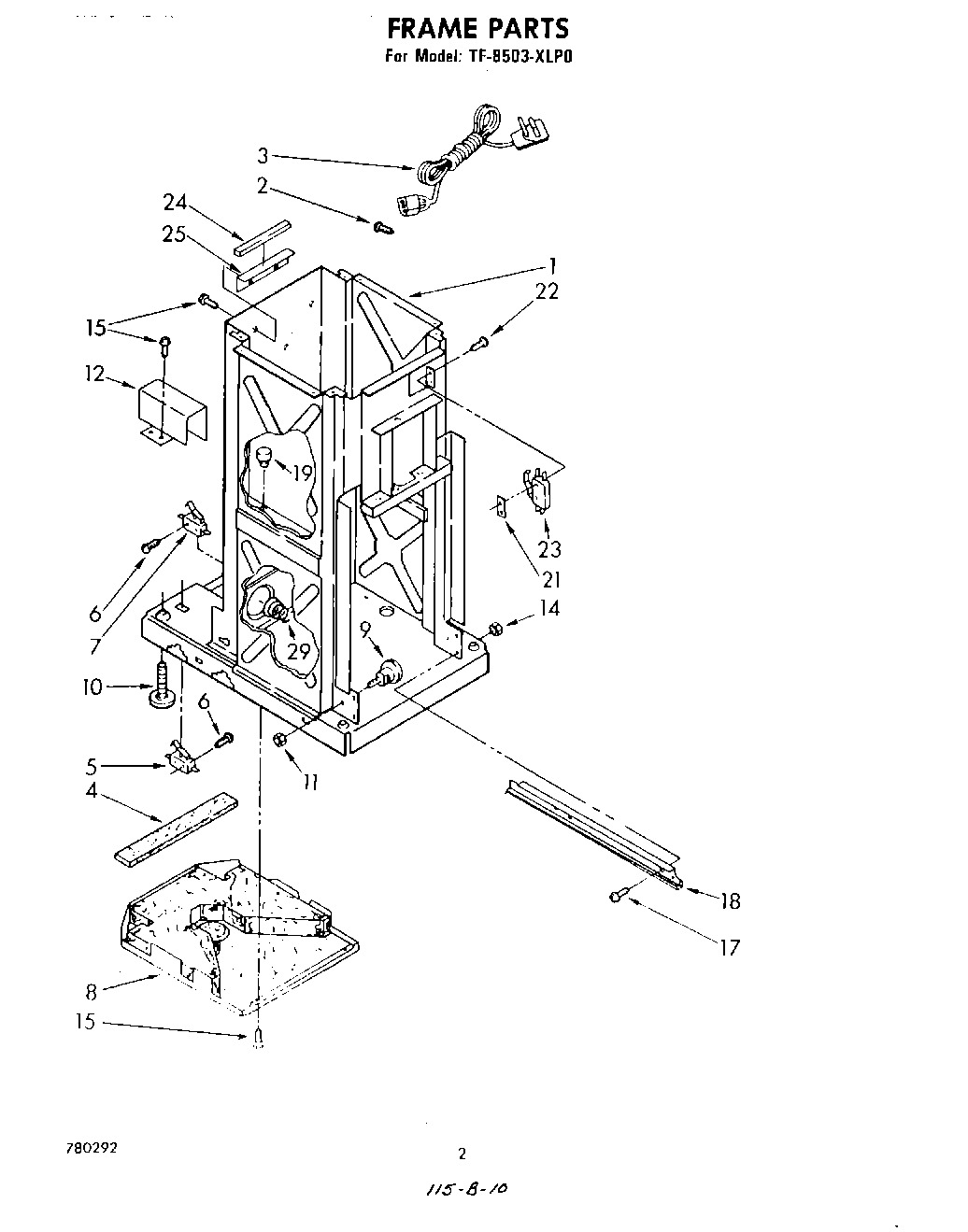

TF8503XLP0 02 – FRAME

Products

Position	Product
1	Frame (Not a Serviceable Part)
2	WP488234 Whirlpool Air Conditioner Screw
3	Cord, Service
4	Barrier, Glass
5	Switch, Drawer Tilt
6	Screw, 6-32 x 7/8
7	Switch, Drawer Safety
8	WP780437 Whirlpool Compactor Bottom Pan
9	882688 Whirlpool Compactor Bearing
10	WPW10001130 Whirlpool Leveling Leg
11	WP776356 Whirlpool Compactor Nut
12	Shield, Slide Track (2)
14	Nut, 6-32 (4)
15	WP489069 Whirlpool Compactor Screw
17	WP486754 Whirlpool Compactor Screw
18	SLIDE
18	WP9870975 Whirlpool Compactor Slide
19	Bumper, Ram (4)
21	Plate, Nut
22	777849 Whirlpool Compactor Screw
23	WP777811 Whirlpool Compactor Directional Switch
24	Pad, Top Support
25	Angle, Top Support
29	WP777180 Whirlpool Compactor Spring
