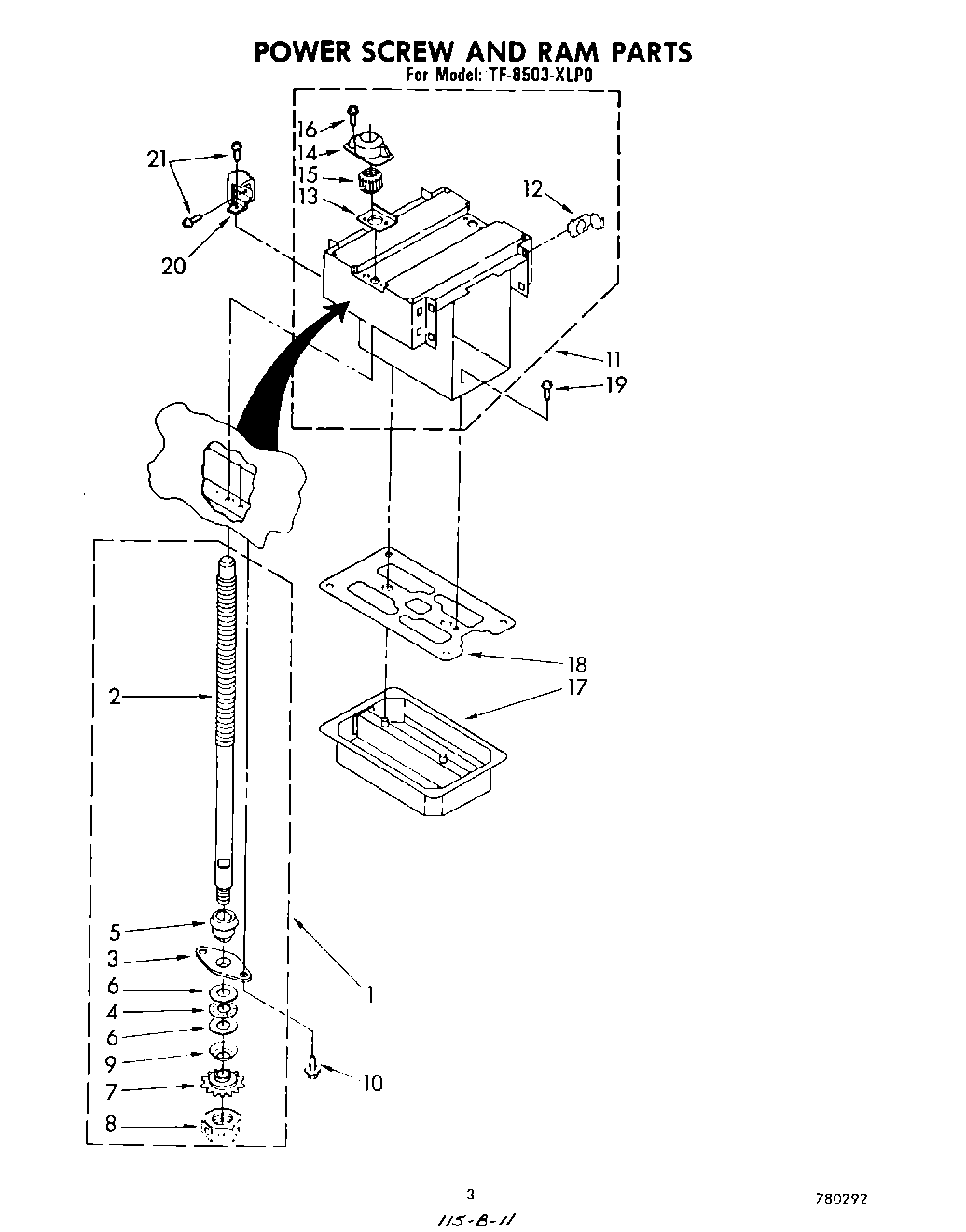

TF8503XLP0 03 – POWER SCREW AND RAM

Products

PositionProduct
1Screw, Power Complete Assembly (2)
2Screw, Power (Available Only As Complete Assembly)
3779121 Whirlpool Compactor Plate
4W10917043 Whirlpool Compactor Bearing
5776941 Whirlpool Compactor Power Crew Hub
6775481 Whirlpool Compactor Bearing
7SPROCKET
84154842 Whirlpool Compactor Nut
9WP777332 Whirlpool Compactor Washer
10Screw, 1/4-20 x 3/4 (4)
11Ram Assembly
12Pad, Ram (8)
13Plate, Doubler (2)
14Retainer, Nut (2)
15WP777533 Whirlpool Trash Compactor Power Nut
16WP3351614 Whirlpool Screw
17Cover, Ram
18Wiper, Ram
19SCREW
20Block, Container Stop
2172110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
21Paint, Touch-Up 1/2 Oz. (Stanford Brown)
21WPL 675167
21Platinum
21Harness, Wiring
21Toast
21Paint, Spray 13 Oz. (Stanford Brown)
21Paint, Spray 13 Oz. (Avocado)
2172017 Whirlpool Appliance Touch-Up Paint White
21WP72107 Whirlpool Touchup
21WP90767 Whirlpool Screw
2172113 Whirlpool Touch-Up Paint
21Golden Harvest
21WPL 72112
21350930 Whirlpool White Spray Paint
21Deodorizer, Solid Stick-Ups (2-Pack)
21675351 Whirlpool Compactor Grease
21285006 Whirlpool Spray
2172032 Whirlpool Touch Up Paint Black
2172109 Whirlpool Dacor Avocado Touch-Up Paint
21Paint, Touch-Up 1/2 Oz. (Coffee)
21paint, spray 13 oz. (coffee)
21350956 Whirlpool Spray Assembly
