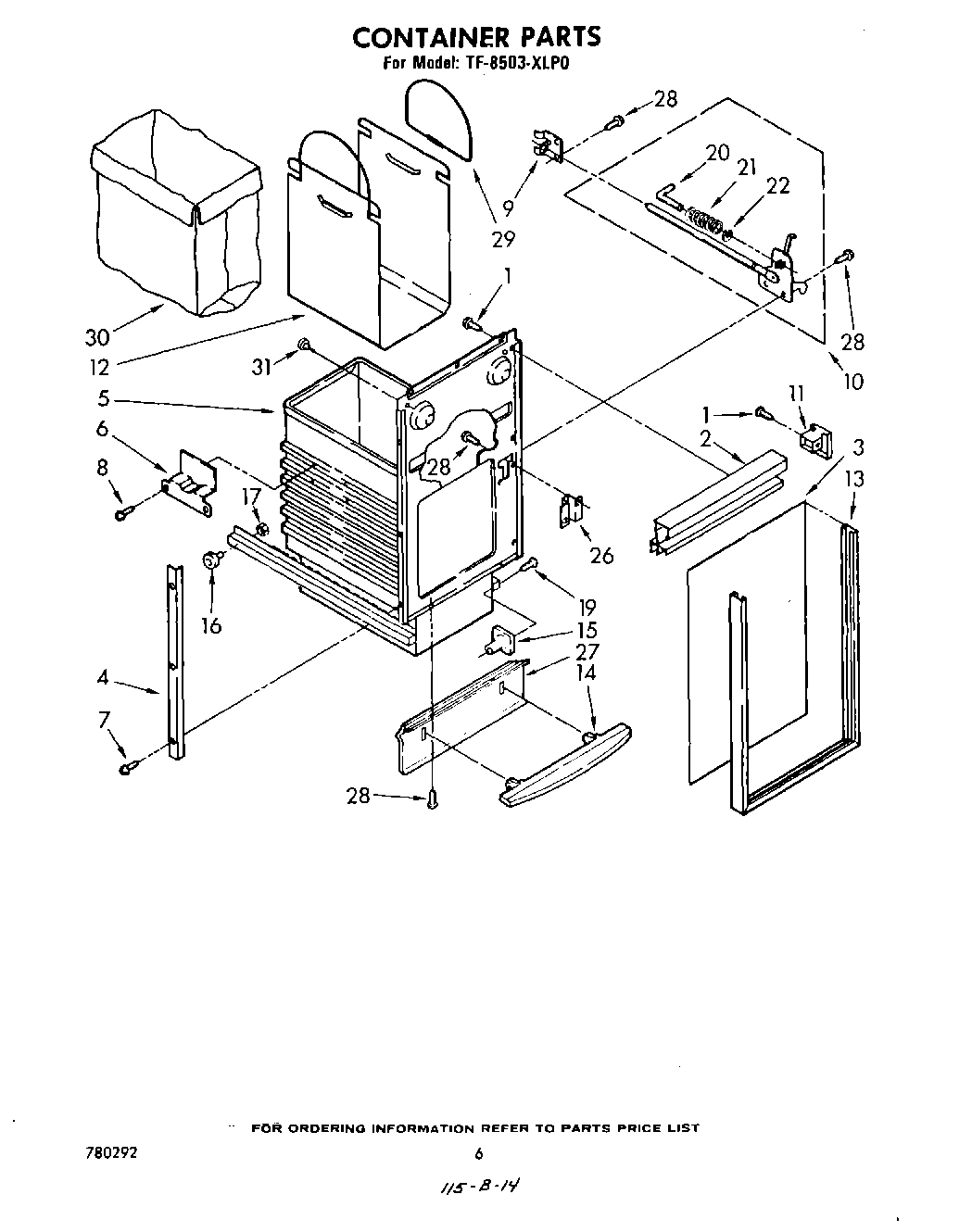

TF8503XLP0 05 – CONTAINER

Products

Position	Product
2	Handle, Container
3	Panel, Container Front (Almond & Harvest Gold)
3	Panel, Container Front (Platinum & Toast)
3	Panel, Container Front (Black & White)
4	Plate, Trim (2)
5	Container Assembly
6	Cam, Spray Actuator (2)
7	Screw, 6-20 x 3/8
9	WP776395 Whirlpool Compactor Guide
10	675379 Whirlpool Compactor Drawer Latch
11	Cap, Handle L.H.
11	Cap, Handle R.H.
12	13030RP Whirlpool Compactor Bag Caddy
13	Trim, Container (Front)
14	882657 Whirlpool Compactor Foot Pedal
15	Plate, Nut Assembly
16	WP9871602 Whirlpool Compactor Bearing
17	WP776356 Whirlpool Compactor Nut
19	Screw, Shoulder No.8-18 x 1/2 (2)
20	Pin
21	775736 Whirlpool Compactor Spring
22	Ring, ``E``
26	775665 Whirlpool Compactor Plate Latch
27	WP777328 Whirlpool Compactor Guard
28	WP489069 Whirlpool Compactor Screw
29	WP777108 Whirlpool Compactor Bag Handle
30	15PK-15"COMP BGS W/ODOR
31	Bumper, Container (2)
