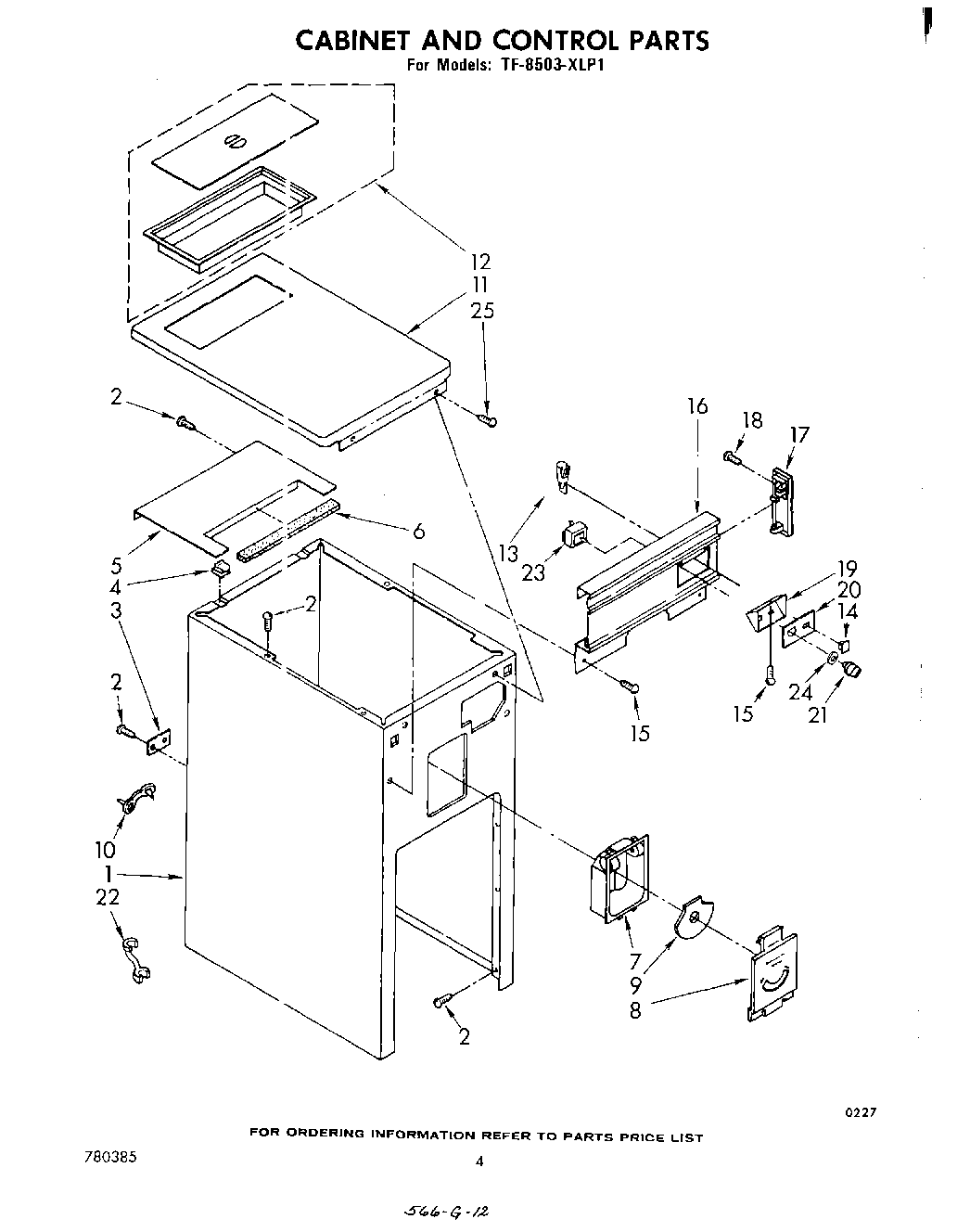

TF8503XLP1 04 – CABINET AND CONTROLadmin2025-04-26T11:21:54+00:00TF8503XLP1 04 – CABINET AND CONTROL
Products
| Position | Product |
|---|
| 1 | Cabinet |
| 2 | WP489069 Whirlpool Compactor Screw |
| 3 | Plate, Power Cord |
| 4 | Clip, Top Mount (2) |
| 5 | Plate, Bag Storage |
| 6 | Barrier, Glass |
| 7 | Compartment, Air Flow |
| 8 | Cover, Air Flow |
| 9 | Dail, Air Flow |
| 10 | Clamp, Wire |
| 11 | Top, Cabinet (Vinyl Clad) |
| 12 | Frame & Lid Assembly |
| 13 | Light, Indicator |
| 14 | Lens, Indicator Light |
| 15 | Screw, 6-20 x 3/8 (2) |
| 16 | Escutcheon |
| 17 | End Cap, Escutcheon R.H. |
| 17 | End Cap, Escutcheon (L.H.) |
| 19 | Bezel, Switch |
| 20 | Inset, Bezel |
| 21 | Knob, Rotary Switch |
| 22 | Bushing, Cord |
| 23 | 675382 Whirlpool Trash Compactor On Off Start Top Limit Switch |
| 24 | WP777383 Whirlpool Compactor Nut |
| 25 | 72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz |
| 25 | Harness, Wiring |
| 25 | Toast |
| 25 | Platinum |
| 25 | paint, spray 13 oz. (coffee) |
| 25 | Screw, 8-18 x 1/2 |
| 25 | 72017 Whirlpool Appliance Touch-Up Paint White |
| 25 | WP72107 Whirlpool Touchup |
| 25 | 72113 Whirlpool Touch-Up Paint |
| 25 | Golden Harvest |
| 25 | WPL 72112 |
| 25 | 350930 Whirlpool White Spray Paint |
| 25 | Deodorizer, Solid Stick-Ups (2-Pack) |
| 25 | 675351 Whirlpool Compactor Grease |
| 25 | 285006 Whirlpool Spray |
| 25 | 72032 Whirlpool Touch Up Paint Black |
| 25 | 72109 Whirlpool Dacor Avocado Touch-Up Paint |
| 25 | Paint, Touch-Up 1/2 Oz. (Coffee) |
| 25 | Paint, Spray 13 Oz. (Avocado) |
| 25 | Paint, Spray 13 Oz. (Stanford Brown) |
| 25 | Paint, Touch-Up 1/2 Oz. (Stanford Brown) |
| 25 | WPL 675167 |
| 25 | 350956 Whirlpool Spray Assembly |
