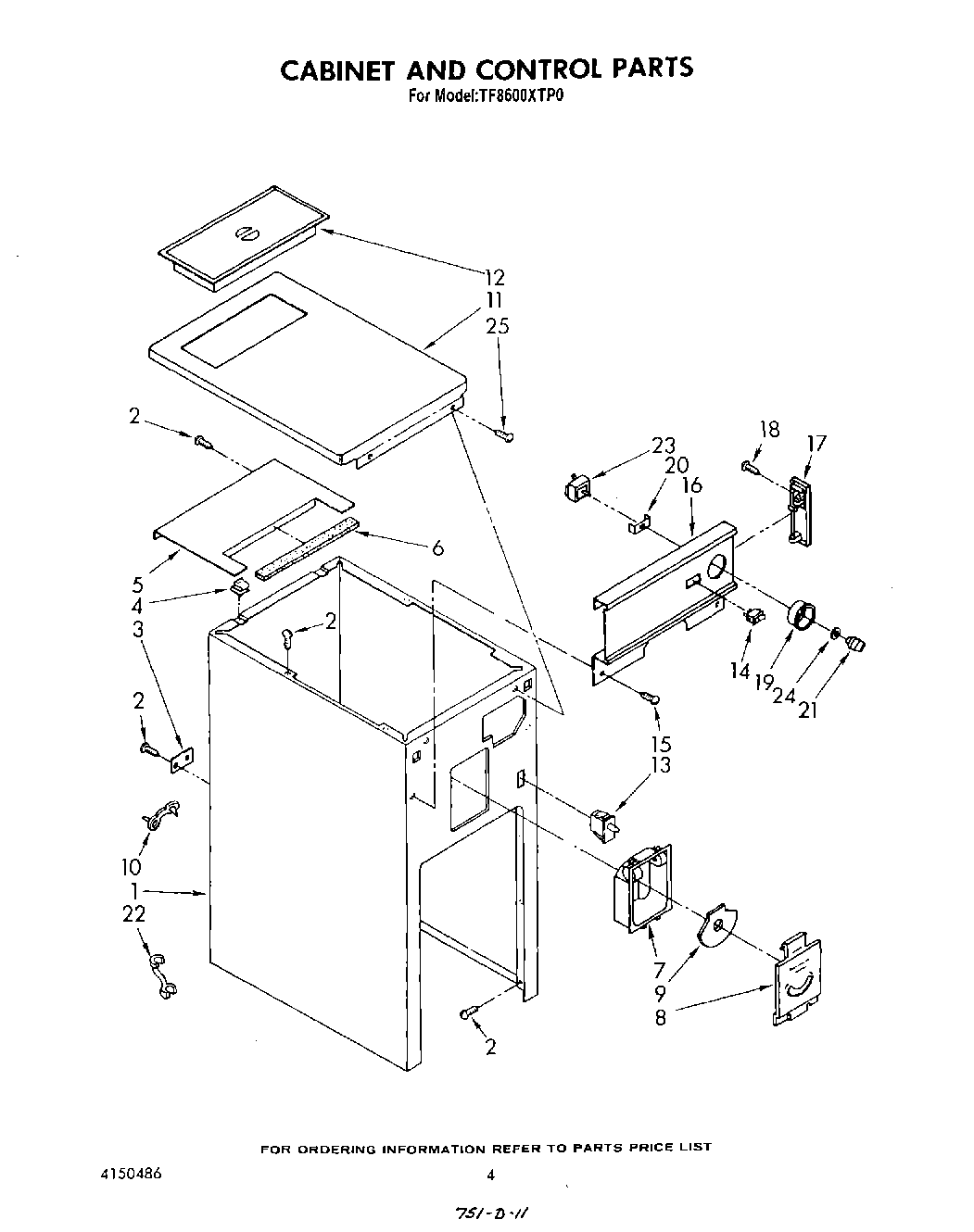

TF8600XTP0 04 – CABINET AND CONTROL

TF8600XTP0 04 – CABINET AND CONTROL

Written by

in

TF8600XTP0 04 – CABINET AND CONTROL

Products

PositionProduct
1Cabinet
2WP489069 Whirlpool Compactor Screw
3Plate, Power Cord
4Clip, Top Mount (2)
5Plate, Bag Storage
6Barrier, Glass
7Compartment, Air Flow
8Cover, Air Flow
9Dail, Air Flow
10Clamp, Wire
11Top, Cabinet
12Frame & Lid Assembly
13Switch, Drawer Tilt
14WP4314961 Whirlpool Lite Switch
15Screw, 6-20 x 3/8 (2)
16Escutcheon, Control
17End Cap, Escutcheon R.H.
17End Cap, Escutcheon (L.H.)
19Bezel
20Bracket, Switch
21776594 Whirlpool Power Switch Knob
22Bushing, Cord
23675382 Whirlpool Trash Compactor On Off Start Top Limit Switch
24WP777383 Whirlpool Compactor Nut
25Screw, 8-18 x 1/2
