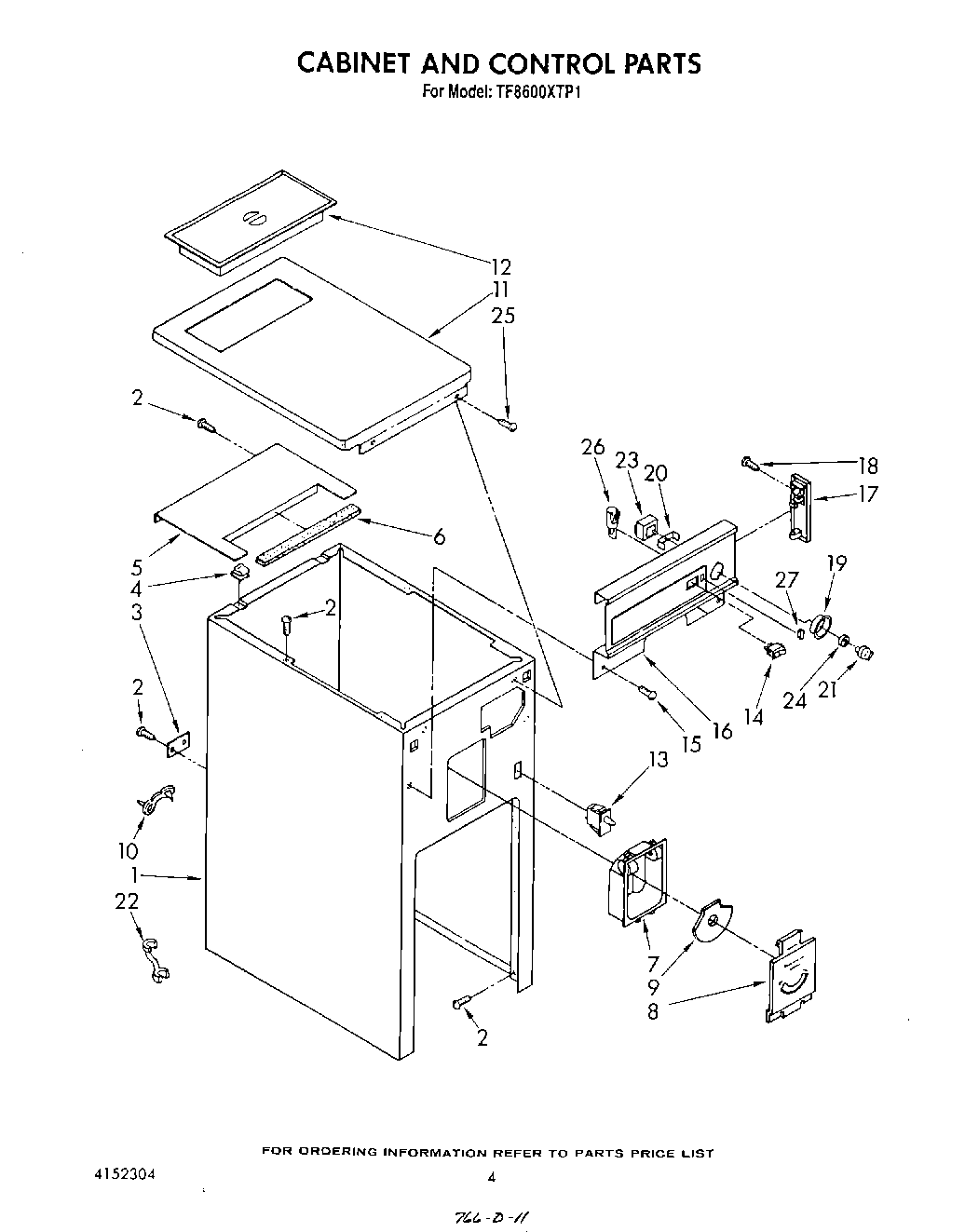

TF8600XTP1 04 – CABINET AND CONTROLadmin2025-04-26T11:21:45+00:00TF8600XTP1 04 – CABINET AND CONTROL
Products
| Position | Product |
|---|
| 1 | Cabinet |
| 2 | WP489069 Whirlpool Compactor Screw |
| 3 | Plate, Power Cord |
| 4 | Clip, Top Mount (2) |
| 5 | Plate, Bag Storage |
| 6 | Barrier, Glass |
| 7 | Compartment, Air Flow |
| 8 | Cover, Air Flow |
| 9 | Dail, Air Flow |
| 10 | Clamp, Wire |
| 11 | Top, Cabinet |
| 12 | Frame & Lid Assembly |
| 13 | WP4387911 Whirlpool Refrigerator Switch |
| 14 | WP4314961 Whirlpool Lite Switch |
| 15 | Screw, 6-20 x 3/8 (2) |
| 16 | Escutcheon, Control |
| 17 | End Cap, Escutcheon (L.H.) |
| 17 | End Cap, Escutcheon R.H. |
| 19 | Bezel |
| 20 | Bracket, Switch |
| 21 | 776594 Whirlpool Power Switch Knob |
| 22 | Bushing, Cord |
| 23 | 675382 Whirlpool Trash Compactor On Off Start Top Limit Switch |
| 24 | WP777383 Whirlpool Compactor Nut |
| 25 | Screw, 8-18 x 1/2 |
| 26 | Light, Indicator |
| 27 | Lens, Indicator |
