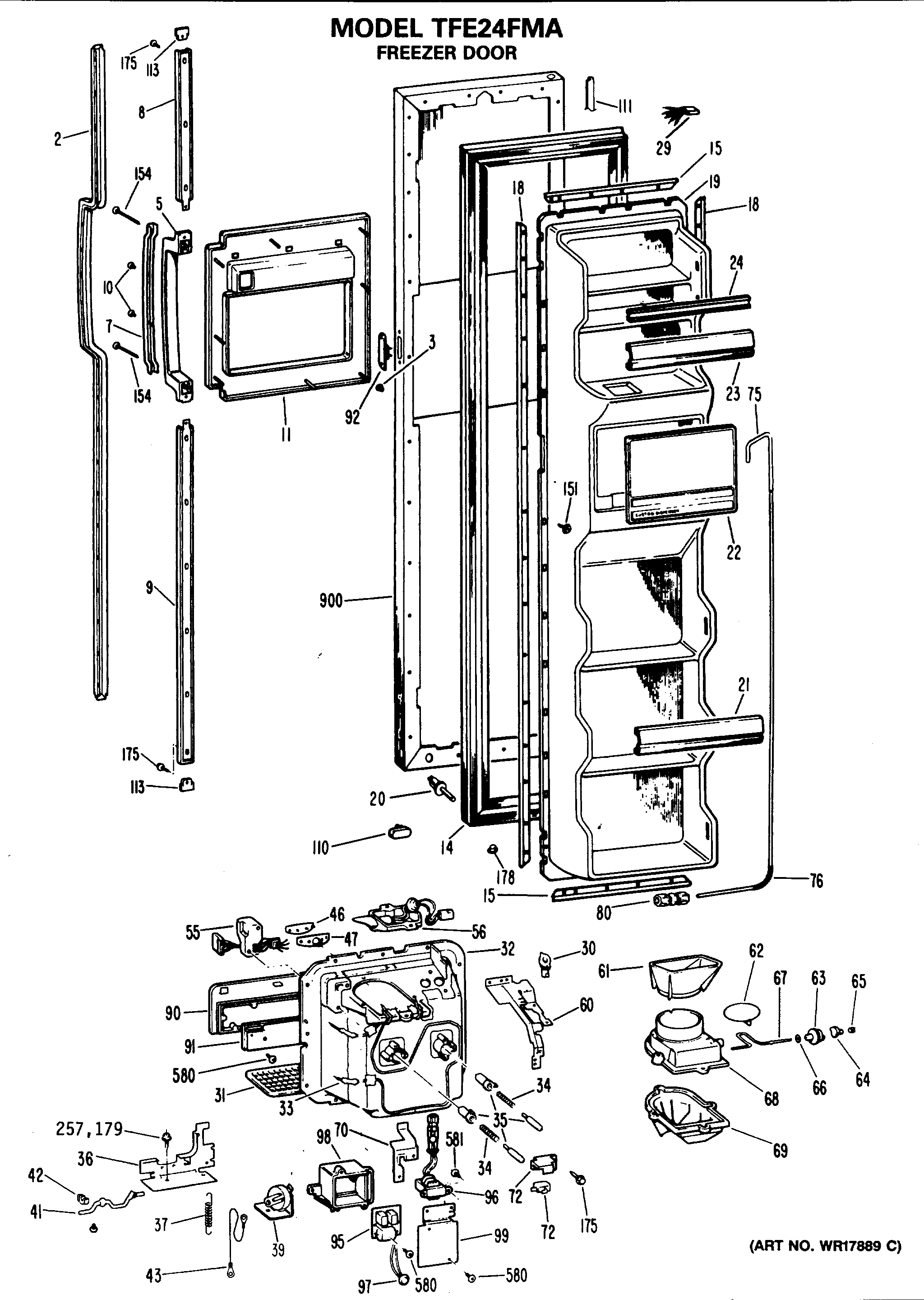

TFE24FMA FREEZER DOOR

TFE24FMA FREEZER DOOR

Written by

in

TFE24FMA FREEZER DOOR

Products

PositionProduct
1GEN 49-6672
2GEN WR12X0622
3GEN WR02X3757
5GEN WR12X0618
7GEN WR12X0620
8GEN WR12X0621
9GEN WR12X0616
10GEN WR01X1766
11GEN WR01X5469
11GEN WR38X1314
14GEN WR24X5233
15GEN WR17X1167
18GEN WR17X1169
19GEN WR77X0525
20GEN WR23X0161
21GEN WR17X2508
22GEN WR17X2504
23GEN WR17X2509
24GEN WR17X2510
29GEN WR49X0308
29HARNESS- O DOOR RECESS
30GROMMET WATER FILL RECES
31GEN WR02X3953
32RECESS DISPENSER(BLACK)
32GEN WR14X0403
33GEN WR51X0337
34SPRING-RECESS DUCT
35GEN WR02X6325
36GEN WR02X8414
37GEN WR02X8403
39GEN WR09X0506
41GEN WR17X2820
42GEN WR02X4234
43WR2X8441 GE Refrigerator Lanyard Assembly
46GEN WR02X8471
47GEN WR02X3948
55HARNESS & HOUSING-RECESS
56LAMP 7C7
56GEN WR02X7910
56INSULATOR HOUSING
60GEN WR02X7244
61GEN WR17X1261
62DUCT DOOR W/O LEVER
63PULLEY TIME DELAY
64ARM TIME DELAY DISPLAY
65RING COMPRESSION
66WASHER
67CRANK DOOR DUCT DISP
68GASKET DUCT-R. SIDE
68DUCT RECESS
68GASKET DUCT-L. SIDE
69GEN WR17X5881
72SWITCH SELECT-CUBES DISP
72GEN WR02X7942
75GEN WR17X1408
76GEN WR02X4633
80GEN WR02X4265
80GEN WR02X8473
90GEN WR55X0024
91BOARD ASM LOGIC
91GEN WR02X7314
91GEN WR02X7313
92SENSOR DOOR FF & FZ
95BOARD ASM POWER SUPPLY
96GEN WR62X0061
97THERMISTOR & CONN ASM
98HOUSING POWER MODULE
99COVER
110GEN WR02X4678
111GEN WR38X1425
113GEN WR02X7871
113GEN WR38X1517
151WR01X10623 GE Refrigerator Screw 8-18 AB IHXW 9/16 S
153WR1X1505D GE Refrigerator Screw Package of 12
154GEN WR01X1765
175SCREW SW. CRADLE
178GEN WR02X6058
179SCREW
257WR9X502 GE Refrigerator Defrost Timer
580GEN WZ02X0561
581WZ4X44D GE Screw Package
764GEN WR02X8222
825GEN WR23X0305
900GEN WR78X8284
900GEN WR78X8283
900GEN WR78X8282
