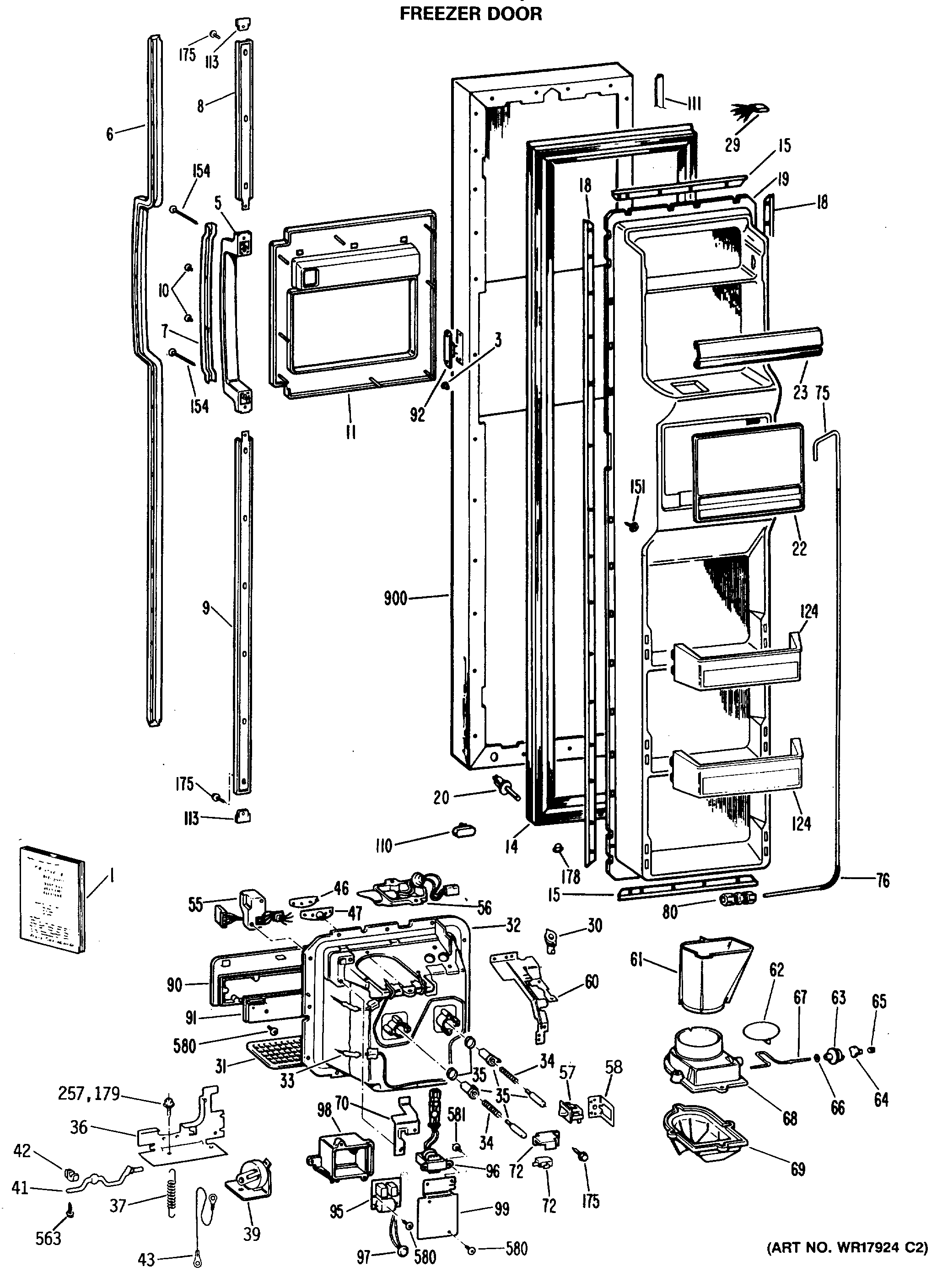

TFE27FRAWH FREEZER DOOR

TFE27FRAWH FREEZER DOOR

Written by

in

TFE27FRAWH FREEZER DOOR

Products

Position	Product
1	GEN 49-6672
3	GEN WR02X3757
5	GEN WR12X0618
6	GEN WR12X0619
7	GEN WR12X0620
8	GEN WR12X0617
9	GEN WR12X0616
10	GEN WR01X1766
11	GEN WR01X5469
11	GEN WR38X1314
14	SCREW FAN MTR/BRKT
14	GEN WR24X0447
15	GEN WR17X1167
18	GEN WR17X2092
19	GEN WR77X0504
20	GEN WR23X0360
22	GEN WR17X2920
23	GEN WR71X2233
29	GEN WR49X0308
29	HARNESS- O DOOR RECESS
30	GROMMET WATER FILL RECES
31	GEN WR02X3953
32	RECESS DISPENSER(BLACK)
33	GEN WR51X0348
34	SPRING-RECESS DUCT
35	GEN WR02X6325
35	PLUNGER SCW & SLEEVE
35	GEN WR01X1824
36	GEN WR02X8414
37	GEN WR02X8403
39	GEN WR09X0462
41	GEN WR17X2820
42	GEN WR02X4234
43	WR2X8441 GE Refrigerator Lanyard Assembly
45	SCREW
46	GEN WR02X8471
47	GEN WR02X3948
55	HARNESS & HOUSING-RECESS
56	LAMP 7C7
56	INSULATOR HOUSING
56	GEN WR02X7910
57	GEN WR23X0361
58	GEN WR02X8496
60	GEN WR02X7244
61	GEN WR17X2093
62	DUCT DOOR W/O LEVER
63	PULLEY TIME DELAY
64	ARM TIME DELAY DISPLAY
64	GEN WZ05X0194
65	WZ4X230D GE Screw Package 12
65	RING COMPRESSION
66	WASHER
67	CRANK DOOR DUCT DISP
68	GASKET DUCT-L. SIDE
68	DUCT RECESS
68	GASKET DUCT-R. SIDE
69	GEN WR17X5881
72	GEN WR02X7942
72	SWITCH SELECT-CUBES DISP
75	GEN WR17X1408
76	GEN WR02X4633
80	GEN WR02X4265
80	WR02X11330 GE Refrigerator 5/16 Union Water Line Connector
87	WZ4X241D GE Screw Package
90	GEN WR55X0024
91	BOARD ASM LOGIC
91	GEN WR02X7314
91	GEN WR02X7313
92	GEN WR23X0346
95	BOARD ASM POWER SUPPLY
96	GEN WR62X0061
97	THERMISTOR & CONN ASM
98	HOUSING POWER MODULE
99	COVER
110	GEN WR02X4678
111	GEN WR38X1437
113	GEN WR02X7871
113	GEN WR38X1517
121	GEN WR01X1703
124	GEN WR71X2271
151	WR01X10623 GE Refrigerator Screw 8-18 AB IHXW 9/16 S
153	WR1X1505D GE Refrigerator Screw Package of 12
154	GEN WR01X1765
175	SCREW SW. CRADLE
178	GEN WR02X6058
257	WR9X502 GE Refrigerator Defrost Timer
276	GEN WR01X1510
461	GEN WZ06X0136
562	GEN WX05X0558
562	GEN WB17X5054
580	GEN WZ02X0561
584	GEN WZ02X0509
621	GEN WR02X4495
676	WD2X5166 GE Dishwasher Screw
680	WR1X1850 GE Refrigerator Screw
689	GEN WR01X1598
690	WZ5X158D GE Screw Package of 12
691	GEN WX02X0560
692	SCREW
782	WB17X5060 GE Oven Block Assembly
788	GEN WB17X5079
900	GEN WR78X8413
1458	GEN WB17X5
