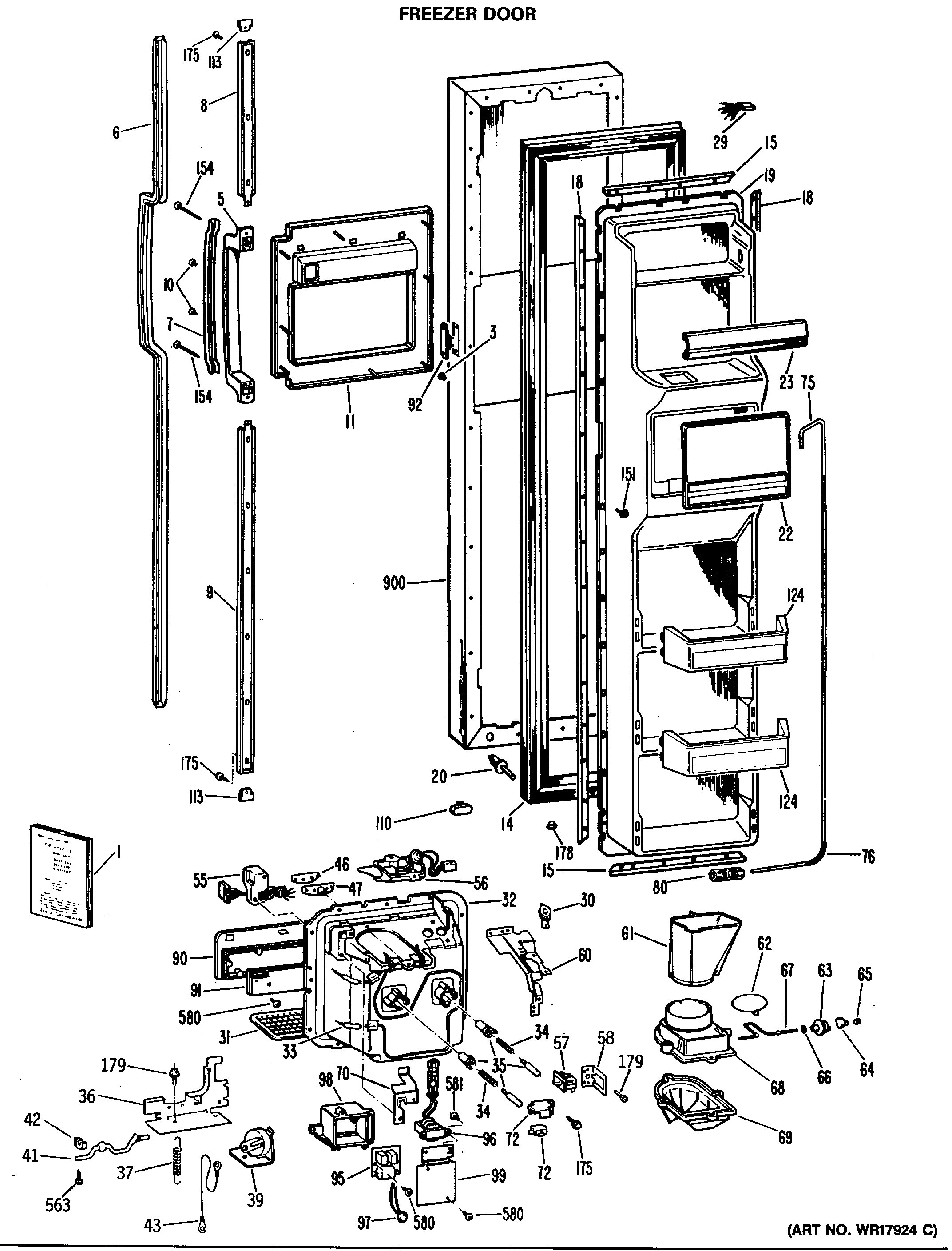

TFEW27FMA FREEZER DOOR

TFEW27FMA FREEZER DOOR

Written by

in

TFEW27FMA FREEZER DOOR

Products

PositionProduct
1GEN 49-6672
3GEN WR02X3757
5GEN WR12X0618
6GEN WR12X0738
7GEN WR12X0620
8GEN WR12X0617
9GEN WR12X0616
10GEN WR01X1766
11GEN WR38X1359
11GEN WR01X5469
14GEN WR24X0447
15GEN WR17X1167
18GEN WR17X2092
19GEN WR77X0504
20GEN WR23X0161
22GEN WR17X2911
23GEN WR17X2584
29HARNESS- O DOOR RECESS
29GEN WR49X0308
30GROMMET WATER FILL RECES
31GEN WR02X8190
32GEN WR14X0403
32GEN WR17X2912
33GEN WR51X0337
34SPRING-RECESS DUCT
35PLUNGER SCW & SLEEVE
36GEN WR02X8414
37GEN WR02X8403
39GEN WR09X0506
41GEN WR17X2820
42GEN WR02X4234
43WR2X8441 GE Refrigerator Lanyard Assembly
46GEN WR02X8470
47GEN WR02X3948
55HARNESS & HOUSING-RECESS
56INSULATOR HOUSING
56GEN WR02X7910
56LAMP 7C7
57SWITCH-CRADLE-WATER SIDE
58GEN WR02X8496
60GEN WR02X7244
61GEN WR17X2093
62DUCT DOOR W/O LEVER
63PULLEY TIME DELAY
64ARM TIME DELAY DISPLAY
65RING COMPRESSION
66WASHER
67CRANK DOOR DUCT DISP
68DUCT RECESS
68GASKET DUCT-R. SIDE
68GASKET DUCT-L. SIDE
69SHIELD FUNNEL ASSY DISPL
72SWITCH SELECT-CUBES DISP
72GEN WR02X7942
75GEN WR17X1408
76GEN WR02X4633
80GEN WR02X4265
80GEN WR02X8473
90GEN WR55X0026
91GEN WR02X7314
91BOARD ASM LOGIC
91GEN WR02X7313
92SENSOR DOOR FF & FZ
95BOARD ASM POWER SUPPLY
96GEN WR62X0061
97THERMISTOR & CONN ASM
98HOUSING POWER MODULE
99COVER
110GEN WR02X4678
113GEN WR02X7871
113GEN WR38X1557
124GEN WR71X2105
151WR01X10623 GE Refrigerator Screw 8-18 AB IHXW 9/16 S
153WR1X1505D GE Refrigerator Screw Package of 12
154GEN WR01X1765
175SCREW SW. CRADLE
178GEN WR02X6058
179SCREW
375GEN WR23X0194
376GEN WR23X0189
407GEN WR32X0997
436GEN WR02X7736
483GEN WR38X1711
483GEN WR38X1732
563WZ4X241D GE Screw Package
580GEN WZ02X0561
581WZ4X44D GE Screw Package
764GEN WR02X8222
900GEN WR78X7819
