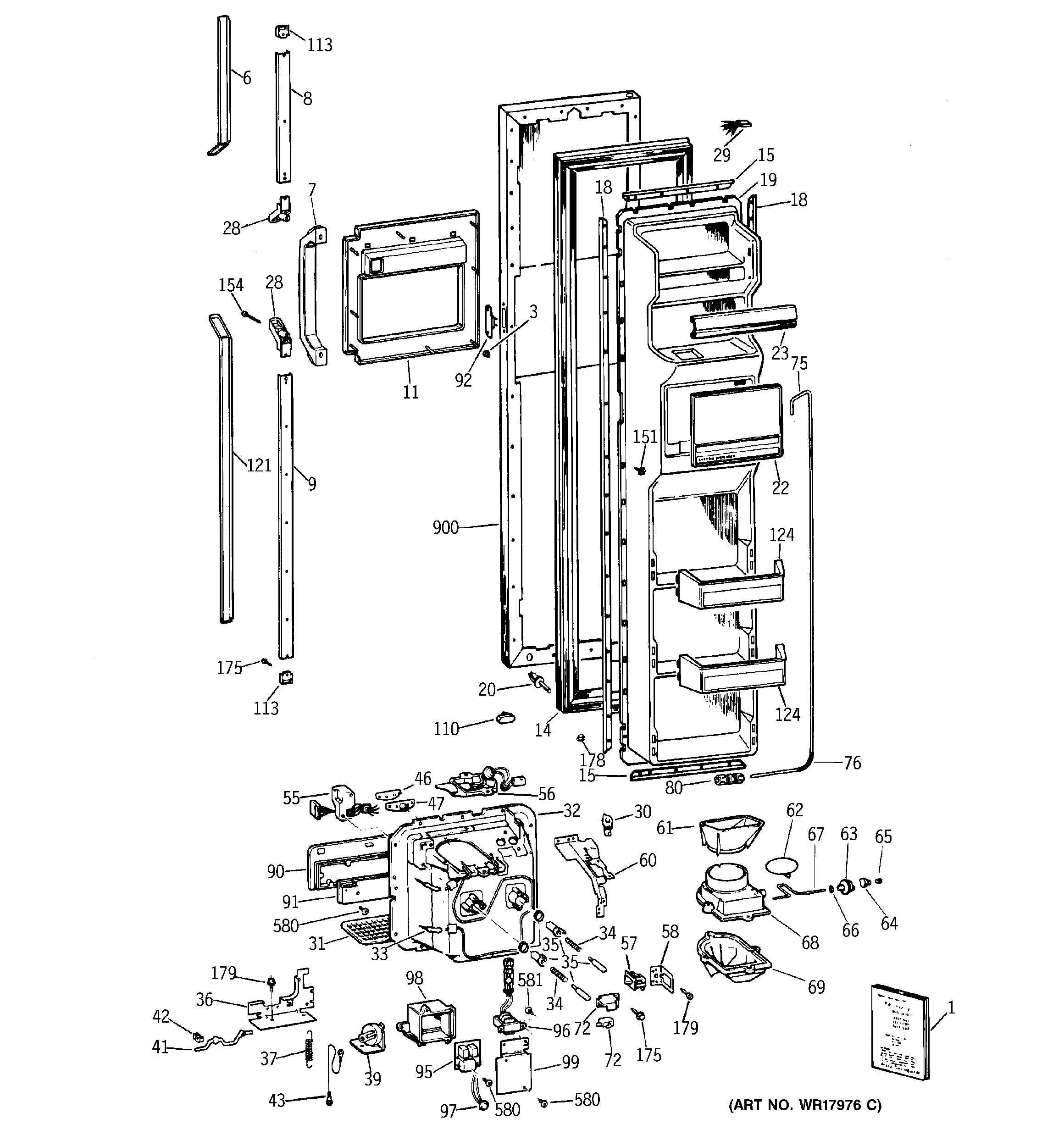

TFEW27FRAWH FREEZER DOOR

TFEW27FRAWH FREEZER DOOR

Written by

in

TFEW27FRAWH FREEZER DOOR

Products

PositionProduct
1GEN 49-6672
3GEN WR02X3757
6GEN WR12X0853
7GEN WR12X0852
8GEN WR12X0617
9GEN WR12X0616
11GEN WR38X1359
11GEN WR01X5469
14GEN WR24X0447
14SCREW FAN MTR/BRKT
15GEN WR17X1167
18GEN WR17X2092
19GEN WR77X0504
20GEN WR23X0360
22GEN WR17X2920
23GEN WR17X2980
28GEN WR02X8576
29GEN WR49X0308
29HARNESS- O DOOR RECESS
30GROMMET WATER FILL RECES
31GEN WR02X3953
32GEN WR17X2912
33GEN WR51X0348
34SPRING-RECESS DUCT
35PLUNGER SCW & SLEEVE
35GEN WR01X1824
36GEN WR02X8414
37GEN WR02X8403
39GEN WR09X0462
41GEN WR17X2820
42GEN WR02X4234
43WR2X8441 GE Refrigerator Lanyard Assembly
46PAD CRADLE
47GEN WR02X3948
55HARNESS & HOUSING-RECESS
56GEN WR02X7910
56INSULATOR HOUSING
56LAMP 7C7
57GEN WR23X0361
58GEN WR02X8496
60GEN WR02X7244
61GEN WR17X2093
62DUCT DOOR W/O LEVER
63PULLEY TIME DELAY
64GEN WZ05X0194
64ARM TIME DELAY DISPLAY
65RING COMPRESSION
65WZ4X230D GE Screw Package 12
66WASHER
67CRANK DOOR DUCT DISP
68GASKET DUCT-R. SIDE
68DUCT RECESS
68GASKET DUCT-L. SIDE
69SHIELD FUNNEL ASSY DISPL
72GEN WR02X7942
72SWITCH SELECT-CUBES DISP
75GEN WR17X1408
76GEN WR02X4633
80GEN WR02X4265
80WR02X11330 GE Refrigerator 5/16 Union Water Line Connector
90GEN WR55X0039
91GEN WR02X7314
91GEN WR02X7313
91BOARD ASM LOGIC
92GEN WR23X0346
95BOARD ASM POWER SUPPLY
96GEN WR62X0061
97THERMISTOR & CONN ASM
98HOUSING POWER MODULE
99COVER
110GEN WR02X4678
113GEN WR38X1557
113GEN WR02X7871
121GEN WR12X0849
121GEN WR01X1703
124GEN WR71X2105
151WR01X10623 GE Refrigerator Screw 8-18 AB IHXW 9/16 S
154GEN WR01X1765
175GEN WR02X8580
175SCREW SW. CRADLE
178GEN WR02X6058
580GEN WZ02X0561
900GEN WR78X8476
