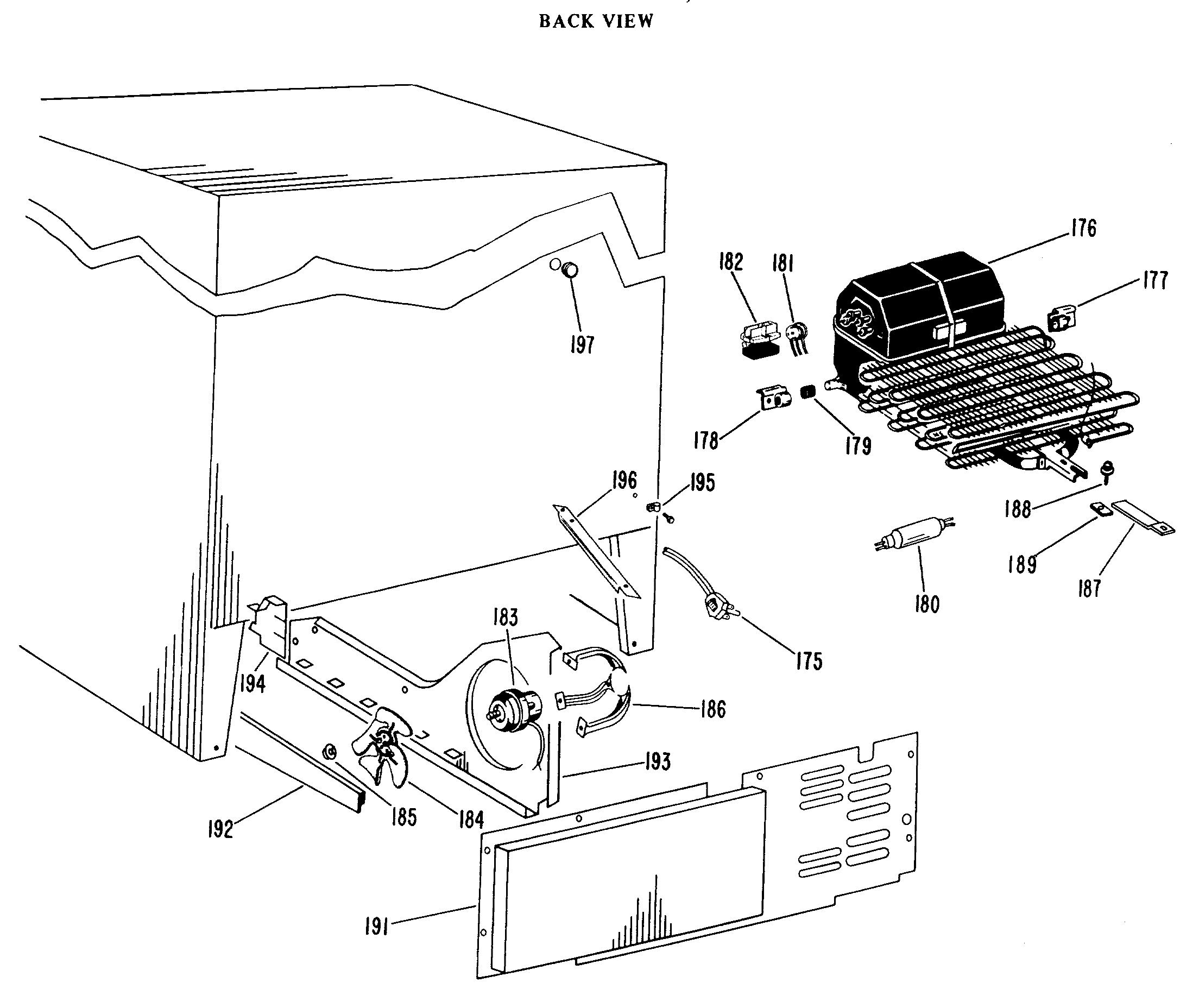

TFF18DMB BACK VIEW

TFF18DMB BACK VIEW

Written by

in

TFF18DMB BACK VIEW

Products

PositionProduct
175WR23X10300 GE Refrigerator Power Cord Assembly
176WR87X10082 GE Refrigerator Compressor Replacement Kit
177GEN WR02X3734
178GEN WR02X3735
179SLEEVE COMP MTG
180WR86X25269 GE Refrigerator R134 Dryer
182GEN WR02X3583
182GEN WR07X0124
183WR60X177 GE Condenser Fan Motor
184GEN WR60X0042
185GEN WR01X1308
186BRACKET – MOUNTING
186SCREW – MOUNTING
186GEN WR02X4191
187GEN WR02X3629
187GEN WR01X1194
188GEN WZ06X0080
189NUTSTRIP COMP MTG D/J
191WD2X5166 GE Dishwasher Screw
191COVER – ACCESS
192BAFFLE AIR EXTN BTM
193GEN WR17X0995
194CLIP
194GEN WR02X4477
195GEN WR01X1378
195WR1X5278 GE Refrigerator Cable Clamp
196WZ4X345D GE Screw Package 12 C92
196GEN WR02X4446
196GEN WR00X0008
197PLUG BTN (.875 DIA.HOLE)
