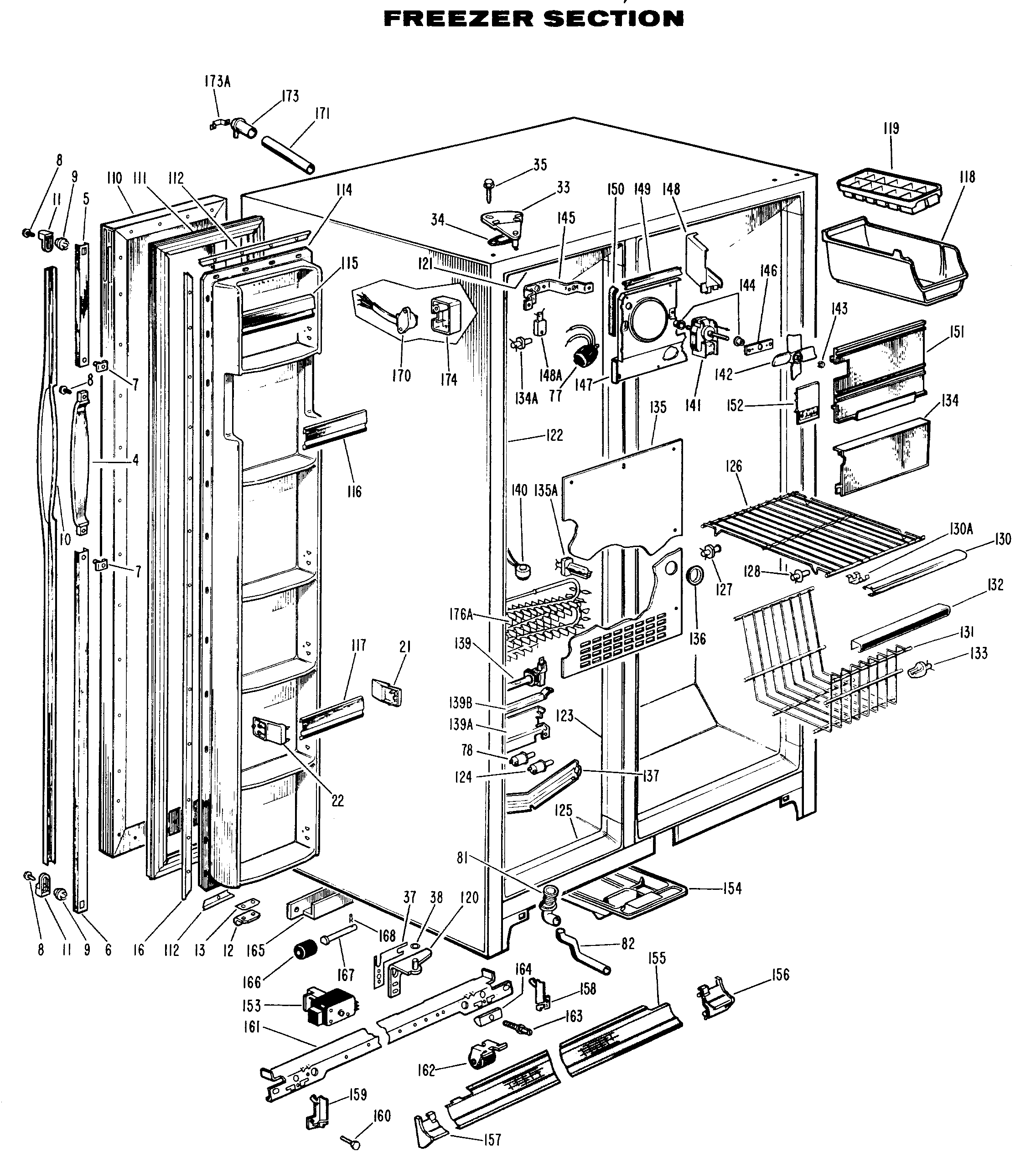

TFF18DMB FREEZER SECTION?

TFF18DMB FREEZER SECTION?

Written by

in

TFF18DMB FREEZER SECTION?

Products

PositionProduct
4GEN WR12X0317
5GEN WZ09X0013
6GEN WR12X0343
7GEN WR01X1246
8GEN WZ05X0166
9GEN WR01X1247
9SCR 10-12 BAT HXW 1 S
10GEN WR12X0364
11GEN WR12X0320
12DOOR STOP – BOTH DOORS
13SHIM – STOP
13GEN WR01X1382
16GEN WR17X1184
21GEN WR02X4072
22GEN WR02X4073
33HINGE – BOTH DOORS
33NUTSTRIP TOP HINGE
33GEN WR01X1343
34GEN WR02X4194
35GEN WR01X1249
37SHIM
37SCR 12-24 HXW 7/8 S PP
37WZ2X464D GE Screw
38GEN WR01X1114
77SOCKET LAMP
78SWITCH LIGHT
82GEN WR01X1470
82DRAIN TUBE EXTENSION – (
110GEN WR78X4402
110GEN WR78X4401
110GEN WR78X4400
110GEN WR78X4399
111GEN WR24X0248
112GEN WR17X1154
114SCREW SW. CRADLE
114GEN WR77X0260
115GEN WR71X1291
116GEN WR71X1290
117GEN WR71X1289
118GEN WR30X0152
119WR30X311 GE Refrigerator Ice Tray
120HINGE BTM. – FRZ. DOOR
120POP RIVET
120GEN WR02X4134
121CLIP
121GEN WR40X1500
122GEN WZ04X0240
122GEN WR01X1469
122GEN WR02X4424
122GEN WR40X1515
123GEN WR40X1517
123CLIP (EXPANSION) – BRKR.
124RECEPTACLE W/LEADS
124SWITCH – FAN – FRZ.
125GEN WR40X1502
126GEN WR71X1293
127GEN WR02X4419
128GEN WR02X4420
130GEN WR02X3440
131GEN WR21X0109
132TRIM – RACK
133GEN WR02X4476
134GEN WR02X4415
134GEN WR01X1326
134GEN WR17X1155
135GEN WR14X0239
135LINER SCREW
135GEN WR17X1190
135BRACKET EVAP. COVER & HT
135GEN WR02X4421
136GEN WZ06X0096
136GEN WR02X4440
137SCREW – SPACER
137GEN WR17X1164
137GEN WR02X4444
137GEN WR02X4443
139GEN WR02X4442
139GEN WR51X0183
139GEN WR02X4441
140WR50X60 GE Refrigerator Defrost Thermostat
141FAN MOTOR – EVAP.
143WR60X114 GE Refrigerator Evaporator Motor Fan Blade
144GEN WR02X2945
145GEN WR02X5678
146SCR 8-18 AB HX 3/8 S
146MOUNTING BRACKET – SMALL
147GEN WR11X1160
148GEN WR17X1161
149GEN WR14X0230
150GEN WR14X0231
151GEN WR17X1162
152SCREW – COVER TO CLIP
152GEN WR02X4438
152CLIP EVAP COVER
153SHIM HINGE BTM.
153BRACKET – CONTROL
