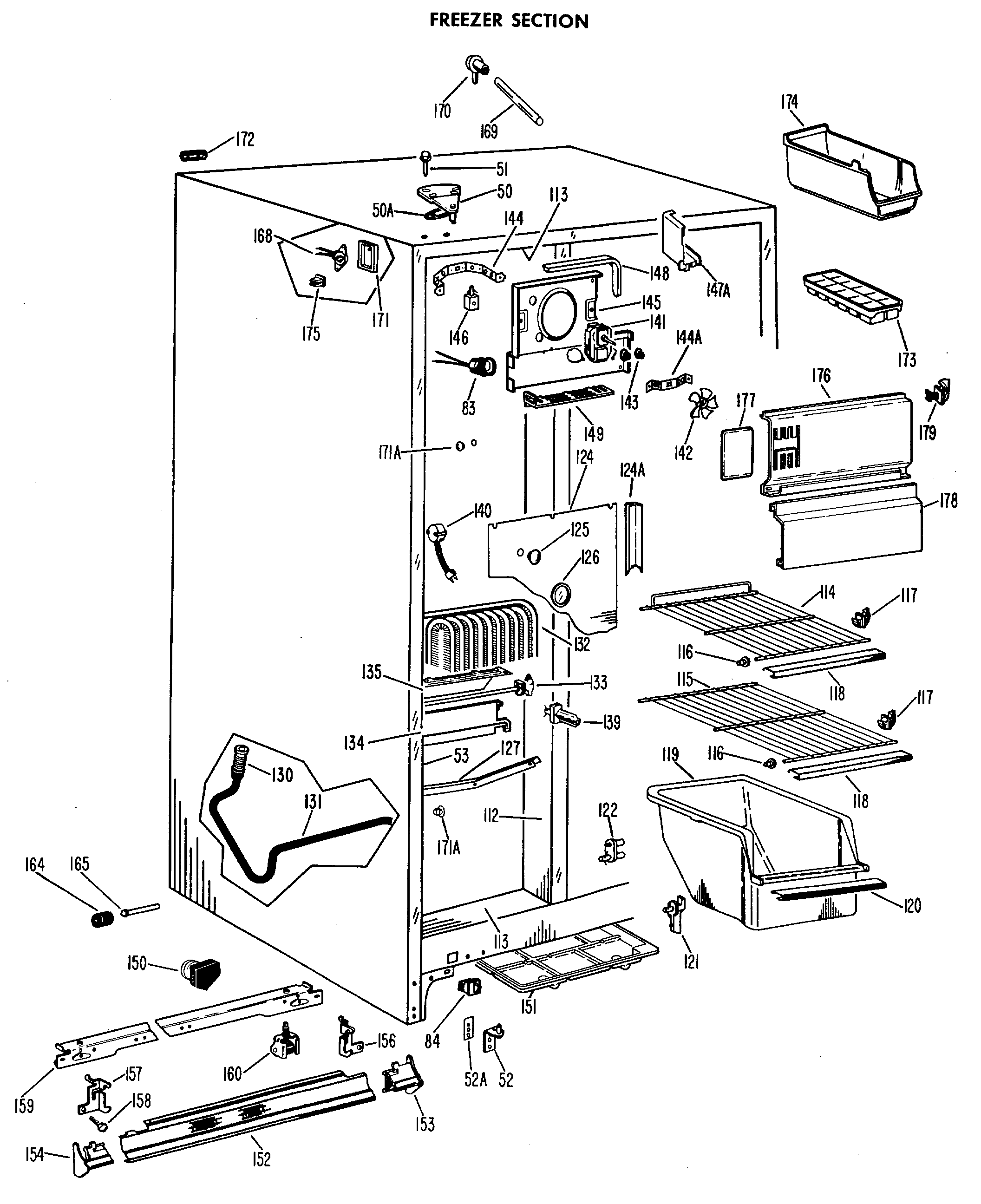

TFF19BAC FREEZER SECTION

TFF19BAC FREEZER SECTION

Written by

in

TFF19BAC FREEZER SECTION

Products

PositionProduct
50POP RIVET
50NUTSTRIP TOP HINGE
50HINGE TOP ASM
51GEN WR01X1249
52NUT STRIP
52WR49X5124 GE Refrigerator Hinge and Cam Assembly
52SCR 12-24 HXW 7/8 S PP
52SHIM
53GEN WR40X5373
83GEN WR02X4849
83SOCKET LAMP
84WR23X37285 GE Light Switch
112RETAINER BREAKER-BTM.
112BREAKER STRIP MULL SIDE-
113RETAINER BREAKER
113RETAINER BREAKER
113BREAKER STRIP-TOP & BTM.
113RETNR BRKR-TOP FF & FZ
114SHELF FZ
115SHELF FZ-BTM.
116GEN WR02X4676
117GEN WR02X4674
118GEN WR38X5180
118GEN WR02X5008
119BASKET FRZ
120TRIM HANDLE
121GEN WR02X7036
122GEN WR02X4548
124CLIP EVAP COVER
124GEN WR17X5901
124GEN WR14X0274
124SCR 8-32 T TR 1/2 SS XTW
124GEN WZ06X0107
125PLUG HOLE
126PLUG RECESSED
130GEN WR02X4967
131GEN WR02X4838
131GEN WR01X5042
131DRAIN TUBE EXTENSION
132REFRIGERANT 6.5 OZ.
132LOW SIDE ASM
133GEN WR51X0231
134BRACKET DEF HTR
135GEN WR02X4971
135SHIELD DEF HTR END
135GEN WR02X4546
139GEN WR02X4421
140WR50X55 GE Refrigerator Defrost Thermostat 55 Degree with Clip
141GEN WR60X0108
142WR60X114 GE Refrigerator Evaporator Motor Fan Blade
143GEN WR02X2945
144BRACKET EVAP FAN
144BRACKET EVAP FAN
144LINER SCREW
145GEN WR02X1413
146SCREW
146GEN WR02X2880
147GEN WR17X1414
148GEN WR14X0272
149GEN WR02X7042
149RIVET POP
150SPADE TERM. W/4" LEAD WIRE
150SCREW FAN MTR/BRKT
150WR9X482 GE Refrigerator Defrost Timer 8 Hour 30 Minute
150SCREW
150BRACKET DEF CONTROL
151GEN WR32X0687
152GEN WR74X0144
153GEN WR02X4668
154GEN WR02X4669
156GEN WR02X4098
157GEN WR02X4099
158GEN WR01X1194
159RAIL MACH MTG FRT
160WHEEL ASM FRT
164WR2X3594 GE Refrigerator Wheel
165GEN WR02X4742
168RECEPTACLE-ICEMAKER
168WZ4X241D GE Screw Package
169TUBE WATER FILL
170GROMMET WATER FILL
170GEN WR02X3248
171GEN WR02X4339
171GEN WR02X4632
171GEN WZ04X0244
171WR2X3139 GE Refrigerator Plug Button
172WR2X4097 GE Button Plug
173WR30X311 GE Refrigerator Ice Tray
174GEN WR30X0192
175GEN WR01X1510
175GEN WR01X1326
176SLIDE R/S MEAT PAN
