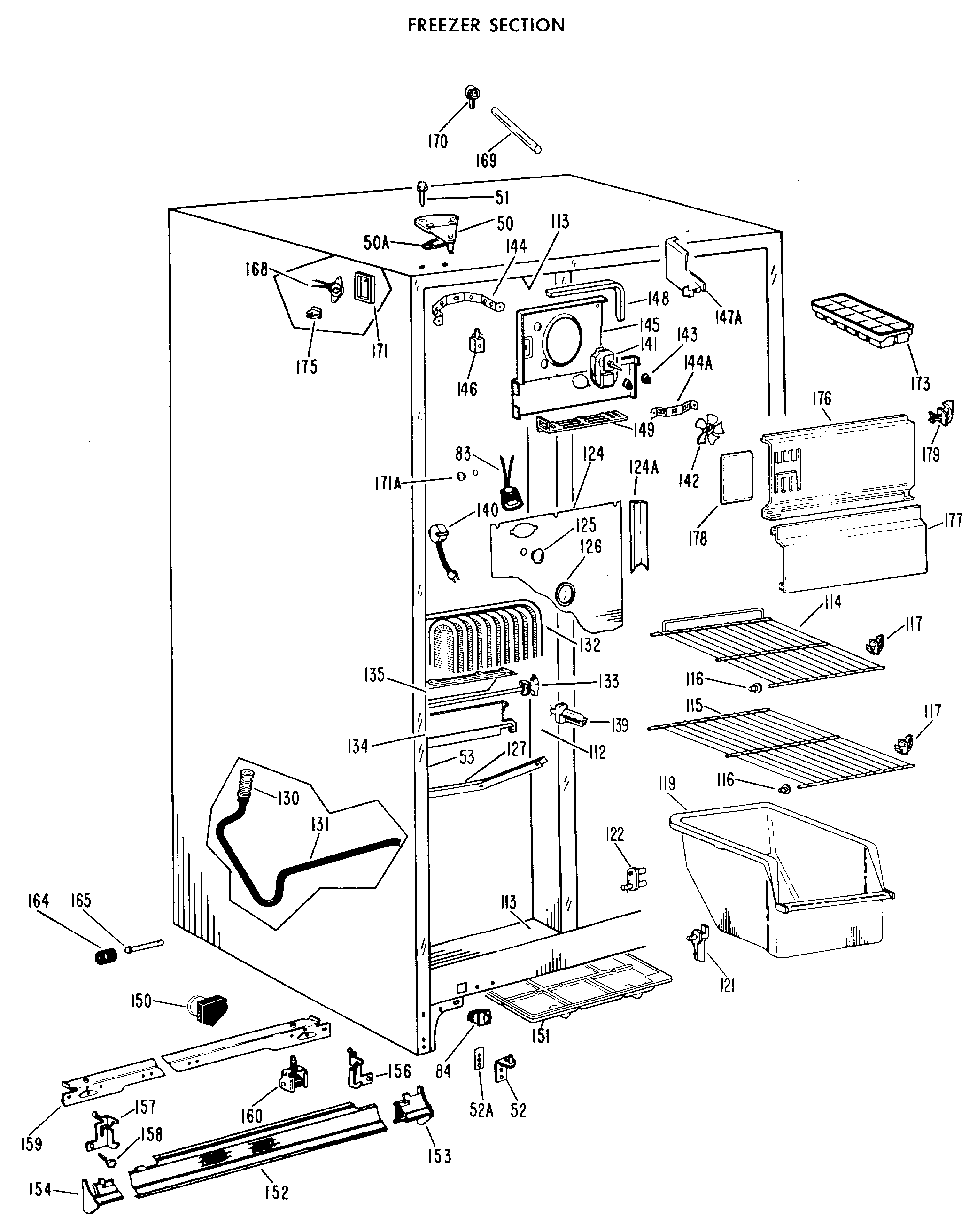

TFF19LAB FREEZER SECTION

TFF19LAB FREEZER SECTION

Written by

in

TFF19LAB FREEZER SECTION

Products

PositionProduct
50GEN WR02X4194
50HINGE TOP ASM
50NUTSTRIP TOP HINGE
51GEN WR01X1249
52WR49X5124 GE Refrigerator Hinge and Cam Assembly
52NUT STRIP
52SHIM HINGE BTM.
53BREAKER STRIP-HINGE SIDE
83GEN WR02X4849
83SOCKET LAMP
84WR23X37285 GE Light Switch
112BREAKER STRIP-FZ MULLION
112RETAINER BREAKER-BTM.
113RETAINER BREAKER
113BREAKER STRIP-TOP & BTM.
113RETNR BRKR-TOP FF & FZ
114SHELF FZ
115SHELF FZ-BTM.
116GEN WR02X4676
117GEN WR02X4674
119GEN WR21X5074
121GEN WR02X4191
122GEN WR02X4548
124SCR 8-32 T TR 1/2 SS XTW
124GEN WR17X5901
124GEN WR14X0274
124CLIP EVAP COVER
124GEN WZ06X0107
125PLUG HOLE
126PLUG RECESSED
127GASKET DRAIN TROUGH
127TROUGH DRAIN
130GEN WR02X4967
131GEN WR02X4838
131DRAIN TUBE EXTENSION
132LOW SIDE ASM
132REFRIGERANT 6 OZ.
132GEN WR02X4983
132GEN WR02X4982
133GEN WR51X0231
134BRACKET DEF HTR
135GEN WR02X4546
135GEN WR02X4971
135SHIELD DEF HTR END
139GEN WR02X4421
140WR50X55 GE Refrigerator Defrost Thermostat 55 Degree with Clip
141GEN WR60X0108
142WR60X114 GE Refrigerator Evaporator Motor Fan Blade
143GEN WR02X2945
144LINER SCREW
144BRACKET EVAP FAN
144BRACKET EVAP FAN
145GEN WR17X1413
146GEN WR02X2880
146SCREW
147GEN WR17X1414
148GEN WR14X0272
149RIVET POP
149GEN WR02X7042
150SCREW
150SCREW FAN MTR/BRKT
150SPADE TERM. W/4" LEAD WIRE
150BRACKET DEF CONTROL
150WR9X482 GE Refrigerator Defrost Timer 8 Hour 30 Minute
151GEN WR32X0687
152GEN WR74X0146
153GEN WR02X4668
154GEN WR02X4669
156GEN WR02X4098
157GEN WR02X4099
158GEN WR01X1194
159RAIL MACH MTG FRT
160WHEEL ASM FRT
164WR2X3594 GE Refrigerator Wheel
165GEN WR02X4742
168RECEPTACLE-ICEMAKER
168WZ4X241D GE Screw Package
169TUBE WATER FILL
170GROMMET WATER FILL
170GEN WR02X3248
171WR2X3139 GE Refrigerator Plug Button
171GEN WZ04X0244
171GEN WR02X4339
171GEN WR02X4632
173WR30X311 GE Refrigerator Ice Tray
175GEN WR01X1510
175GEN WR01X1326
176COVER FAN
177GEN WR17X1567
178GEN WR02X6254
179SHIM HINGE BTM.
