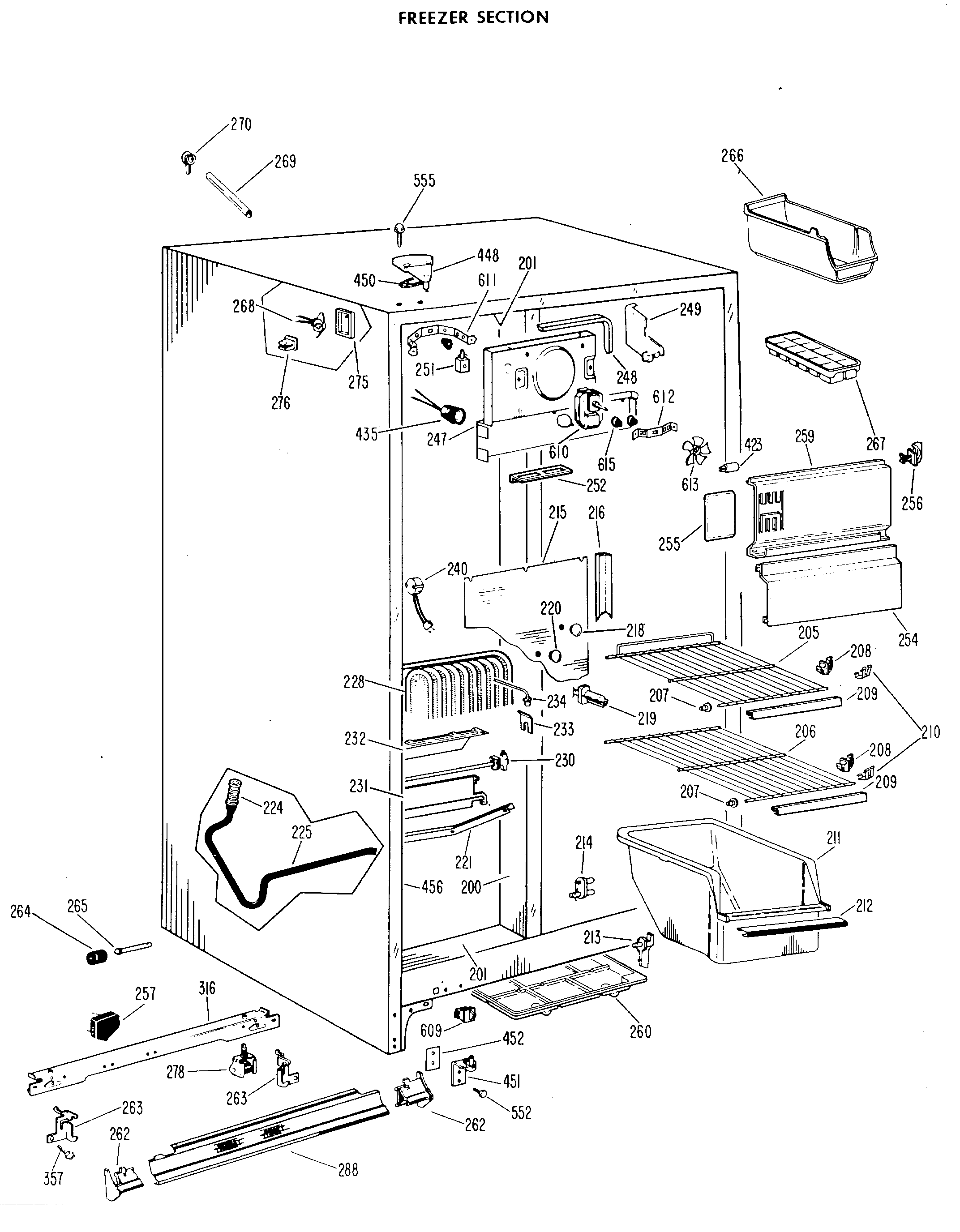

TFF20BAB FREEZER SECTION

TFF20BAB FREEZER SECTION

Written by

in

TFF20BAB FREEZER SECTION

Products

PositionProduct
200BREAKER STRIP-FZ MULLION
201GEN WR40X5171
203RETNR BRKR-TOP FF & FZ
204RETAINER BREAKER-BTM.
205SHELF FZ
206SHELF FZ-BTM.
207GEN WR02X4676
208GEN WR02X4674
209GEN WR38X5180
210GEN WR02X5008
211BASKET FRZ
212TRIM HANDLE
213GEN WR02X7036
214GEN WR02X4548
215GEN WR17X1566
216GEN WR14X0274
217CLIP EVAP COVER
218PLUG HOLE
219GEN WR02X4421
220PLUG RECESSED
221TROUGH DRAIN
223GASKET DRAIN TROUGH
224GEN WR02X4967
225DRAIN TUBE EXTENSION
227GEN WR02X4838
228LOW SIDE ASM
229REFRIGERANT 6.5 OZ.
229GEN WR02X4983
229GEN WR02X4982
230GEN WR51X0231
231BRACKET DEF HTR
232GEN WR02X4971
233SHIELD DEF HTR END
234GEN WR02X4546
240WR50X55 GE Refrigerator Defrost Thermostat 55 Degree with Clip
247GEN WR17X1413
248GEN WR14X0272
249GEN WR17X1414
251GEN WR02X2880
252GEN WR02X1042
253RIVET POP
254SHIELD LIGHT FZ.
255INSERT LIGHT SHIELD FZ.
256GEN WR02X4839
257WR9X482 GE Refrigerator Defrost Timer 8 Hour 30 Minute
258BRACKET DEF CONTROL
259COVER FAN
260GEN WR32X0687
261GEN WR02X4098
261GEN WR02X4099
262GEN WR02X4669
262GEN WR02X4668
264WR2X3594 GE Refrigerator Wheel
265GEN WR02X3598
265GEN WR02X4742
266GEN WR10X0192
266WR1X5278 GE Refrigerator Cable Clamp
267WR30X311 GE Refrigerator Ice Tray
268RECEPTACLE-ICEMAKER
269GEN WR02X4816
269TUBE WATER FILL
270GROMMET WATER FILL
270GEN WR02X3248
275GEN WR02X4319
276GEN WR01X1510
278WHEEL ASM FRT
288GEN WR74X0146
316RAIL MACH MTG FRT
325GEN WR02X4396
563WZ4X241D GE Screw Package
565SCR 8-32 T TR 1/2 SS XTW
565POP RIVET
571GEN WZ04X0247
603WR1X1591 GE Refrigerator Screw
609WR23X37285 GE Light Switch
610GEN WR60X0108
611BRACKET EVAP FAN
612BRACKET EVAP FAN
613WR60X114 GE Refrigerator Evaporator Motor Fan Blade
615GEN WR02X2945
652GEN WR02X4191
677GEN WR01X1467
680GEN WR01X1546
686WZ5X158D GE Screw Package of 12
687SCREW 6-18 X 1/2" ROUND
739WR2X7064 GE Refrigerator Condenser Clip
9999PM GUIDE OWNERS
