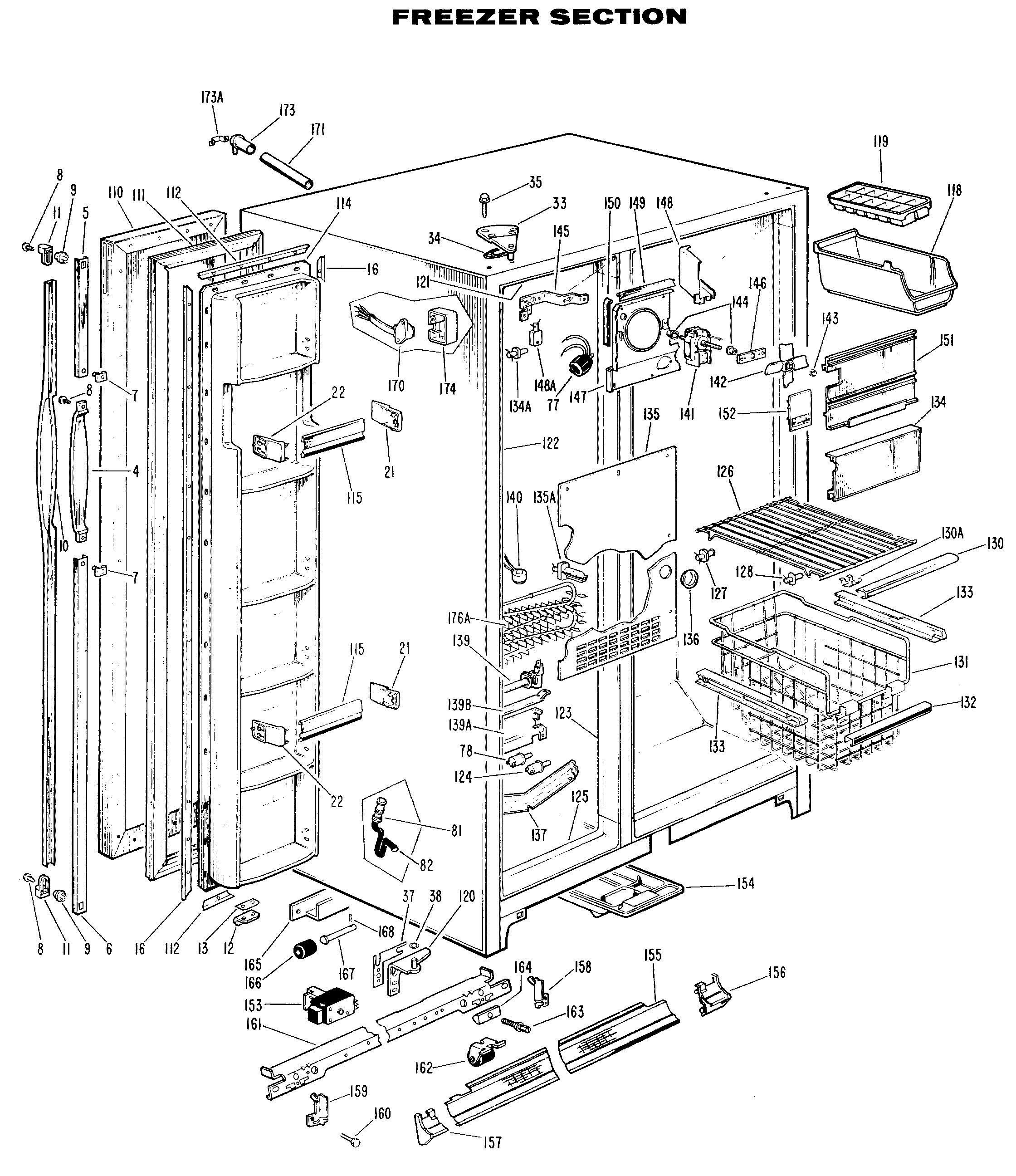

TFF20DMB FREEZER SECTION

TFF20DMB FREEZER SECTION

Written by

in

TFF20DMB FREEZER SECTION

Products

PositionProduct
4GEN WR12X0317
5GEN WZ09X0013
6GEN WR12X0357
7GEN WR01X1246
8GEN WZ05X0166
9SCR 10-12 BAT HXW 1 S
9GEN WR01X1247
10GEN WR12X0358
11GEN WR12X0320
12DOOR STOP – BOTH DOORS
13SHIM – STOP
13GEN WR01X1382
16RETAINER SIDES
21GEN WR02X4072
22GEN WR02X4073
33GEN WR01X1343
33NUTSTRIP TOP HINGE
33HINGE – BOTH DOORS
34GEN WR02X4194
35GEN WR01X1249
37SCR 12-24 HXW 7/8 S PP
37SHIM
37WZ2X464D GE Screw
38GEN WR01X1114
77SOCKET LAMP
78SWITCH LIGHT
81GEN WR02X4432
81GEN WR02X4486
82DRAIN TUBE EXTENSION – (
82GEN WR01X1470
110GEN WR78X4371
110GEN WR78X4369
110GEN WR78X4372
110GEN WR78X4370
111GEN WR24X0245
112GEN WR17X1154
114SCREW SW. CRADLE
114GEN WR77X0253
115GEN WR71X5675
118GEN WR30X0152
119WR30X311 GE Refrigerator Ice Tray
120HINGE BTM. – FRZ. DOOR
121CLIP
121GEN WR40X1500
122GEN WR40X1496
122GEN WZ04X0240
122GEN WR02X4424
122GEN WR01X1469
123GEN WR40X1498
123CLIP (EXPANSION) – BRKR.
124SWITCH – FAN – FRZ.
124RECEPTACLE W/LEADS
125GEN WR40X1502
126GEN WR71X5614
127GEN WR02X4419
128GEN WR02X4420
130TRIM – RACK
130GEN WR02X3440
131GEN WR21X0107
132GEN WR12X0416
133GEN WZ04X0244
133GEN WR02X3546
133SLIDE (LH) – BASKET
133SLIDE (RH) – BASKET
134GEN WR02X4415
134GEN WR17X1155
134GEN WR01X1326
135GEN WR17X1163
135BRACKET EVAP. COVER & HT
135LINER SCREW
135GEN WR02X4421
135GEN WR14X0232
136GEN WZ06X0096
136GEN WR02X4440
137SCREW – SPACER
137GEN WR02X4443
137GEN WR02X4444
137GEN WR17X1164
139GEN WR02X4442
139GEN WR51X0183
139GEN WR02X4441
140WR50X60 GE Refrigerator Defrost Thermostat
141FAN MOTOR – EVAP.
143WR60X114 GE Refrigerator Evaporator Motor Fan Blade
144GEN WR02X2945
145GEN WR02X5678
146MOUNTING BRACKET – SMALL
146SCR 8-18 AB HX 3/8 S
149GEN WR14X0230
150GEN WR14X0231
151GEN WR17X1162
152SCREW – COVER TO CLIP
152GEN WR02X4438
152CLIP EVAP COVER
153SHIM HINGE BTM.
153BRACKET – CONTROL
