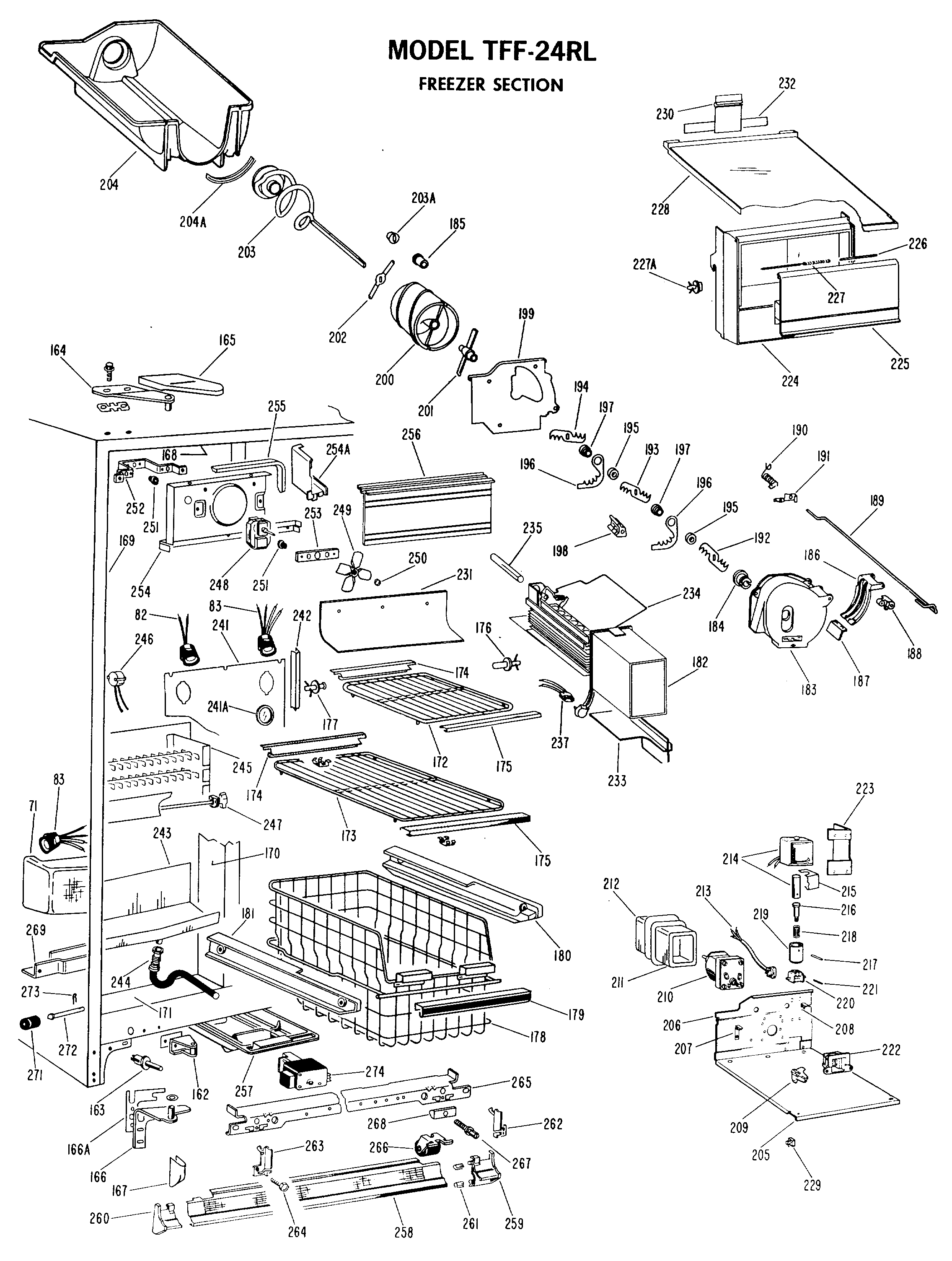

TFF24RLB FREEZER SECTION

TFF24RLB FREEZER SECTION

Written by

in

TFF24RLB FREEZER SECTION

Products

Position	Product
71	LIGHT SHIELD – LOWER – F
82	LINER SCREW
82	GEN WR01X2257
82	BRACKET – LIGHT
83	GEN WR02X2539
162	GEN WR02X3890
162	GEN WR10X0122
162	SCREW 10-16 X 3/4" TRUSS
162	GEN WR02X3889
163	SWITCH – FAN & LIGHT – F
164	GEN WR01X1249
164	GEN WR49X0199
164	GEN WR13X0452
164	GEN WR02X3845
165	GEN WR02X3961
165	GEN WR02X3962
165	SCR 8-32 MA TR 1/4 SS
166	SHIM
166	HINGE – BTM. – FRZ. – DO
166	SCR 12-24 HXW 7/8 S PP
166	GEN WR01X1327
166	GEN WR02X4205
166	GEN WR02X0460
166	GEN WR02X4134
166	POP RIVET
167	GEN WR01X1328
167	GEN WR02X3963
168	GEN WR40X1429
169	GEN WR40X1430
170	GEN WR40X1431
171	GEN WR40X1432
171	CLIP
172	GEN WR71X1131
173	GEN WR71X1132
174	GEN WR38X0800
175	GEN WR38X0787
175	SUPPORT – FRONT R5. & RE
176	GEN WR02X3872
176	CIIP – TRIM
176	GEN WR02X3246
178	GEN WR21X0104
179	GEN WR02X3440
179	GEN WR38X0801
180	SLIDE (RH) – BASKET
181	GEN WZ04X0244
181	GEN WR01X1166
181	SLIDE (LH) – BASKET
182	GEN WZ04X0331
182	SCREW – PAN HEAD RECESS
182	GEN WR01X1326
182	GEN WR02X3660
182	GEN WR30X0149
183	WR17X2061 GE Refrigerator Crush Dispenser
183	GEN WZ05X0194
184	GEN WR01X1366
184	WR1X1367D GE Refrigerator Return Package 12
184	GEN WR01X1362
185	BUSHING HELIX DISP
186	WR2X4143 GE Refrigerator Pivot
186	GEN WR17X1010
187	EXTENSION – DEFLECTOR
188	GEN WR02X4146
188	GEN WR01X1363
188	GEN WR17X1012
189	GEN WR01X1365
189	GEN WR01X1364
189	GEN WR17X1011
190	GEN WR02X4145
191	WZ4X230D GE Screw Package 12
191	GEN WR02X4251
192	WR17X1363 GE Refrigerator Blades Moving Display
193	WR17X1362 GE Refrigerator Middle Blade
194	WR17X1361 GE Refrigerator Blades Moving Display
195	GEN WR02X4139
196	GEN WR17X1009
197	WR2X4138 GE Refrigerator Spacer
198	WR2X4140 GE Refrigerator Blade Rest
199	GEN WR02X4148
199	GEN WR17X1056
200	HELIX FRONT DISP
201	BLADE HELIX DISP
202	GEN WR02X4137
203	GEN WR17X1034
204	GEN WR30X0155
204	WR2X7905 GE Refrigerator Bucket Seal
205	SHELF ICE BUCKET
206	RIVET POP
206	GEN WR71X1256
207	GEN WR02X4252
208	GEN WR02X4253
208	SCREW – RETAINER
209	WR2X4550 GE Refrigerator Drive Cup
210	MOTOR CRUSHER DISP
211	GEN WR17X1061
211	GEN WZ06X0100
212	GEN WR02X4254
212	GEN WR17X1062
212	GEN WR02X4255
213	GEN WR23X0141
214	SHIM HINGE BTM.
